Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Mini M.2 NVMe 2230 SSD casing
- Easy to transport, immediately ready to use
Technical specifications
- Plug & Play: Yes
- Socket M-Key
- Cooling: Passive
- Adapter cable: Yes
- Cable length: 30 cm
- Product type
M.2 SSD enclosure
- HDD connection
M.2 PCIe NVMe
- Compatible with
2230
- Interfaces
USB C® (USB 3.2 2nd gen)
- Transfer rate
10 GBit/s
- Power supply (LOV)
via USB
- Features
Hot swappable
- Storage media features
UASP support
- Material
Metal
- Factory colour
Black
- Width
66 mm
- Height
15 mm
- Depth
45 mm
- Dim
(W x H x D) 66 x 15 x 45 mm
- Weight
0.063 kg
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3778977 ICY BOX IB-1601MP-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230 61175
User & Safety Instructions
User & Safety Instructions 3778977 ICY BOX IB-1601MP-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230 61175
Description

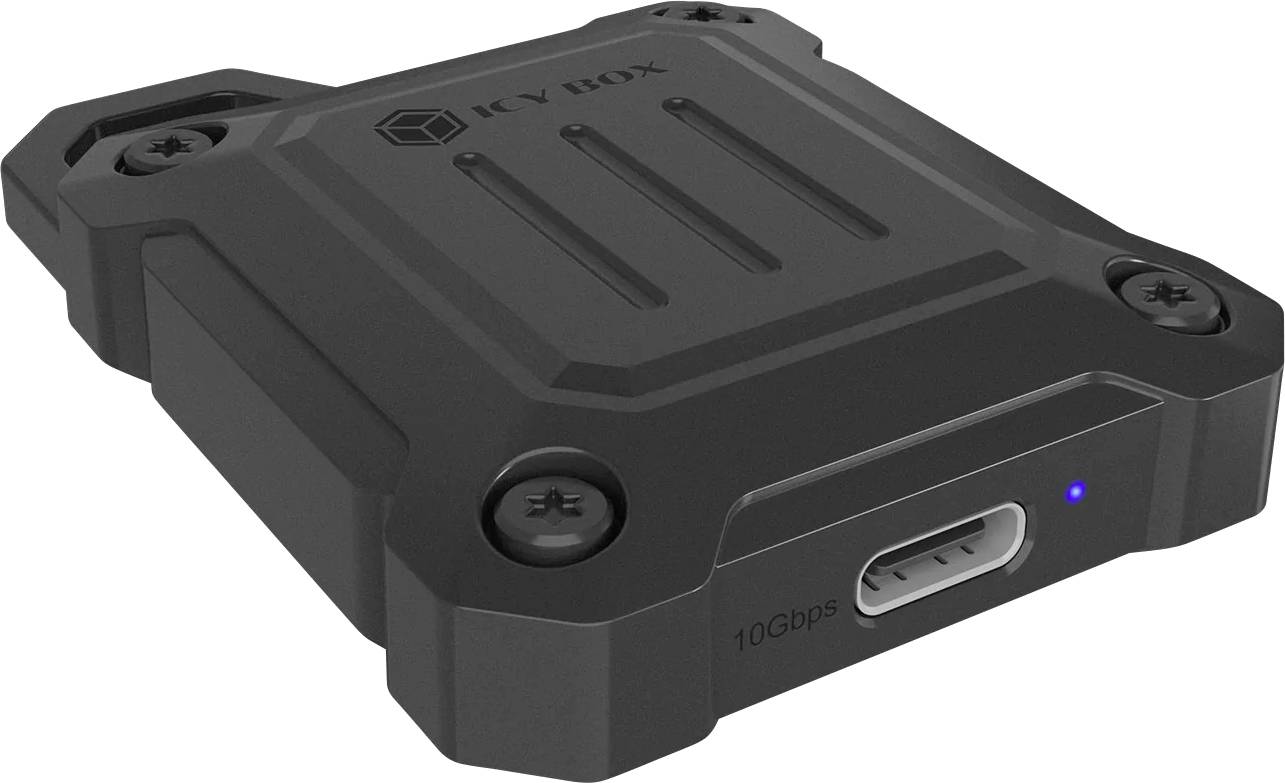

Robust and durable
Made of zinc alloy and securely screwed housing offers long durability and shock resistance. It protects your M.2-SSD, so that you can take your data safely with you everywhere.
Easy to transport, immediately ready to use
With its compact shape and the accompanying carry strap this casing is designed for mobility. Put it in your bag or in your backpack and your storage solution is always within reach.
Designed for speed
The USB 3.2 Gen 2 Type-C® connection offers transfer rates of up to 10 Gbps. Move large files, back up your data or work quickly and efficiently with high-resolution media.
Mini M.2 travel light
The housing is designed for a 2230 M.2 NVMe SSD, which ensures minimalism without loss of performance. It is the ideal option if you need reliable storage in a light, travel-friendly format.
Always stay cool

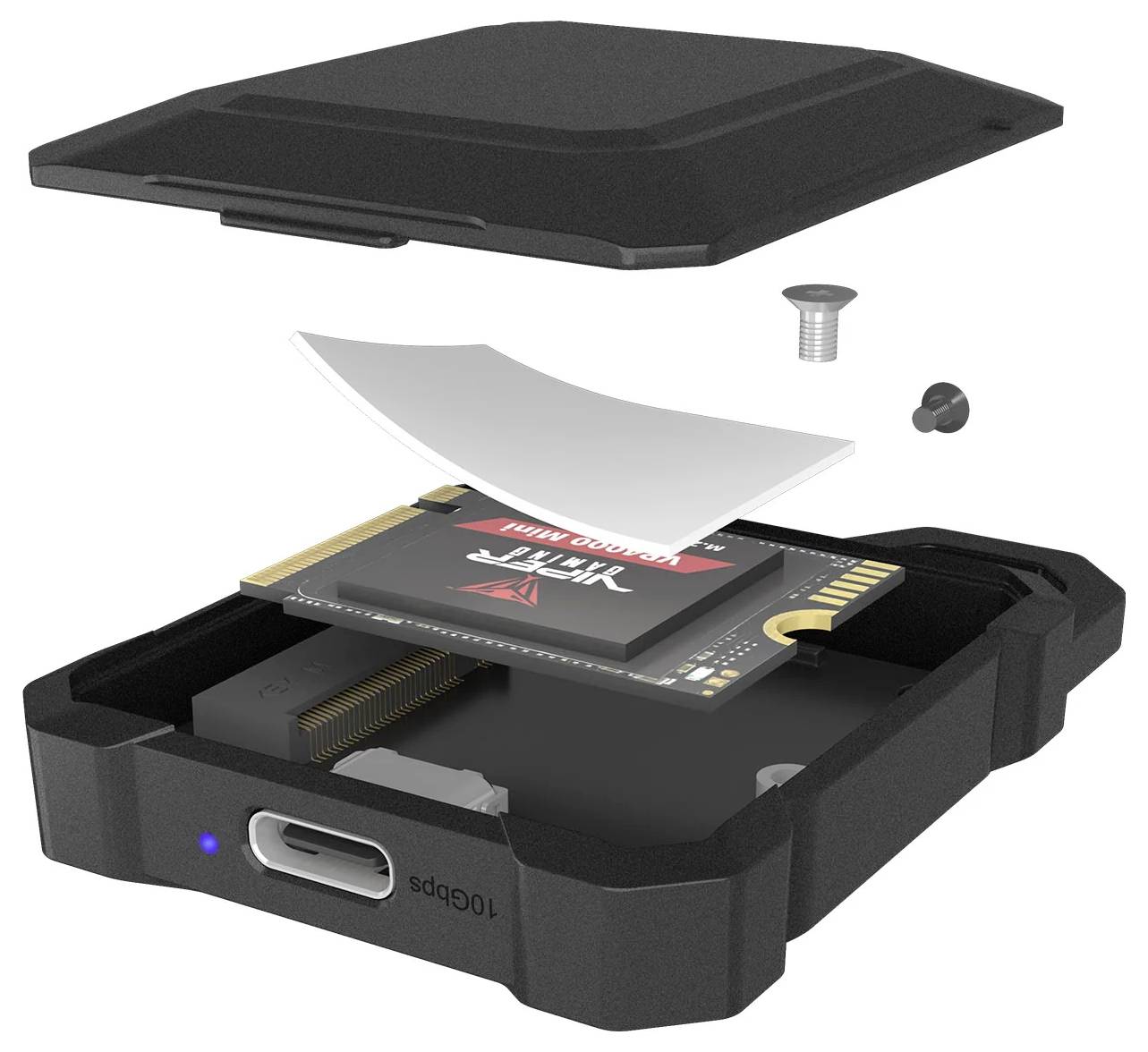

Together with the robust metal housing, the included heat transfer pad provides excellent heat dissipation during intensive use. Thus the performance of the drive remains stable even when transferring large quantities of data.
This text is machine translated.
Features
- USB 3.2 Gen 2 Type-C® host port with a transfer rate
- Of up to 10 Gbps
Scope of delivery
- 1X IB-1601MP-CU31
- 1x USB-Type C® to Type C®/A cable (30 cm)
- 1x heat conduction pad
- 1x screw
- 1x Screwdriver
- 1x wrist strap
- 1x user manual
Hints
Suitable for an M.2 NVMe SSD, size 2230
System requirements
- Windows®
- MacOS ®
- Linux
- Android™
