ICY BOX IB-RD3705-CU3 SATA HDD enclosure USB A (Host), USB C® SATA III, SATA 6 Gbps 61195
EAN:
Part number:
Item no:
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Only 4 Piece(s) available
Highlights & Details
ICY BOX heart RAID 3705
- Home & Home Office
- Desktop black
- Case slots can be changed during operation
Technical specifications
- Size of the storage drive: 2.5/3.5-inch
- Data transfer rate 5 Gbps
- Number of fans: 1 fans
- Fan diameter 8 cm
- Product type
SATA HDD enclosure
- HDD connection
SATA III
SATA 6 Gbps
- Interfaces
USB A (Host)
USB C®
- Power supply (LOV)
via PSU
- Features
5x
RAID enabled
active cooling
- Factory colour
Black
- Width
125 mm
- Height
200 mm
- Depth
215 mm
- Dim
(W x H x D) 125 x 200 x 215 mm
- Weight
2.91 kg
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Wireless charging
No
- Memory capacity
0 TB
- Power consumption (ON)
100 W
- UKCA
yes
- Storage drives installed
no
- Maximum supported storage capacity
150 TB
- Hot-swap drive bays
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Cooling
yes
- Number of storage drives supported
5
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3825291 ICY BOX IB-RD3705-CU3 SATA HDD enclosure USB A (Host), USB C® SATA III, SATA 6 Gbps 61195
Description

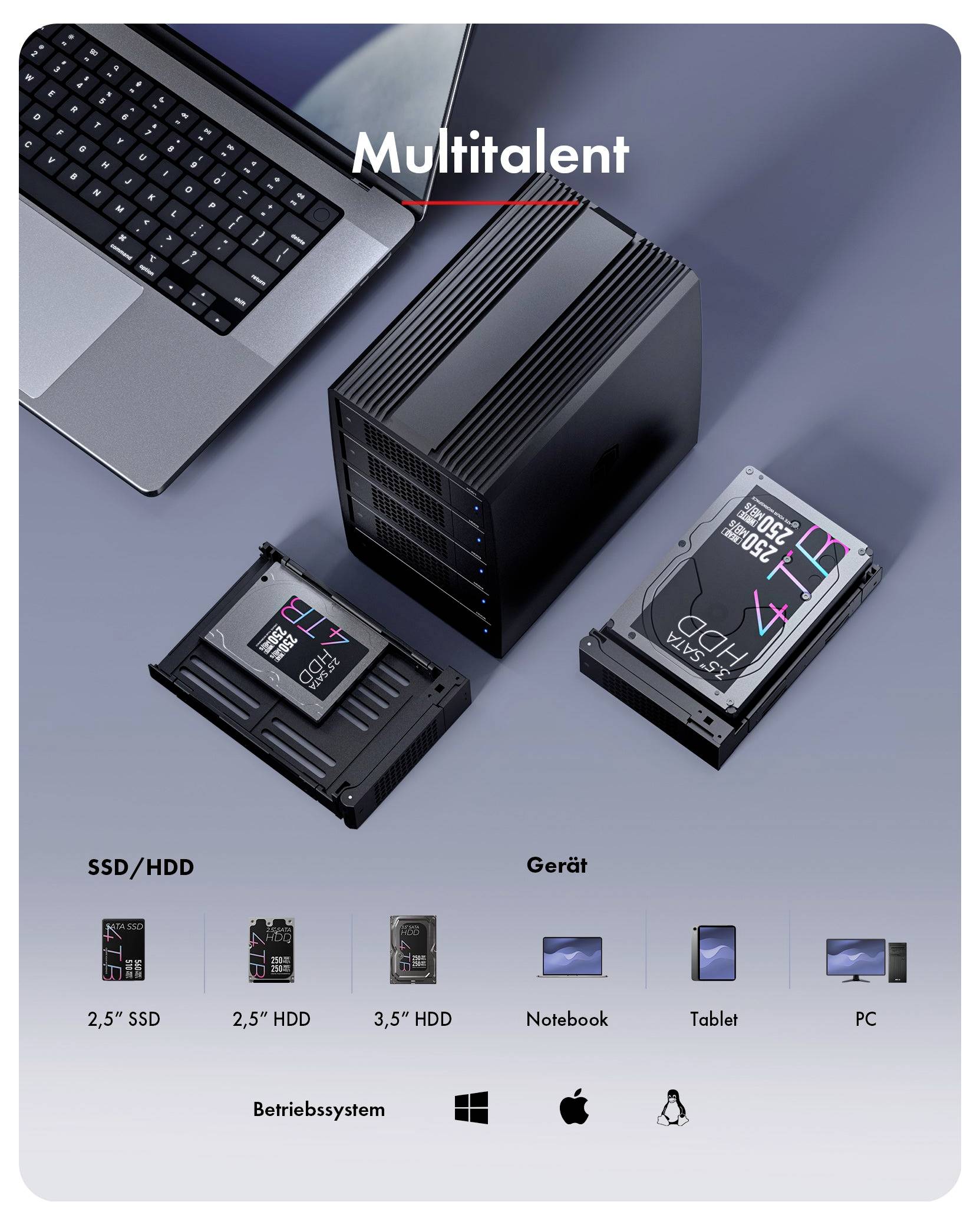

High storage capacity
End with multiple setups: Heart RAID 3705 holds up to 5 SATA drives in one system. No matter whether 2.5" or 3.5", HDD or SSD - mixing allowed. Support for up to 30 TB drives gives you massive space for backups, media and archives. The practical solution for those who do not want external drive chaos any more.

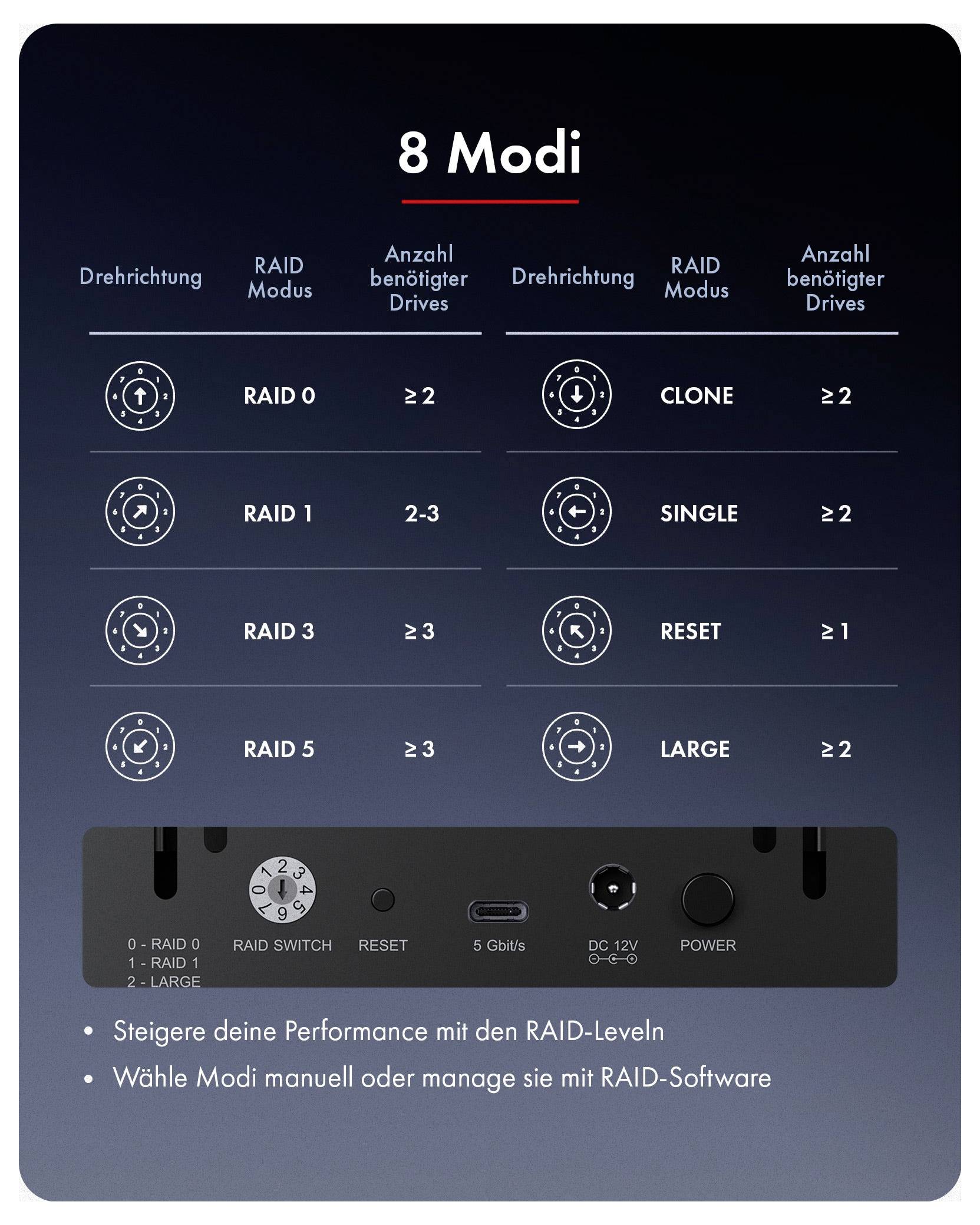

Multiple RAID modes
Life is changing and your needs are changing: With RAID 0, 1, 3, 5, 10, SINGLE and LARGE gives you 3705 the full freedom to build your setup exactly as you need it. More speed, higher data security or simply use individual drives - all possible. Perfect for creative projects, work data or backups. One device, many workflows: And you can adjust it any time.

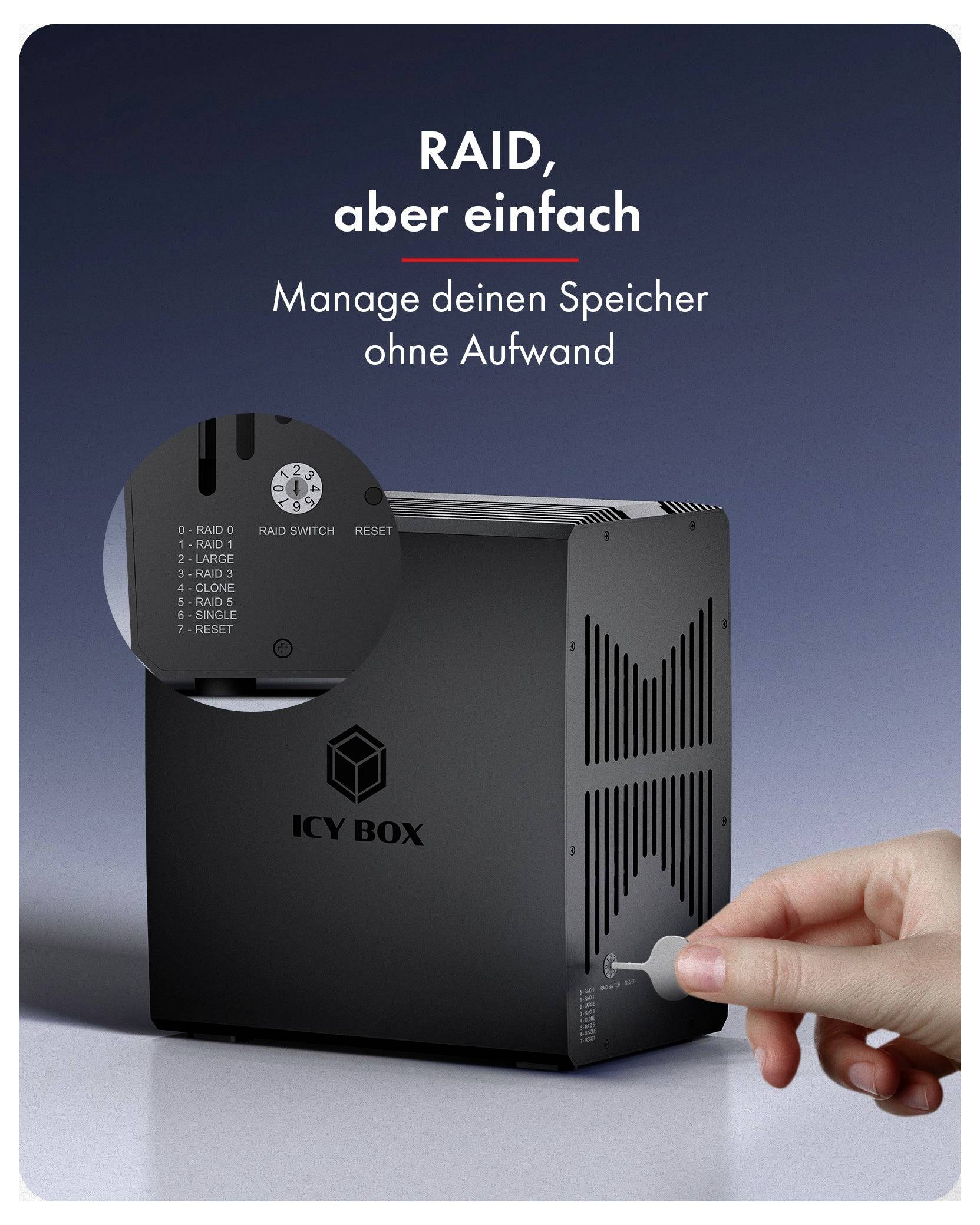

Turn on Ra(i)d.
Good products don't just work. They are also self-explanatory. Heart RAID 3705 has understood this, so switching between the modes is so simple thanks to the integrated hardware switch. No complicated software or lengthy setup steps required. Simply select the desired mode, reset the system, and you're ready to go. This simple approach saves you valuable time.

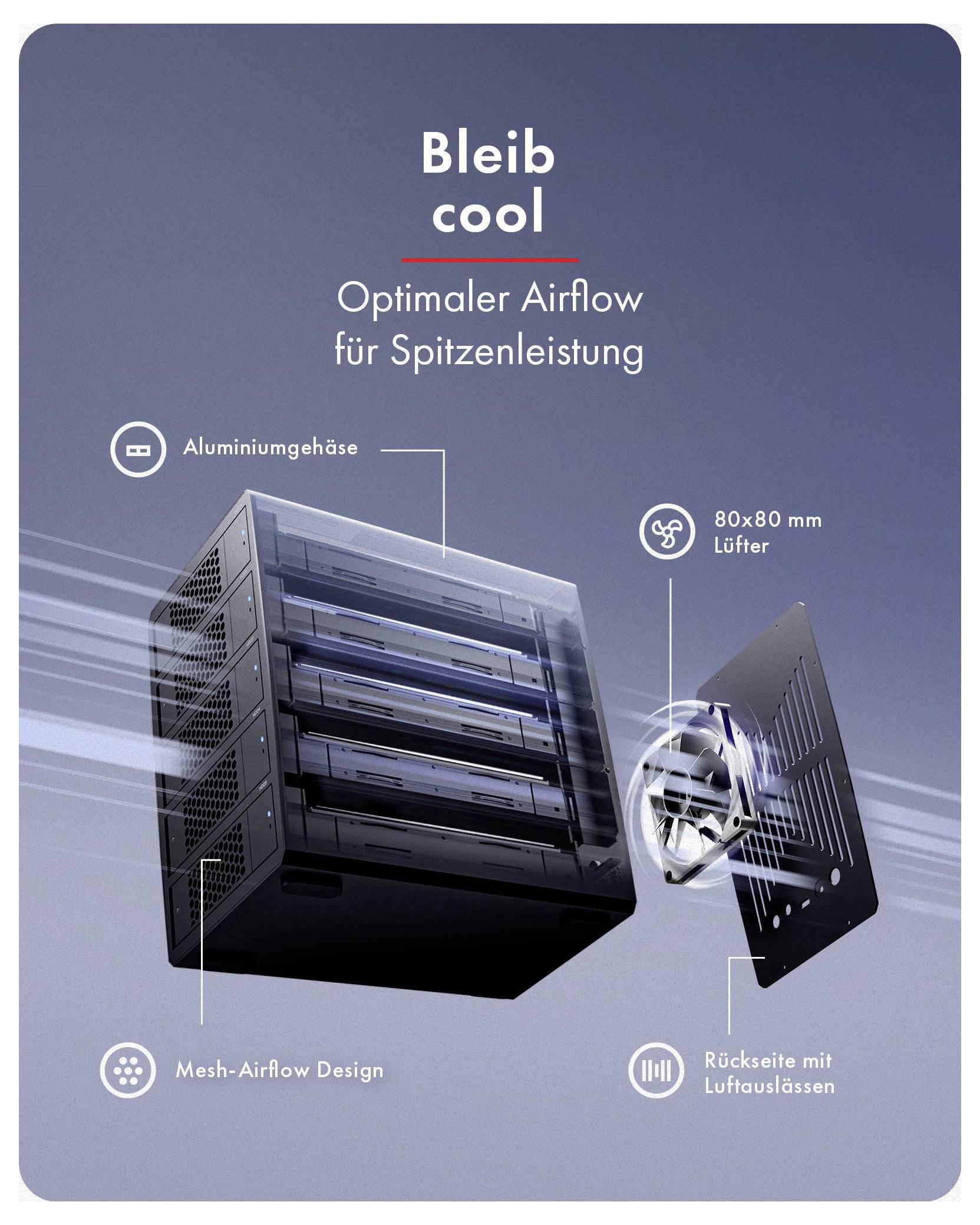

Remain cool
A built-in fan ensures that the system remains cool even if all 5 drives are operated simultaneously. This provides stable power for long transmissions or high utilization. Work with large amounts of data without worrying about overheating.

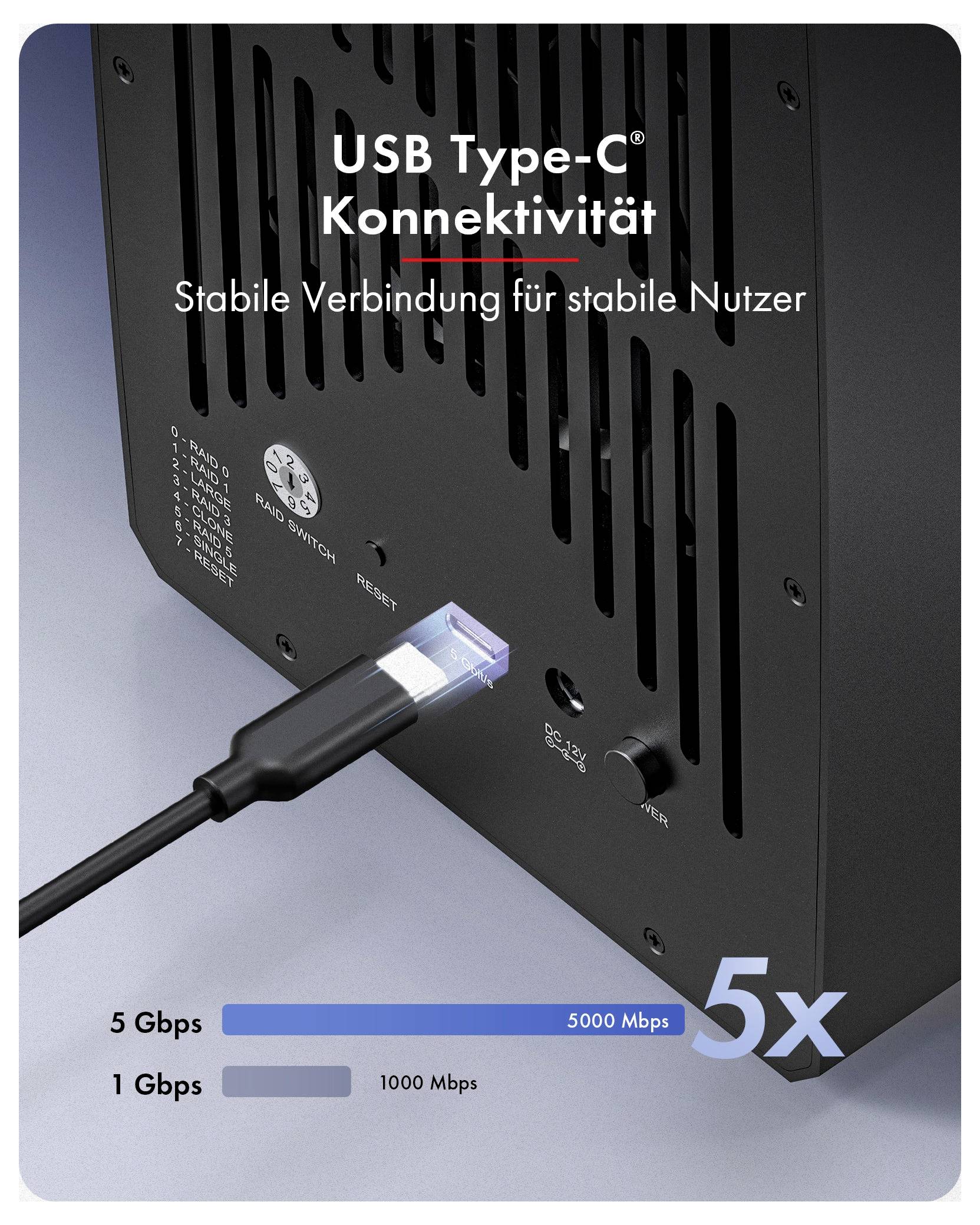

Fast USB connections for every day
Heart RAID 3705 is connected via USB Type C® and Type A and can therefore be easily used with modern and older computers. The file transfer is smooth and as designed for everyday tasks such as backups and data management. A single cable provides for an easy setup.
Broad system compatibility
You're not like everyone else - and Heart RAID 3705 respects that. This is why it runs on Windows®, MacOS® and Linux® without any extra setup. Simply connect and start. Whether it's home office, gaming setup or mixed system, this solution adapts to your style and remains as flexible as possible.
This text is machine translated.
Scope of delivery
- 1x Heart RAID 3705, 1x USB Type-C® to Type-C®/-A cable
- (60 cm), 1x screwdriver, 30x screw, 1x tool
- For RAID switch, 1x 20 V/5 A (100 W) Power supply (DC Plug:
- Ø5,5 x Ø2,1 x L10 mm, DC cable 120 cm), 1x manual
System requirements
- Before changing RAID mode, please secure
The data on the hard disk to cause data loss
.
