Buy Ideal Tek PCSA-4N PCB holder 2-piece (L x W) 520 mm x 280 mm 1 pc(s)

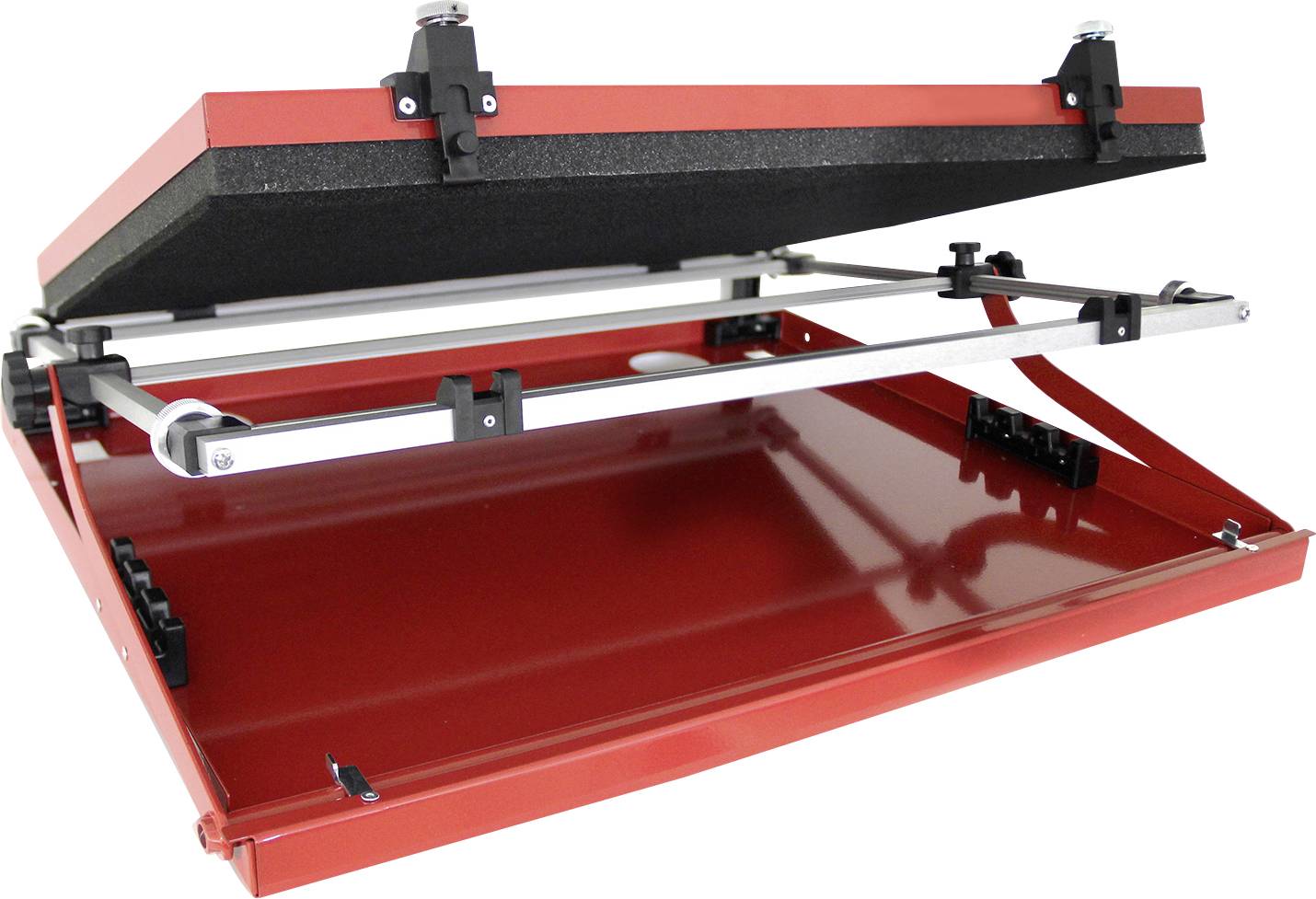

Red screen printing press with open frame; shows mechanism for holding and pressing screens, ideal for printing projects.

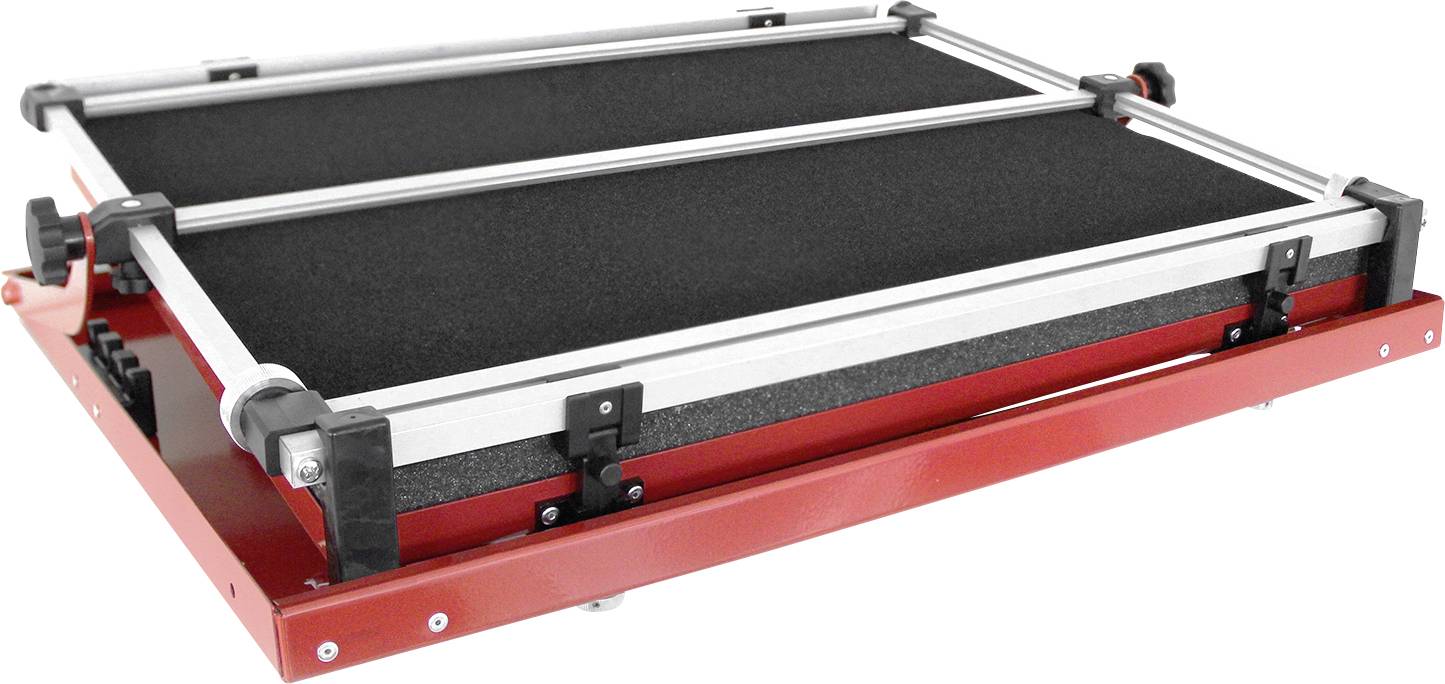

A collapsible, red skateboard frame with a black surface, used for transporting or storing equipment.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 449.58 / piece)

€ 449.58

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Mounting frames PCSA with ESD foam rubber

ESD-safe according to the regulations IEC 61340-5- 1:2016 and IEC 61340-2- 3:2016
Adjustable rail height
3 different vertical working positions: 70° - 80° - 90°
Securely anchored to work surface
Multiple combinations
Additional rails
Adjustable foam height for different component height mounting

Technical specifications

ESD-safe working surface: 510mm x 350 mm

Product type: PCB holder

Dim: (L x W) 520 mm x 280 mm

Width: 280 mm

Length: 520 mm

Documents & Downloads

Datasheet

Datasheet 2391246 Ideal Tek PCSA-4N PCB holder 2-piece (L x W) 520 mm x 280 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2391246 Ideal Tek PCSA-4N PCB holder 2-piece (L x W) 520 mm x 280 mm 1 pc(s)

Description

The mounting frames PCSA series are the ideal tool when fitting and soldering of circuit boards. The frame can be easily in all individual parts dismantled and reassembled in other combinations.
