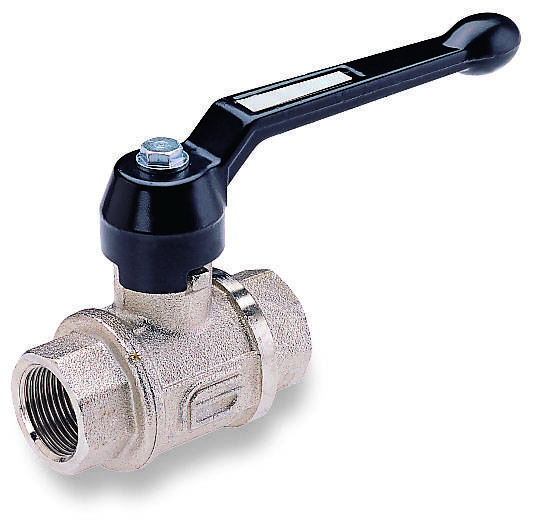

IMI NORGREN 6021121C8 Ball valve Internal thread: Rp 2" 0.4 up to 40 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Technical specifications
- Product type
Ball valve
- Internal thread
Rp 2"
- Manufacturer part #
6021121C8
- Operating temperature
-15 °C (min)
- Min. operating temperature
-15 °C
- Max. operating pressure
40 bar
- Operating pressure (min.)
0.4 bar
- Pressure range
0.4 up to 40 bar
- Operating medium
Compressed air
Water
Mineral oil
- (Ø)
50 mm
- Height
126 mm
- Length
229.5 mm
- Width
86 mm
- Max. ambient temperature
+90 °C
- Min. ambient temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 3297005 IMI NORGREN 6021121C8 Ball valve Internal thread: Rp 2" 0.4 up to 40 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3297005 IMI NORGREN 6021121C8 Ball valve Internal thread: Rp 2" 0.4 up to 40 bar 1 pc(s)
Description
Valve 6021121C8 60 series ball valves
