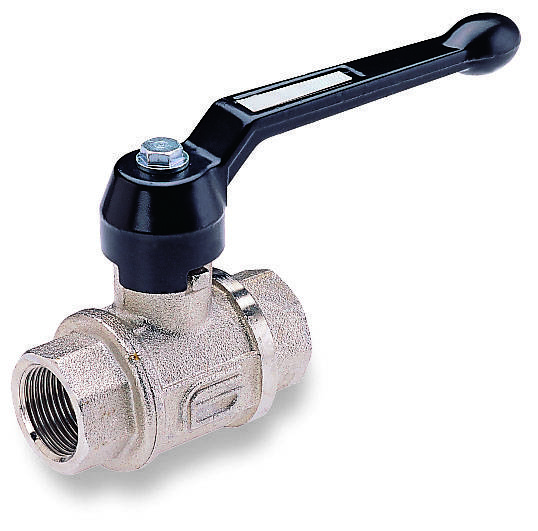

IMI NORGREN 602113188EX Ball valve Internal thread: G1 0 up to 12 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Technical specifications
- Product type
Ball valve
- Internal thread
G1
- Manufacturer part #
602113188EX
- Operating temperature
-15 °C (min)
- Min. operating temperature
-15 °C
- Max. operating pressure
12 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 12 bar
- Operating medium
Compressed air
Water
Mineral oil
- (Ø)
25 mm
- Height
107 mm
- Length
164.5 mm
- Width
54 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3297011 IMI NORGREN 602113188EX Ball valve Internal thread: G1 0 up to 12 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3297011 IMI NORGREN 602113188EX Ball valve Internal thread: G1 0 up to 12 bar 1 pc(s)
Description
Valve 602113188EX 60 Series Ball Valves
