Buy Infineon Technologies BCR402R PMIC - LED driver Linear SOT 143R 4 Surface-mount

'Circuit Application' shows a circuit with BCR 402R, resistors and diodes, for current limiting in LEDs.

Stroke drawing/circuit diagram

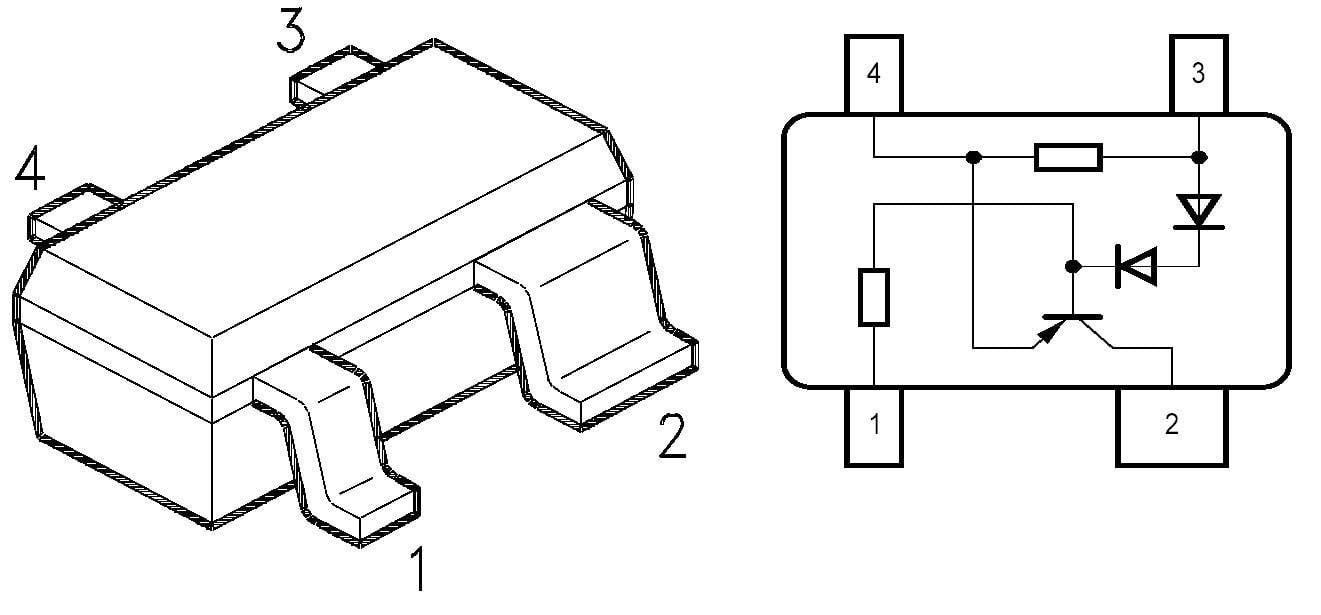

'Figure of an SMD component with four terminals. On the left, the physical form, on the right the circuit diagram with diode and resistor.'

1/2

Stroke drawing/circuit diagram

Enclosure

SOT 143R 4

Mounting type

Surface-mount

Product type

PMIC - LED driver

Type

BCR402R

Manufacturer

Infineon Technologies

Datasheet (PDF)

119 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.18 / piece)

€

Report legal concerns

Technical specifications

Type: BCR402R

Enclosure: SOT 143R 4

Manufacturer: Infineon Technologies

Manuf. code: INF

Type (PMIC): Linear

Internal switch(es): Yes

Channels: 1

Input voltage (min.): 1.2 V

Input voltage (max.): 18 V

Operating temperature (min.): -40 °C

Operating temperature (max.): +150 °C

Voltage output (num.): 16 V

Series: Automotve/AEC-Q101

Power output/channel: 60 mA

Range of uses: Lighting

Mounting type: Surface-mount

Type: BCR 402 R

Operating voltage: BCR 402 R

Product type: PMIC - LED driver

Documents & Downloads

Datasheet

Datasheet 152852 Infineon Technologies BCR402R PMIC - LED driver Linear SOT 143R 4 Surface-mount

Description

Integrated circuits from leading manufacturers. Please read our extensive documentation which is free to download.
