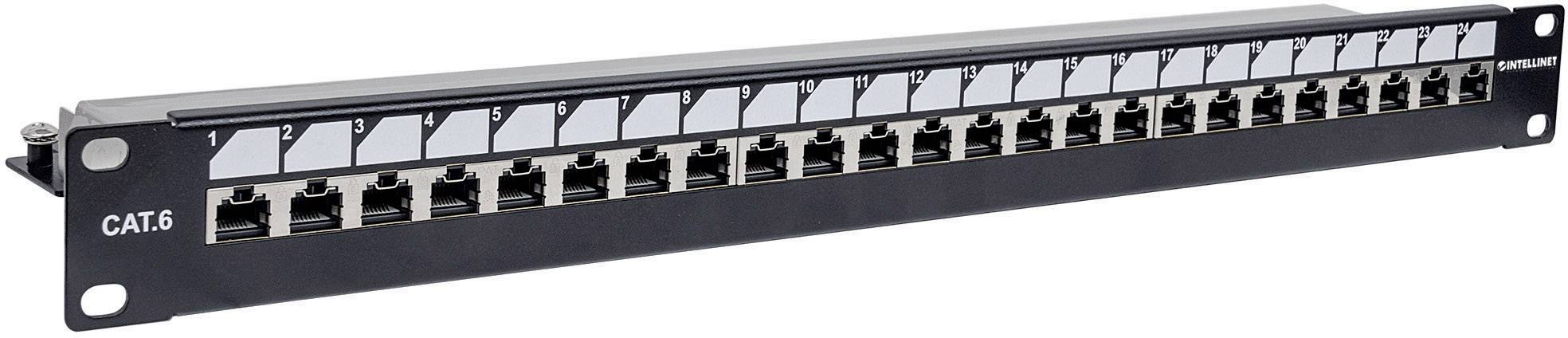

Intellinet Patch-Panel 24 ports CAT 6 1 U
EAN:
Part number:
Item no:
Highlights & Details
Intellinet lockable 24-port Cat6 patch panel, unshielded, 19", UTP, 1 HE
- Contacts coated with at least 0.50 μm gold for maximum connection quality of your network cable
- Terminal strips with 90 degree angled cable guides simplifies the installation
- Suitable for crown LSA+ punch witness
- Suitable for flex and solid wire cable from 22 to 26 AWG
- 19" rack mount
Technical specifications
- Product type
Network patch panel
- Rack size
483 mm (19")
CAT 6
- Rack unit
1 U
- Transfer rate
10 / 100 / 1000 MBit/s
- Port
24 ports
- Patch panel design
Equipped
- Connection method
Cable
- Width
482 mm
- Height
44 mm
- Factory colour
Black
- Length
115 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1651101 Intellinet Patch-Panel 24 ports CAT 6 1 U
Description
With a product line of lockable network components provides intellinet for additional security in your IT. These include patch panels, modular sockets, Network sockets and keystone module, all with a key tool comfortably protect against unauthorized access. Ideal for network access points at locations with increased safety requirements such as banks, hotels, airports, schools, shops, hospitals and more.
In addition, extremely convenient in all areas in which network cable by vibrations from the RJ45 ports can solve such as in the trains, airplanes and machinery spaces.
This text is machine translated.
In addition, extremely convenient in all areas in which network cable by vibrations from the RJ45 ports can solve such as in the trains, airplanes and machinery spaces.
This text is machine translated.
Features
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
- IEEE 802.3an 10GBASE-T
- Horizontal distance between the left and right mounting hole: 465 mm
- The vertical distance between the top and bottom mounting hole: 31 mm
- Weight: 1.4 kg
- Operating temperature: -40 to 70 °C
Scope of delivery
- Patch panel
- Key tool
