Buy Joy-it UART-RS232 Converter 1 pc(s)

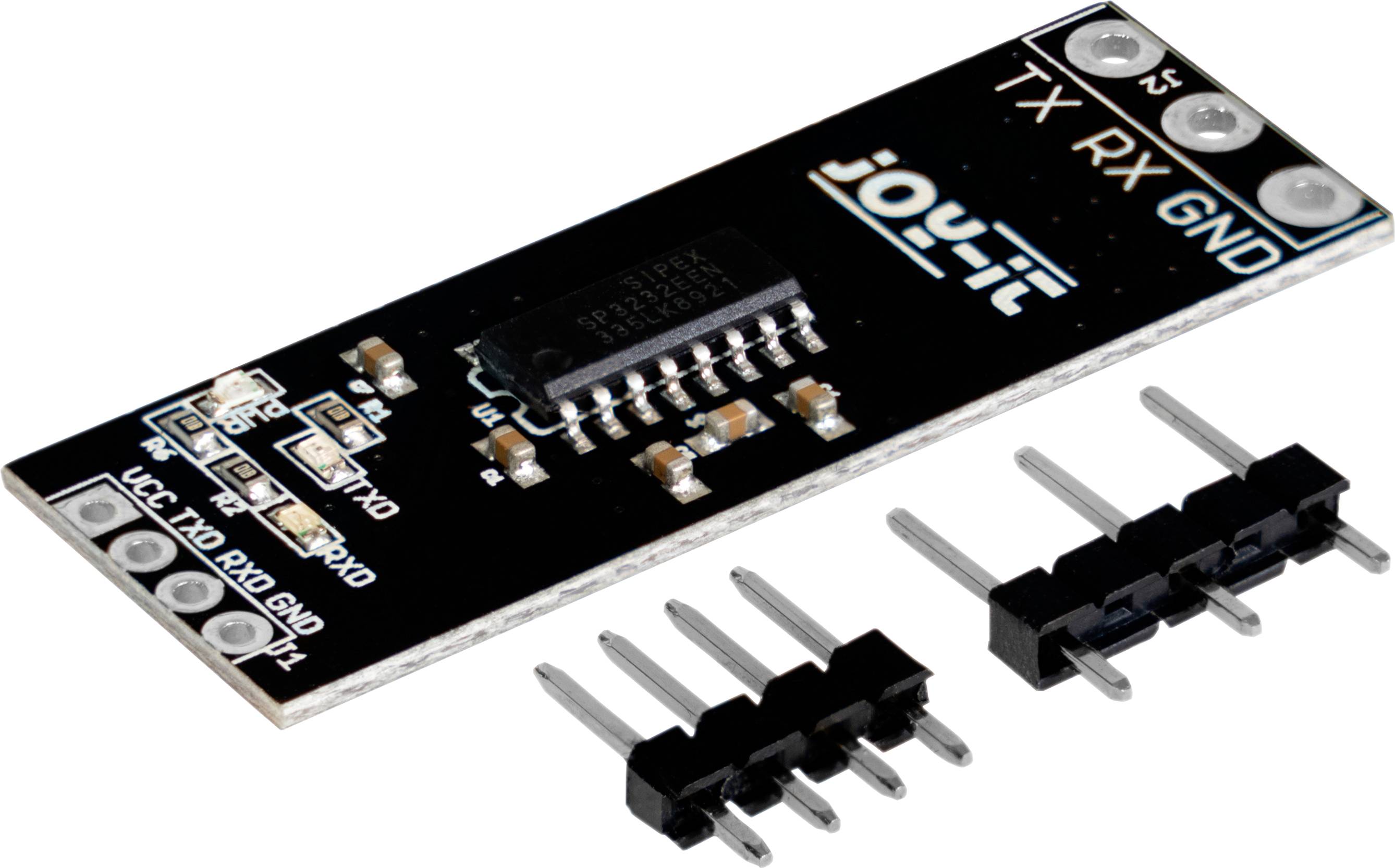

A black electronic module with a chip and pin headers. Text 'TX RX GND' is visible. Connector for connection or mounting alongside.

Electronic circuit board with labels 'TX', 'RX', 'GND'. Contains integrated circuit and multiple connectors.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

105 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€ 2.76

plus VAT.

Report legal concerns

Highlights & Details

Bidirectional converter module UART - RS232, 3V-5.5V

3V to 5.5V
Enclosed pin strip, can be configured freely

Technical specifications

UART - RS232 transceiver
SP32322E chipset
Connection: Terminal strip (enclosed, not soldered)
Supply voltage: 3V - 5.5V
Logic level 3V / 5V
Communication direction: Bidirectional
Dimensions 43 x 15 x 3 mm

Product type: Converter

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3375307 Joy-it UART-RS232 Converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3375307 Joy-it UART-RS232 Converter 1 pc(s)

Description

This bi-directional UART RS232 converter module enables seamless communication between devices with Universal Asynchronous Receiver/Transmitter (UART) interfaces and serial RS232 ports.

It converts data signals from UART to RS232 and vice versa and thus enables the compatibility between modern microcontrollers or embedded systems and older RS232 devices.

This module supports bi-directional data transmission and ensures reliable communication for various industrial, communication and control applications.
It is compact, easy to integrate and Ideal for situations where UART and RS232 devices need to interact without additional complex wiring or configurations.

This text is machine translated.

Scope of delivery

Module, pin strip
