Kendrion Hose tail 50704 8 bar (max) External thread M5 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included

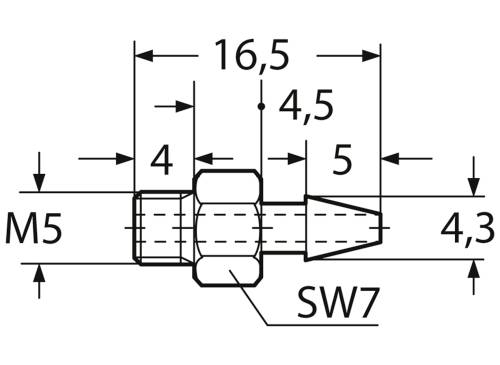

Technical specifications
- Suitable for:hoses 5 x 1
- Pressure 8 bar
- Thread size M5
- Accessory type: Hose nozzle
- Material: Polyamide
- Length: 16.5 mm.
- Product type
Hose tail
- External thread
M5
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
50704
- Material (details)
Polyamide
- Max. operating pressure
8 bar
- Pressure range
8 bar (max)
- Operating medium
Compressed air
- Content
1 pc(s)
- Depth
16.5 mm
- Pipe Ø
5 mm
Documents & Downloads
Datasheet
Datasheet 3168723 Kendrion Hose tail 50704 8 bar (max) External thread M5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3168723 Kendrion Hose tail 50704 8 bar (max) External thread M5 1 pc(s)
Description
Self-sealing at the thread, made of high-quality polyamide. Operating pressure: Max. 8.0 bar. Operating temperature -10°C to +70°C. Starting torque: Max. 0.5 Nm.
