Kerafol 1.086325.ST.03000.W003387 86/325 Thermally conductive pad 3.0 mm 3.0 W/mK (L x W) 100 mm x 100 mm
EAN:
Part number:
Item no:
Product type
Thermally conductive pad
Thermal conductivity
3.0 W/mK
Material thickness
3.0 mm
Length
100 mm
Width
100 mm
Datasheet (PDF)
Number
Total (1 m2 = € 1,848.00)
€ 18.48
plus VAT.
Technical specifications
- Product type
Thermally conductive pad
- Type
86/325
- Content
1 pc(s)
- Thermal conductivity
3.0 W/mK
- Factory colour
Mint
- Material thickness
3.0 mm
- Dim
(L x W) 100 mm x 100 mm
- Length
100 mm
- Width
100 mm
- Max. temperature
+180 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2756304 Kerafol 1.086325.ST.03000.W003387 86/325 Thermally conductive pad 3.0 mm 3.0 W/mK (L x W) 100 mm x 100 mm
User & Safety Instructions
User & Safety Instructions 2756304 Kerafol 1.086325.ST.03000.W003387 86/325 Thermally conductive pad 3.0 mm 3.0 W/mK (L x W) 100 mm x 100 mm
Description

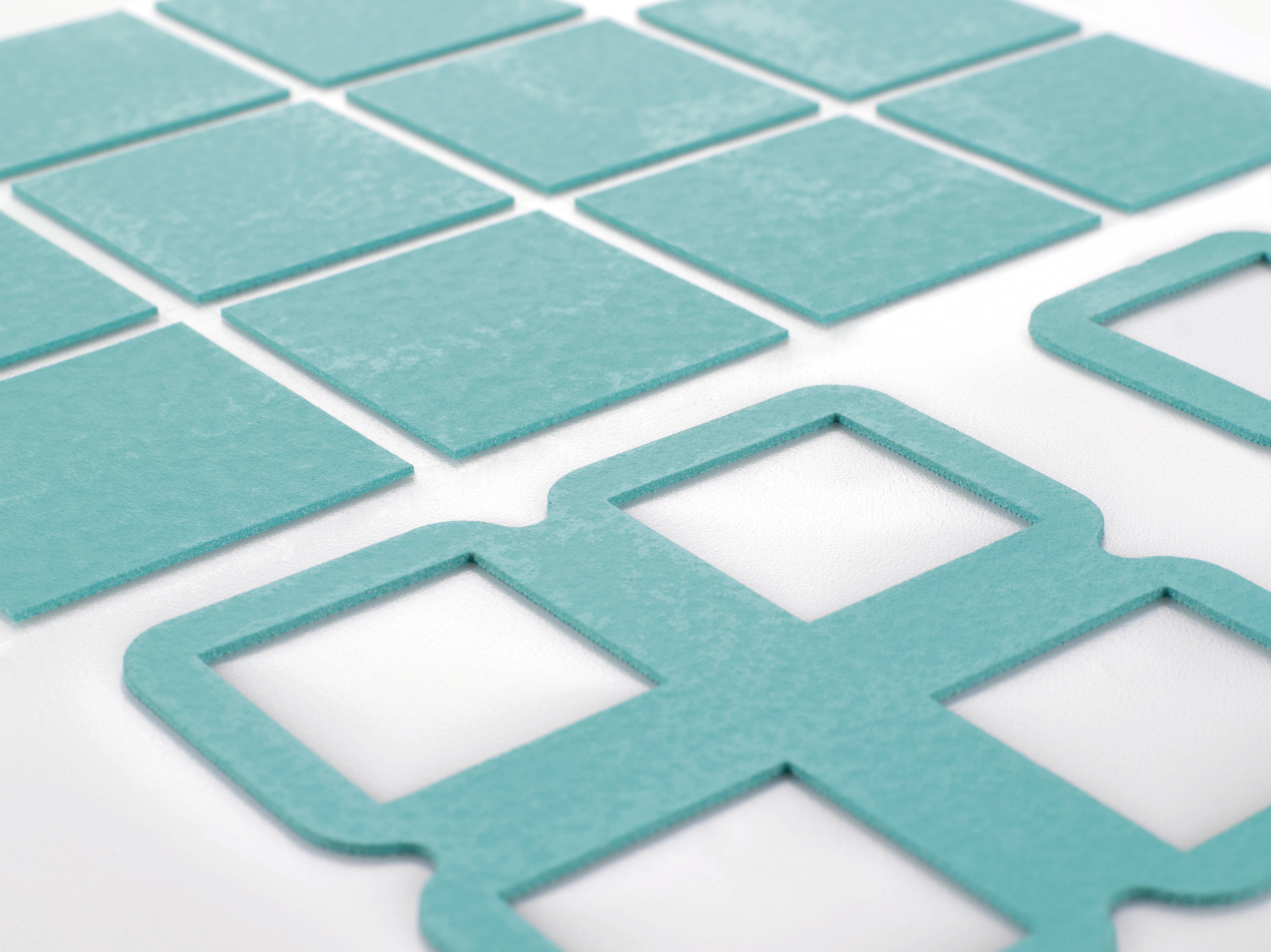

KERATHERM® SOFTTHERM® films, also known as gap pads or gap fillers, are a group of highly elastic ceramic-filled films. They are characterized by their extremely good compressibility, optimal plasticity with simultaneous good heat transfer and good electrical properties. Good compressibility and softness, together with good thermal behavior, characterize this SOFTTHERM® film. These single-layer films are reinforced with fiberglass up to a thickness of 1.0 mm.
This text is machine translated.
This text is machine translated.
Features
- PropertiesHighly flexible filmExcellent flexibilityVersatile thermal conductivity rangeGood electrical insulationHigh temperature stabilityPossible applicationsRD-RAM memory chipsHeat Pipe thermal solutionsAutomotive IndustryControl unitsPlasma supply consolesAdvantagesBalancing of component irregularitiesOptimized thermal transitionGood compression behaviorUL listedSlide optionsOptionally one-sided adhesive coatingSpecial thickness possibleAvailable as roll goods or punching goodsGlass-fiber reinforcement is possible if necessary
