Kingbright KM2520ZGC09 SMD LED Green 1900 mcd, 2700 mcd 20 ° 20 mA 3.3 V

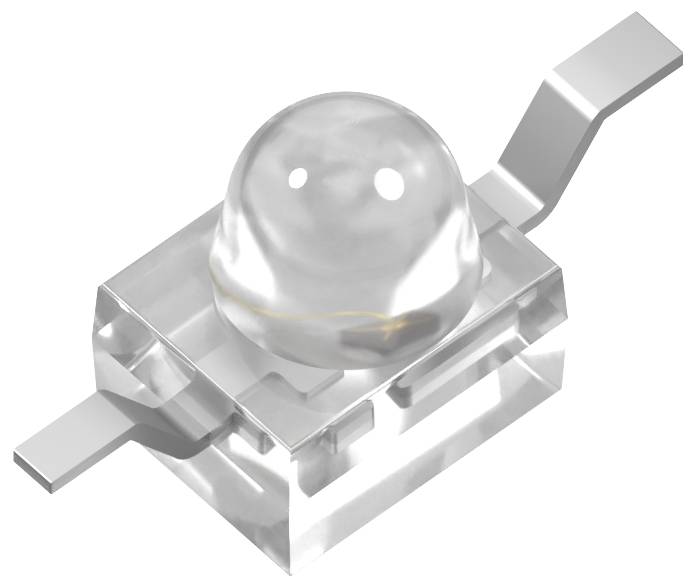

Close-up of a clear LED light component with two metal leads on a white background.
Product type
SMD LED
Forward voltage U(F)
3.3 V
Forward current I(F)
20 mA
Light intensity I(V)
1900 mcd
2700 mcd
Radiation angle
20 °
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
1000 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 3
Total (€ 0.52 / piece)
€ 0.52
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Axial green LED (subminiature solid state lamp Z-bend)

  • Wavelength: Peak 515 nm / dominant 525 nm
  • Light Intensity (Type): 500 mcd (at 20 mA)
  • Angle of radiation: 20° (narrow angle of radiation with integrated lens)
  • Design / housing: Subminiature SMD (2.5 mm × 2.0 mm, Subminiature Z-Bend / Gull Wing Leads)
  • Operating voltage (Type. / Max.): 3.3 V / 4.0 V (at 20 mA rated current)

Technical specifications

  • Type of lens: Water-clear (water-clear lens)
  • Lens diameter:1.9 mm (Dome lens)
  • SMD mounting type (reflow-suitable)
  • Halogen-free
Product type

SMD LED

Type

KM2520ZGC09

Factory colour

Green

Forward voltage U(F)

3.3 V

Forward current I(F)

20 mA

Light intensity I(V)

1900 mcd

2700 mcd

Wavelength

525 nm

Radiation angle

20°

Type

Sub-miniature Z-bend / reverse mounting (reverse mount)

Dim

(L x W x H) 2.5 x 2 x 2.8 mm

Length

2.5 mm

Technology

InGaN

Width

2 mm

Min. temperature

-40 °C

Height

2.8 mm

Max. temperature

85 °C

RoHS-compliant

Yes

Content

1 pc(s)

Moisture Sensitiviy Level (MSL)

3

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3825273 Kingbright KM2520ZGC09 SMD LED Green 1900 mcd, 2700 mcd 20 ° 20 mA 3.3 V

User & Safety Instructions

User & Safety Instructions 3825273 Kingbright KM2520ZGC09 SMD LED Green 1900 mcd, 2700 mcd 20 ° 20 mA 3.3 V

Description

Axial LED (subminiature solid state lamp Z-bend) green with clear round lens for PCBs, reverse mounting

This text is machine translated.

Scope of delivery

  • SMD-LED Kingbright KM2520ZGC09 on belt/roll

Hints

All standard LED chips require a current-limiting resistor/constant current power source.
