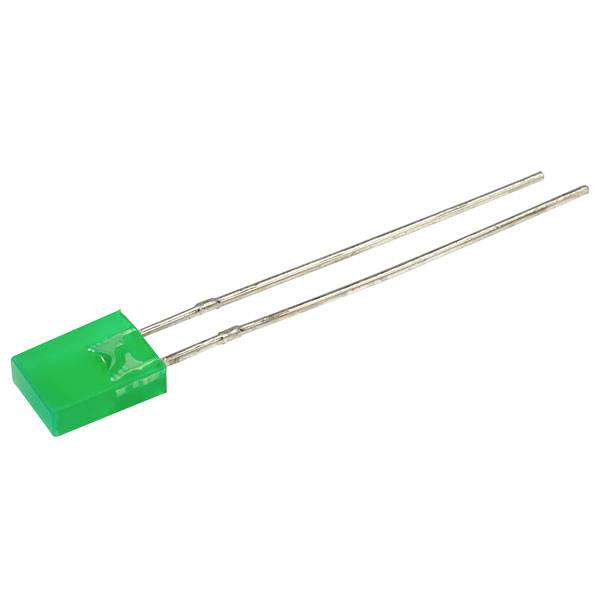

Kingbright LED wired Green Rectangular 2 x 5 mm 8 mcd 110 ° 25 mA 2.2 V
Product type
LED wired
Forward voltage U(F)
2.2 V
Forward current I(F)
25 mA
Casing
2 x 5 mm
Type
Radial lead
EAN:
Part number:
Item no:
Number
Minimum order quantity: 20
Total (€ 0.18 / piece)
€ 0.18
incl. VAT
14-day return policy included
Technical specifications
- Product type
LED wired
- Type
L-113GDT
- Factory colour
Green
- Forward voltage U(F)
2.2 V
- Forward current I(F)
25 mA
- Operating voltage
2.25 V
- Operating current
25 mA
- Casing
2 x 5 mm
- Type
Radial lead
- Light intensity I(V)
8 mcd
- Wavelength
565 nm
- Radiation angle
110°
- Type (LEDs)
Diffused
Tinted
- LED features
LED 5 mm
- Technology
GaP
- Lens type
Rectangular
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2888895 Kingbright LED wired Green Rectangular 2 x 5 mm 8 mcd 110 ° 25 mA 2.2 V
Description
Features
- Low power consumption
- Reliable and rugged
- Excellent uniformity of light output
- Suitable for use as level indicator
- Flangeless construction permits stacking in X or Y axis with no gaps
- Kingbright L-113T series
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
