Buy Kingbright Seven-segment display Green 2.2 V BA56-12GWA | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

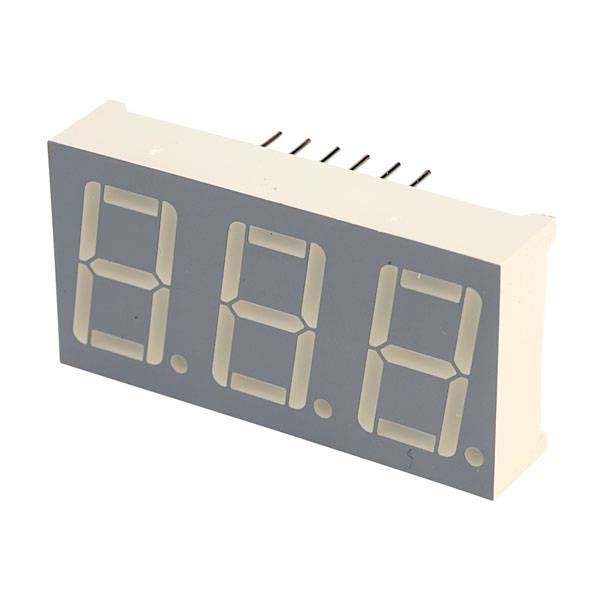

Digital 7-segment display, showing '8.8.8', a typical component in electronic devices for displaying digits.

Digital 7-segment display, showing '8.8.8', a typical component in electronic devices for displaying digits.

Kingbright

Product type

Seven-segment display

Forward voltage U(F)

2.2 V

Width

8.1 mm

Height

19 mm

Type

BA56-12GWA

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

69 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Common anode

Product type: Seven-segment display

Type: BA56-12GWA

Forward voltage U(F): 2.2 V

Forward current I(F): 25 mA

Factory colour: Green

Width: 8.1 mm

Height: 19 mm

Light intensity I(V): 16 mcd

Dim: (L x W x H) 37.6 x 8.1 x 19 mm

Length: 37.6 mm

RoHS-compliant: Yes

Type: Radial lead

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2888937 Kingbright Seven-segment display Green 2.2 V BA56-12GWA

User & Safety Instructions

User & Safety Instructions 2888937 Kingbright Seven-segment display Green 2.2 V BA56-12GWA

Features

Right hand decimal point
White segments and grey display surface to maximise on/off contrast
Connections run along the top and bottom of the display simplifying wiring in multi-digit applications
Easy mounting on PCBs or sockets
IC compatible
Mechanically rugged
Common anode
This text is machine translated.

Description

Features

Right hand decimal point
White segments and grey display surface to maximise on/off contrast
Connections run along the top and bottom of the display simplifying wiring in multi-digit applications
Easy mounting on PCBs or sockets
IC compatible
Mechanically rugged
Common anode
This text is machine translated.
