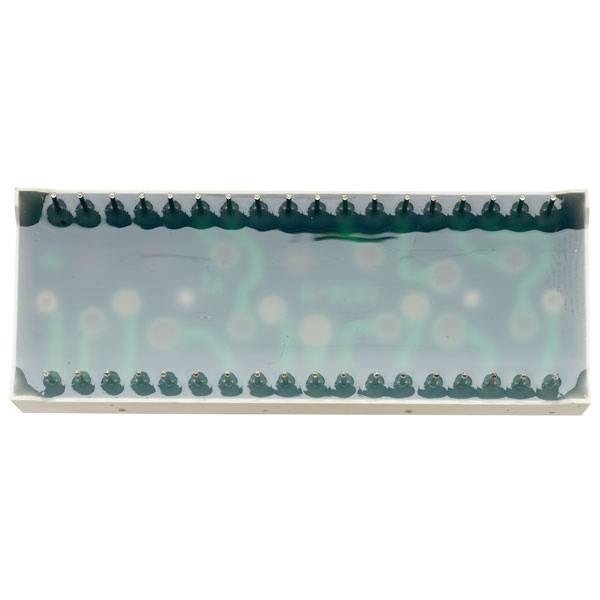

A rectangular, transparent electronic component with visible circuit traces and numerous pins along its sides.

A rectangular, transparent electronic component with visible circuit traces and numerous pins along its sides.

Kingbright

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Fri, 11 Sep

35 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1.25 / piece)

€ 1.25

plus VAT.

Report legal concerns

Technical specifications

Common cathode

Type: CC56-11GWA

Forward voltage U(F): 2.2 V

Forward current I(F): 25 mA

Factory colour: Green

Light intensity I(V): 10.5 mcd

Type: Radial lead

RoHS-compliant: Yes

Product type: Seven-segment display

Documents & Downloads

Datasheet

English

Datasheet 2888832 Kingbright Seven-segment display Green 2.2 V CC56-11GWA

User & Safety Instructions

User & Safety Instructions 2888832 Kingbright Seven-segment display Green 2.2 V CC56-11GWA

Description

Features

7 Segment 14.2mm (0.56in) high characters
Floating point gives readout from 0000 and 0.001 to 9999
Common cathode
White segments with grey display surface maximises on/off contrast
Connections run along top and bottom of display
Kingbright 56 series
