Buy Kingbright Seven-segment display Red 2 V BA56-12EWA | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

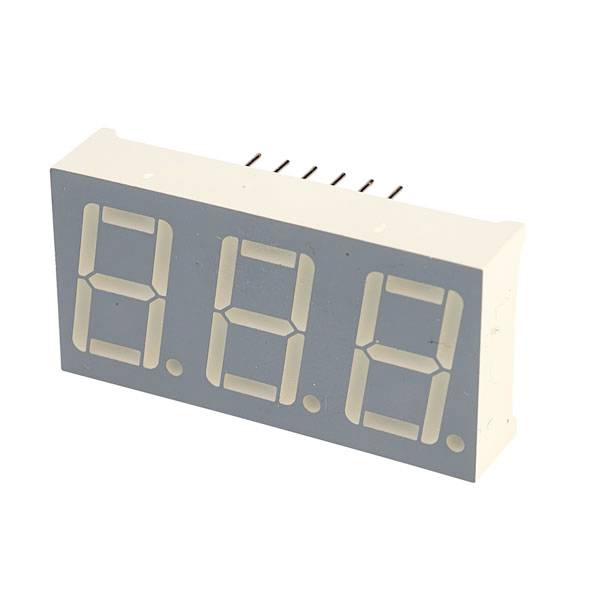

A 7-segment LED display with the digits '8.8.8.' and decimal point indicators between the digits, used for digital display systems.

A 7-segment LED display with the digits '8.8.8.' and decimal point indicators between the digits, used for digital display systems.

Kingbright

Product type

Seven-segment display

Forward voltage U(F)

2 V

Width

8.1 mm

Height

19 mm

Type

BA56-12EWA

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Kingbright BA56-12EWA 14.2mm 3 Digit Red LED Display Anode

Our service for you

Technical specifications

Common anode

Product type: Seven-segment display

Type: BA56-12EWA

Forward voltage U(F): 2 V

Forward current I(F): 30 mA

Factory colour: Red

Width: 8.1 mm

Height: 19 mm

Light intensity I(V): 16 mcd

Dim: (L x W x H) 37.6 x 8.1 x 19 mm

Length: 37.6 mm

RoHS-compliant: Yes

Type: Radial lead

Documents & Downloads

Datasheet

Datasheet 2888935 Kingbright Seven-segment display Red 2 V BA56-12EWA

User & Safety Instructions

User & Safety Instructions 2888935 Kingbright Seven-segment display Red 2 V BA56-12EWA

Features

Right hand decimal point
White segments and grey display surface to maximise on/off contrast
Connections run along the top and bottom of the display simplifying wiring in multi-digit applications
Easy mounting on PCBs or sockets
IC compatible
Mechanically rugged
Common anode
This text is machine translated.

Description

Features

Right hand decimal point
White segments and grey display surface to maximise on/off contrast
Connections run along the top and bottom of the display simplifying wiring in multi-digit applications
Easy mounting on PCBs or sockets
IC compatible
Mechanically rugged
Common anode
This text is machine translated.
