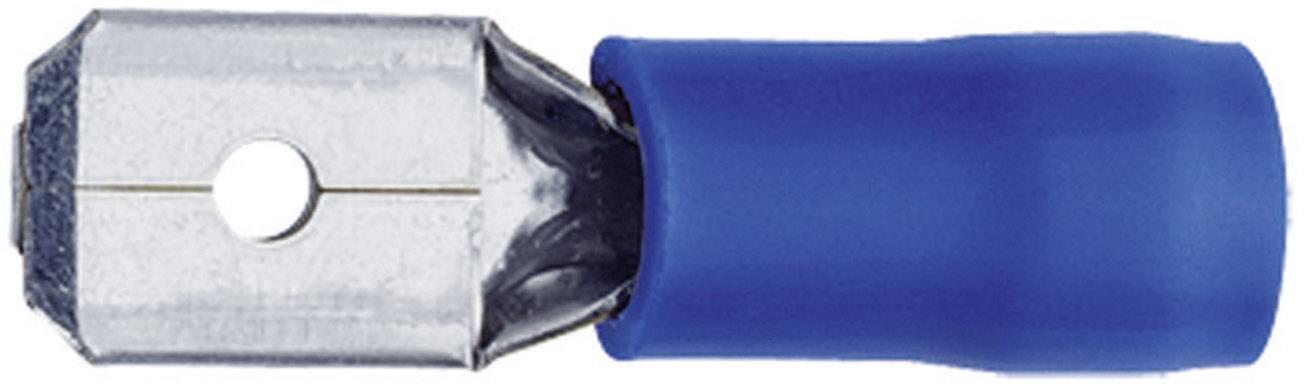

Klauke 8303B Blade terminal Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
Product type
Blade terminal
Connector width
4.8 mm
Connector thickness
0.8 mm
Insulation type
Partially insulated
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 5
Total (€ 0.57 / piece)
€ 0.57
incl. VAT
14-day return policy included
Highlights & Details
Klauke 8303B Blade terminal Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
- Blue
- 4.8 mm x 0.8 mm
- 1.50 mm² - 2.50 mm²
Our service for you
Technical specifications
- Product type
Blade terminal
- Factory colour
Blue
- Connector width
4.8 mm
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
1 pc(s)
- Manufacturer part #
8303B
- Type
8303B
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- Insulation material
PA 6.6
- Cross-section range
1.50 - 2.50 mm²
- RoHS-compliant
Yes
- Size
4.8 x 0.8 mm
- Insulation
Halogen-free PA
- Material (details)
CuZn, tin-plated
- Type
4.8 x 0.8 mm
- Cross section
1.5 - 2.5 mm²
Documents & Downloads
Datasheet
Datasheet 739209 Klauke 8303B Blade terminal Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
Description
For fine and ultra-fine stranded conductors.
