Klingspor 334045 DT 612 UT Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Construction materials, Con

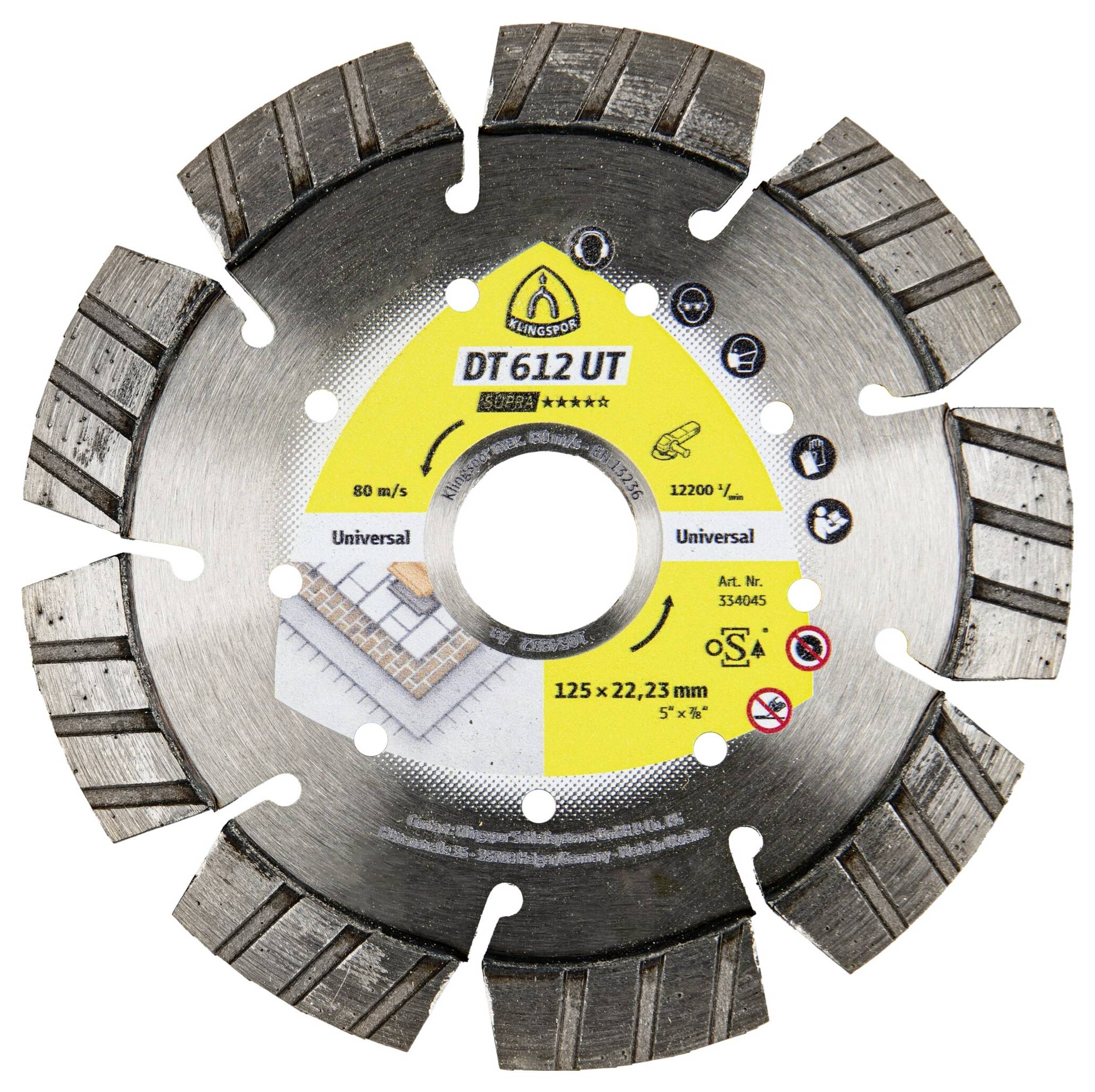

'A circular saw blade marked DT612 UT, Universal, 125x22,23 mm, 5x5". Suitable for cutting, with speed and safety icons visible.'
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 31.99 / piece)
€ 31.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Klingspor 334045 DT 612 UT Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Construction materials, Concrete (multi-purpose), Recycled waste concrete (reinforced), Flintlime brick 1 pc(s)

  • Special turbo segments for a very high cutting speed with almost all hard materials
  • Good service life, even with reinforced concrete
  • 'No water drops inside the drum' symbol with droplets, a cross, and a gear outline in a circle.
  • A minimalist black and white drawing of a stair-like shape with four steps, set against a white background.
  • A curved rectangle with two opposing arrows and the number '12' inside, indicating a size or dimension.
  • An illustration of an angle grinder, showing key components like the handle, disc, and body.
  • 'Waterproof' icon showing a water droplet, a plus sign, and a slashed droplet next to a shoe sole, in a circular frame.
  • 'Black arrow pointing both ways with number 12 inside a tilted rectangle, symbolizing a measurement or dimension.'
  • A black and white illustration of a stylized eyebrow, depicted with upward diagonal lines on top, resembling a trimmed shape.
  • 'A circular saw blade with spark indicates cutting action or potential danger.'

Technical specifications

  • Usage: Angle grinder
  • Aggressivity: Medium
  • Design: Laser welded
  • Segmentation: Turbo
  • Service life: Very high
  • Top speed 80 m/s.
  • Maximum speed 12250 rpm
  • Machine type: Angle grinder
  • Edge design: Standard turbo
  • Number of segments: 9 pcs
  • Segment width 2.4 mm
  • Segment height 12 mm
  • Segment length 33 mm
Product type

Diamond cutting disc

Material suitability

Construction materials

Concrete (multi-purpose)

Recycled waste concrete (reinforced)

Flintlime brick

Bore Ø

22.23 mm

Dim

(Ø) 125 mm

(Ø)

125 mm

Rotational speed (max.)

12250 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530080 Klingspor 334045 DT 612 UT Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Construction materials, Con

User & Safety Instructions

User & Safety Instructions 3530080 Klingspor 334045 DT 612 UT Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Construction materials, Con

Information

Information 3530080 Klingspor 334045 DT 612 UT Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Construction materials, Con

Description

The laser-welded universal disc DT 612 UT Supra with turbo segments is Ideal for fast cutting of hard construction materials. It offers a very high cutting speed and best Klingspor brand quality for the daily application.

This text is machine translated.
