Buy Knorr Tec 10016020 D-SUB plug 180 ° Number of pins: 25 Pull spring 1 pc(s)

A silver, rectangular plug with multiple gold-coloured pins, surrounded by a metallic protective casing and four screws.

Image similar

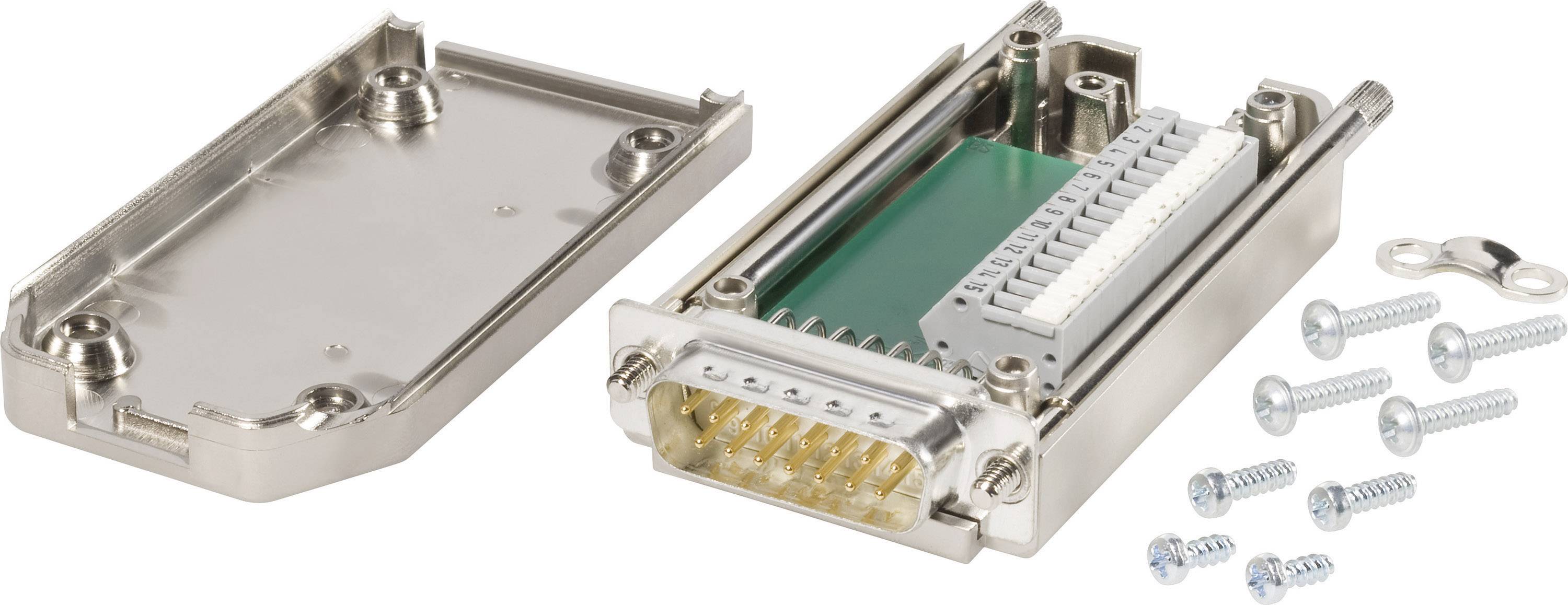

Opened plug with metal casing and a row of connections inside. Screws and a clamp are lying beside it.

1/2

Image similar

Product type

D-SUB plug

Connector type

Plug, straight

Number of pins

Connection

Pull spring

No. of rows

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

11 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 31.92 / piece)

€ 31.92

plus VAT.

Report legal concerns

Highlights & Details

Knorr Tec 10016020 D-SUB plug 180 ° Number of pins: 25 Pull spring 1 pc(s)

D-SUB plug
No. of rows: 2
Number of pins: 25

Technical specifications

Screw locking with 2 x knurled screw 4/40 UNC, Cable clip
Proof voltage: ≤ 100 V
Current capability 1.2 A
Flammability class: UL 94 HB.

Product type: D-SUB plug

Connector type: Plug, straight

Number of pins: 25

Connection: Pull spring

Connection angle: 180°

No. of rows: 2

Content: 1 pc(s)

Manufacturer part #: 10016020

Test voltage: 1 KV/mm

: IP20

Temperature range: -20 to +85 °C

Type: 10016020

Height: 16.6 mm

Length: 75 mm

Width: 53 mm

Type: Connector

Nominal voltage (details): ≤ 100 V

Pins: 25

Connection: Cage clamps

Casing: Plastic housing, ABS metallic (EMV-Variante)

Documents & Downloads

Datasheet

Datasheet 733298 Knorr Tec 10016020 D-SUB plug 180 ° Number of pins: 25 Pull spring 1 pc(s)

User & Safety Instructions

User & Safety Instructions 733298 Knorr Tec 10016020 D-SUB plug 180 ° Number of pins: 25 Pull spring 1 pc(s)

Description

This D-SUB plugs are easy to mount without special tools and suited for on site packing. Stackable in longitudinal direction in raster The clamp ares for cable sheaths is from 3 to max. 10.5 mm variable. Through cage clamp connection technology is a high contact security even in vibration is ensured.
