Passive ComponentsPotentiometersRotary Potentiometers

KRAH D 55/40W 10% 10K D 55/40W 10% 10K Wire-wound pot 40 W 10 kΩ 1 pc(s)

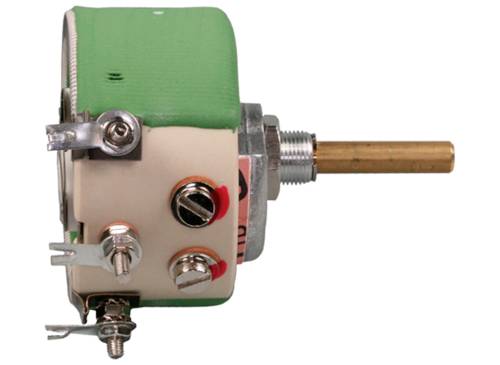

Electric potentiometer with a green casing, silver shaft and three connection terminals. Used for controlling electrical devices.

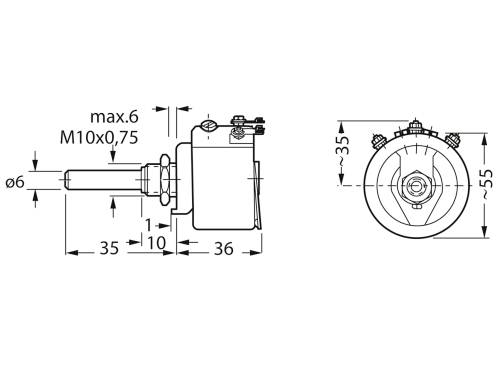

Figure shows technical drawing of a cylindrical part with dimensions. Markings: M10x0.75, diameter 6 mm, length 55 mm.
1/2
Product type
Wire-wound pot
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
40 W
Axle Ø
6 mm
Datasheet (PDF)
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 319.00 / piece)
€ 319.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Ceramic wire potentiometer, 10 kΩ, 40 W, linear, solder lug, D 55/40W 10% 10K

  • 10 kΩ
  • linear

Our service for you

Technical specifications

Product type

Wire-wound pot

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

40 W

Connection

Solder tag

Mechanical angle

280°

Electrical angle

270°

Axle Ø

6 mm

Width

36 mm

Content

1 pc(s)

Type

D 55/40W 10% 10K

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 3023871 KRAH D 55/40W 10% 10K D 55/40W 10% 10K Wire-wound pot 40 W 10 kΩ 1 pc(s)

Description

Ceramic-wire potentiometer type KRH-RWI D 55/40. Rated power: 40 watts, max. Load capacity: 60 Watt/40 °C, design: According to DIN 41475, tolerance: ±10 %, with 6.0 mm-axis, shaft length: 25 mm, test voltage: 2000 VAC, Rotation range: mechanical/electronic 280/270° Type 10K

This text is machine translated.

Scope of delivery

  • D 55/40W 10% 10K.
