KS Tools 517.2626 5172626 Crowfoot wrench Spanner size (inches) 1 5/8"

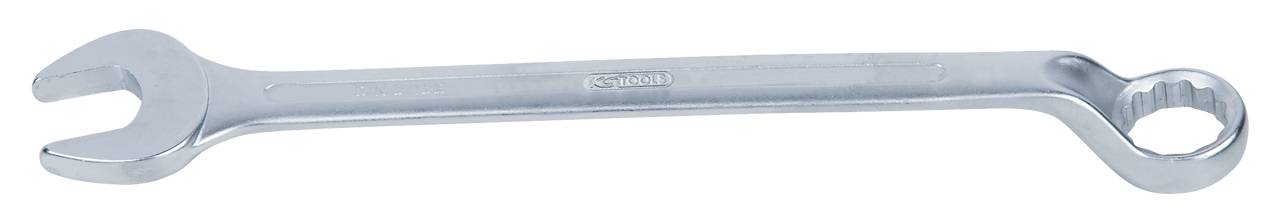

A silver spanner with an open-ended jaw at one end and a ring spanner at the other end, set against a white background.

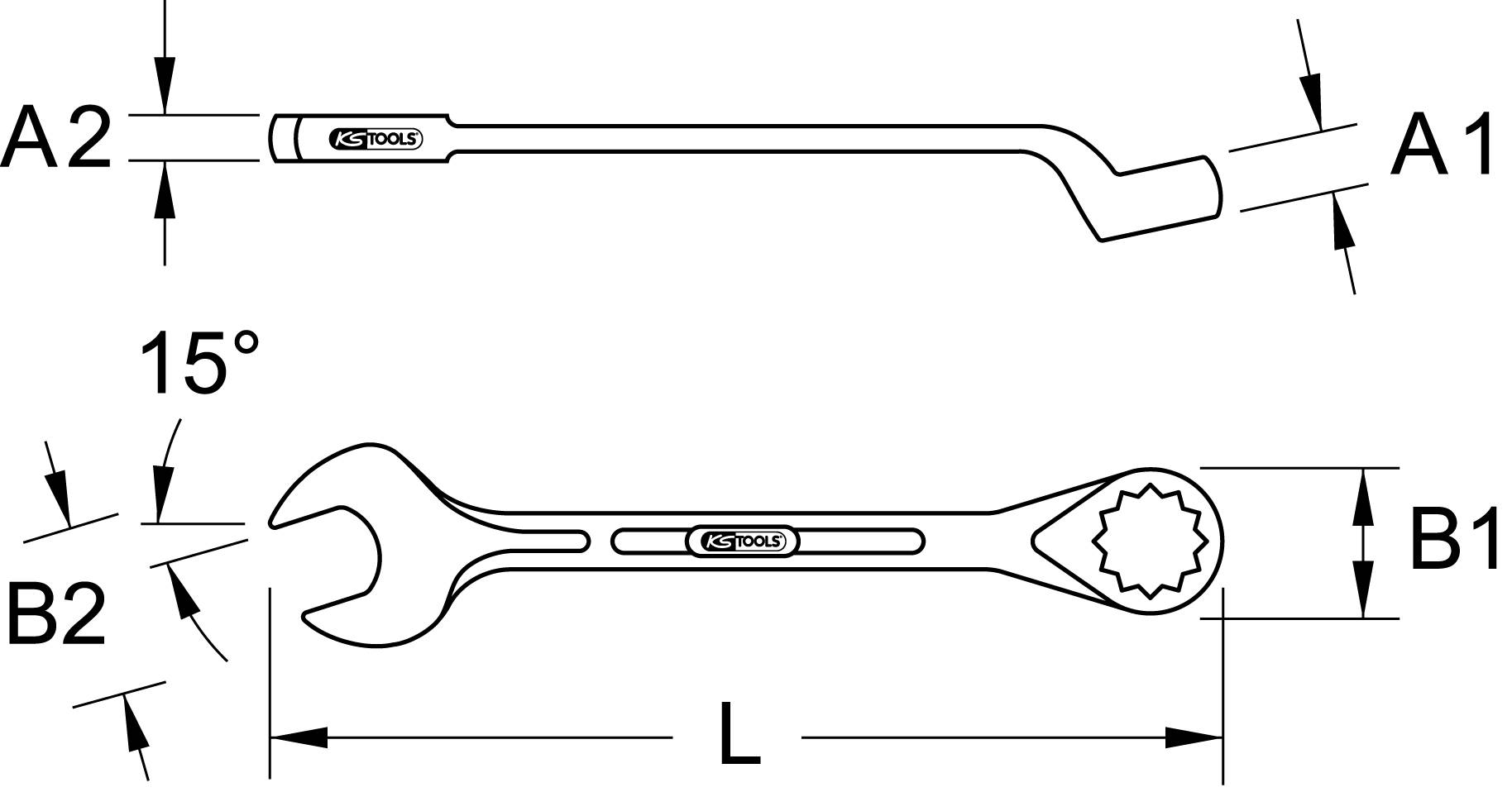

Figure shows a 15° ring spanner with two different views: above with measured angles and dimensions A1, A2, B1, B2 and L.
1/2
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 184.99 / piece)
€ 184.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Weight 1260 gMaterial 1: Finest chromium-vanadium steel, matt chrome-plated Variant items : 517.2601 Total length L in mm: 510 mmStandard DIN 3113 Form B, ISO 3318, ISO 7738 Profile 1: 12-edge Profil2: Inches Outer dimension B1: 60 mmOuter dimension B2 85 mmHead height (A1) 13.5 mmHead height (A2) 13.5 mmKey form: Offset ring 70°, angled at 10° Width across flats 1.5/8"
Product type

Crowfoot wrench

Size

1 5/8"

No. of teeth

12

Length

510 mm

Material

Chromium-vanadium steel

DIN standard

DIN 3113-B

Width

85 mm

Height

510 mm

Weight

1260 g

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2688687 KS Tools 517.2626 5172626 Crowfoot wrench Spanner size (inches) 1 5/8"

Description

Flank Traction profileDIN 3113 SHAPE B / ISO 3318 / ISO 7738Jaw setting 15 ° angledRing 70° offsetRing at 10° anglematt satinChrome Vanadium

This text is machine translated.
