Name: KS Tools 620.0706 Hydraulic puller Clamping range (details) 80 -250 mm No. of hooks 2
Brand: KS Tools
SKU: 2695342
Availability: InStock

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

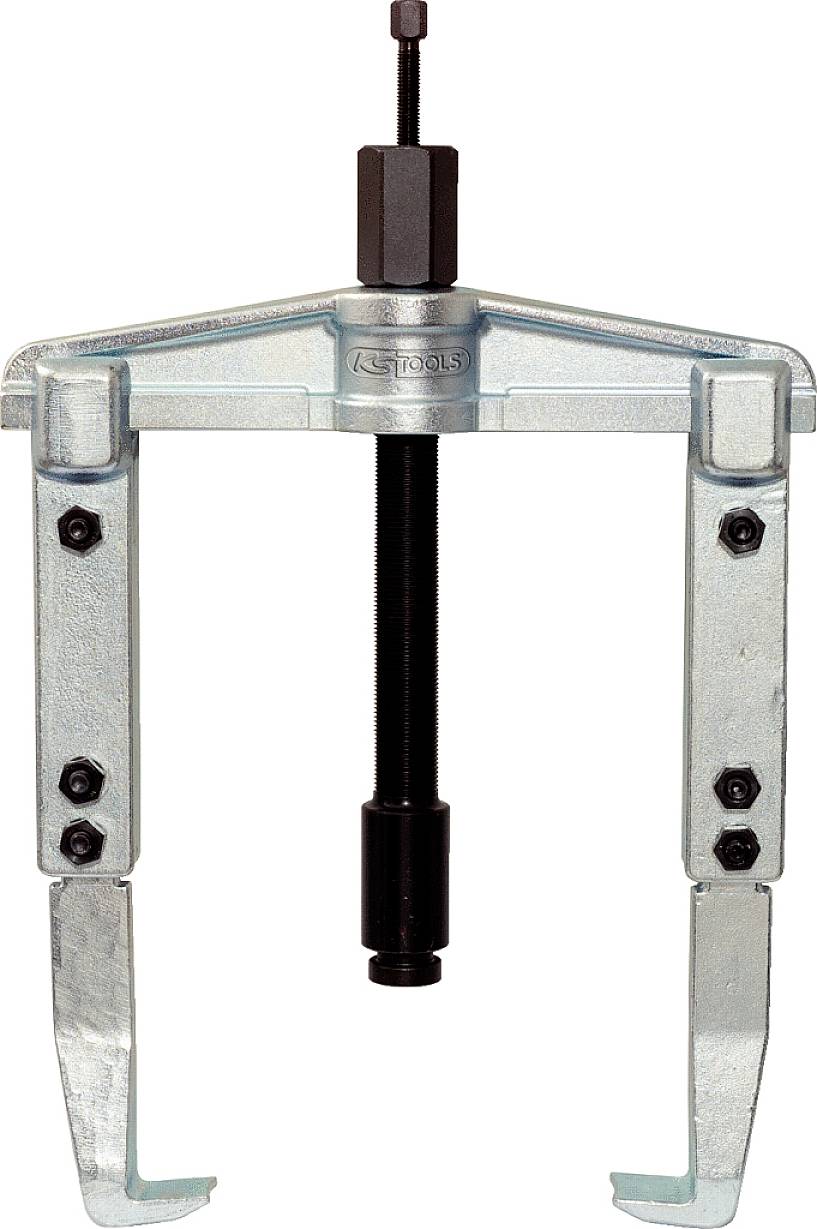

A metallic puller with two movable arms and a central screw, used for removing bearings or gears.

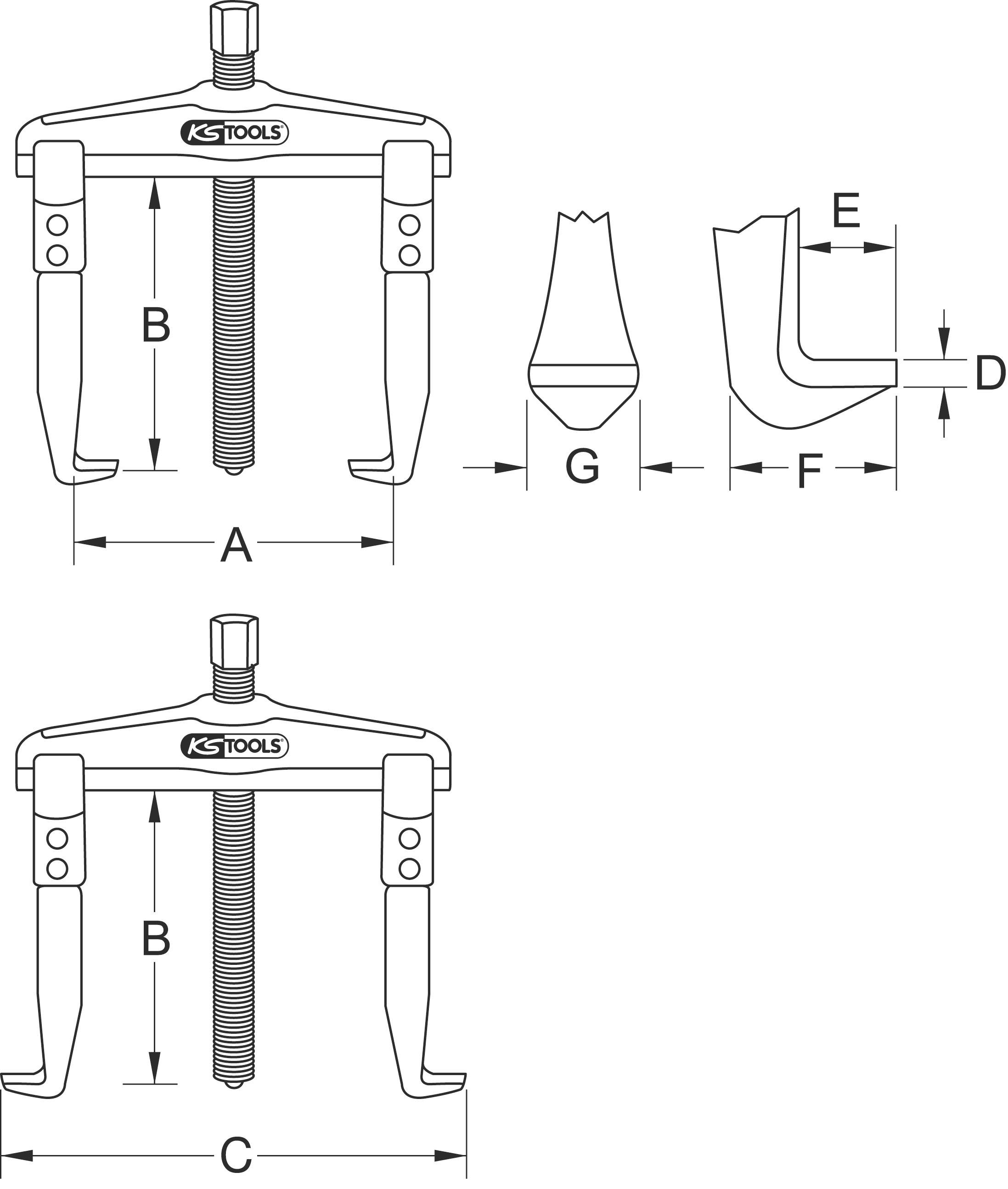

Technical drawing of two extractors with dimensions A, B, C, D, E, F and G. Top with two arms, bottom with three, to illustrate the arrangement.

1/2

Dispatches on Thu 15 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 525.00 / piece)

€ 525.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Pull hook width G: 35 mm
Pull hook total depth F: 54 mm
Pull hook height D 5 mm
Pull hook tip depth E: 25 mm
Number of pull hooks: With 2 pull-off hooks
Hexagon drive in mm: 13 mm
Torque max Nm:60 Nm
Function attribute 1: Reversible, interior/exterior removal
Weight 11100 g
Hydraulic spindle no.: 615.0002
Material1: Special tool steel
max. Compressive strength KN: 120
max. Compression force Nm: 60
max. Pressure force t: 12
Quick adjustment: No. nein
Clamping depth B in mm 325 mm
Span A in mm 80-250 mm
Wingspan exterior puller C: 160-330
Span up to [mm]: 250 mm
Span [mm]: 80 mm
Variant items : 620.0701

Clamping range: 80 -250 mm

Tension/pressure capacity: 12 t

Weight: 11100 g

Content: 1 pc(s)

Hooks: 2

Product type: Hydraulic puller

Span width (max.): 250 mm

Span depth (max.): 325 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Span depth (max.)

Span width (max.)

KS Tools 620.0706 Hydraulic puller Clamping range (details) 80 -250 mm No. of hooks 2

Item no:2695342

Dispatches on Thu 15 Oct

1 Piece(s)Conrad Electronic

This article

325 mm

250 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 525.00^*

KS Tools 620.0702 Hydraulic puller Clamping range (details) 50 - 200 mm No. of hooks 2

Item no:2695338

Dispatches on Thu 15 Oct

2 Piece(s)Conrad Electronic

225 mm

200 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 375.00^*

KS Tools 620.0705 Hydraulic puller Clamping range (details) 110 - 520 mm No. of hooks 2

Item no:2695341

Dispatches on Thu 15 Oct

4 Piece(s)Conrad Electronic

225 mm

520 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

KS Tools 620.0707 Hydraulic puller Clamping range (details) 80 - 350 mm No. of hooks 2

Item no:2695343

Dispatches on Thu 15 Oct

2 Piece(s)Conrad Electronic

325 mm

350 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 565.00^*

KS Tools 620.0708 Hydraulic puller Clamping range (details) 110 - 520 mm No. of hooks 2

Item no:2695344

Dispatches on Thu 15 Oct

1 Piece(s)Conrad Electronic

325 mm

520 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 669.00^*

KS Tools 620.0710 Hydraulic puller Clamping range (details) 80 - 350 mm No. of hooks 2

Item no:2695346

Dispatches on Thu 15 Oct

1 Piece(s)Conrad Electronic

425 mm

350 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

KS Tools 620.0711 Hydraulic puller Clamping range (details) 110 - 520 mm No. of hooks 2

Item no:2695347

Dispatches on Thu 15 Oct

2 Piece(s)Conrad Electronic

425 mm

520 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 669.00^*

KS Tools 620.0701 Hydraulic puller Clamping range (details) 50 - 160 mm No. of hooks 2

Item no:2695337

Unavailable

Conrad Electronic

225 mm

160 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 375.00^*

KS Tools 620.0703 Hydraulic puller Clamping range (details) 80 -250 mm No. of hooks 2

Item no:2695339

Unavailable

Conrad Electronic

225 mm

250 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

KS Tools 620.0704 Hydraulic puller Clamping range (details) 80 - 350 mm No. of hooks 2

Item no:2695340

Unavailable

Conrad Electronic

225 mm

350 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 569.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695342 KS Tools 620.0706 Hydraulic puller Clamping range (details) 80 -250 mm No. of hooks 2

Description

It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadIncluding hydraulic pressure spindleLow force requiredSpecial tool steel
