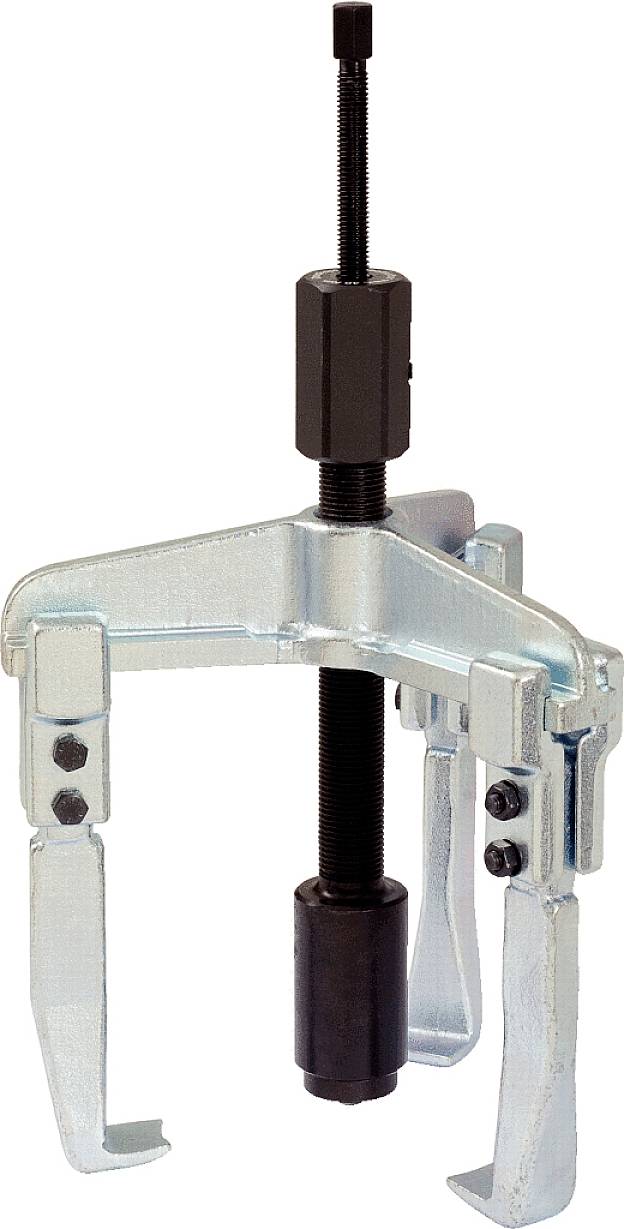

KS Tools 630.0302 Hydraulic puller Clamping range (details) 60 - 200 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 405.00 / piece)
€ 405.00
incl. VAT
Only 2 Piece(s) available
Technical specifications

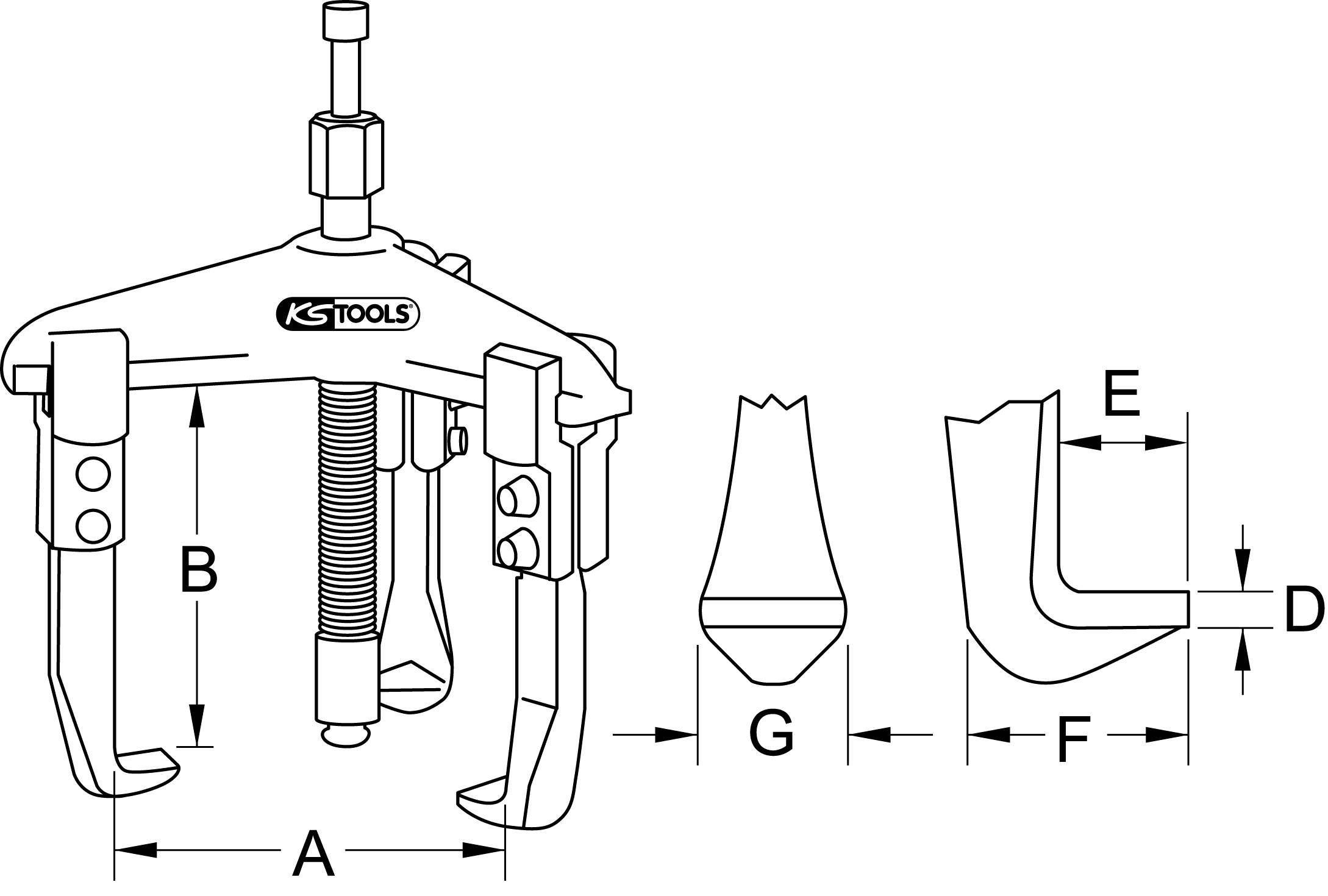

- Pull hook width G: 25 mm
- Pull hook total depth F: 35 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 16 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 32 mm
- Torque max Nm:60 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 4400 g
- Hydraulic spindle no.: 615.0003
- Material1: Special tool steel
- max. Compressive strength KN: 120.0
- max. Compression force Nm: 60
- max. Pressure force t: 12
- Quick adjustment: No. nein
- Clamping depth B in mm 145 mm
- Span A in mm 60-200 mm
- Wingspan exterior puller C: 150-255
- Span up to [mm]: 200 mm
- Span [mm]: 60 mm
- Variant items : 630.0301
- Additional outer hexagon drive in mm: 13 mm
- Clamping range
60 - 200 mm
- Tension/pressure capacity
12 t
- Weight
4400 g
- Content
1 pc(s)
- Hooks
3
- Product type
Hydraulic puller
- Span width (max.)
200 mm
- Span depth (max.)
145 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695449 KS Tools 630.0302 Hydraulic puller Clamping range (details) 60 - 200 mm No. of hooks 3
Description
Even load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookDifferent hook variants can be retrofittedIncluding hydraulic pressure spindleLess force requiredSpecial tool steel
This text is machine translated.
This text is machine translated.
