KS Tools 630.1101 Puller Clamping range (details) 20 - 90 mm No. of hooks 3

A three-pronged metal puller with a black screw mechanism in the centre, used for loosening stuck components.

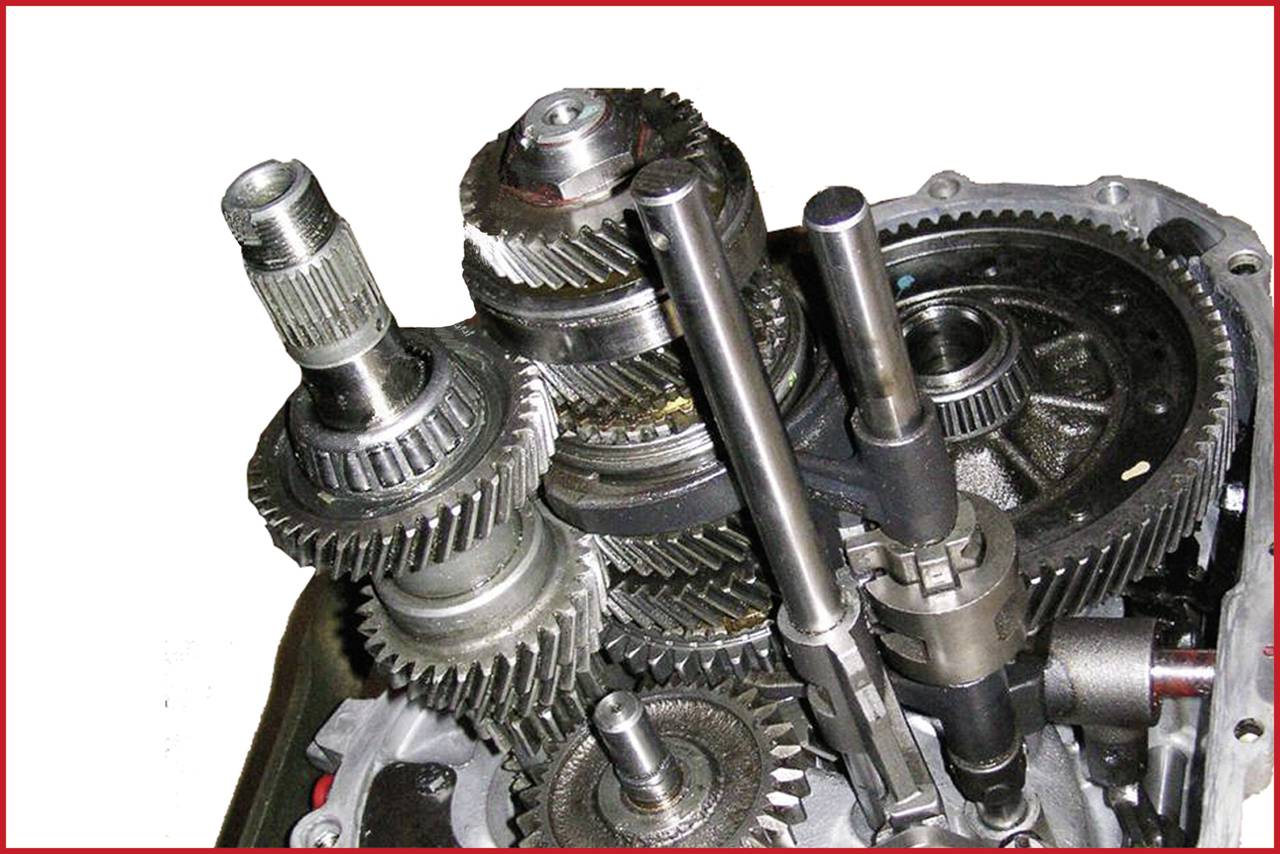

An open gearbox with multiple gears and shafts. The complex arrangement of gear segments reveals mechanical details.
'Two-legged Puller' with dimensional specifications: 'A', 'B', 'D', 'E', 'F', 'G'. 'KS TOOLS' logo. Tool schematic with a technical focus.
1/3
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 144.99 / piece)
€ 144.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Pull hook width G: 27 mm
  • Pull hook total depth F: 13 mm
  • Pull hook height D 3.6 mm
  • Pull hook tip depth E: 6 mm
  • Number of pull hooks: With 3 pull-off hooks
  • Hexagon drive in mm: 17 mm
  • Torque max Nm:90 Nm
  • Shape: Slim design
  • Function attribute 1: Reversible, interior/exterior removal
  • Weight 1300 g
  • Material1: Special tool steel
  • max. Compressive strength KN: 5.0
  • max. Compression force Nm: 90
  • max. Pressure force t: 5
  • Quick adjustment: Yes
  • Clamping depth B in mm 100 mm
  • Span A in mm 20-90 mm
  • Wingspan exterior puller C: 80-125
  • Span up to [mm]: 90 mm
  • Span [mm]: 20 mm
  • Spindle size mm: M14x1.5 x 130
  • Variant items : 630.1101
Clamping range

20 - 90 mm

Tension/pressure capacity

5 t

Weight

1300 g

Content

1 pc(s)

Hooks

3

Product type

Puller

Span width (max.)

90 mm

Span depth (max.)

100 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695455 KS Tools 630.1101 Puller Clamping range (details) 20 - 90 mm No. of hooks 3

Description

With quick clampIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel

This text is machine translated.
