KS Tools 630.3802 Hydraulic puller Clamping range (details) 50 - 350 mm No. of hooks 3

Metallic puller for the assembly and disassembly of bearings or gears in mechanical applications.

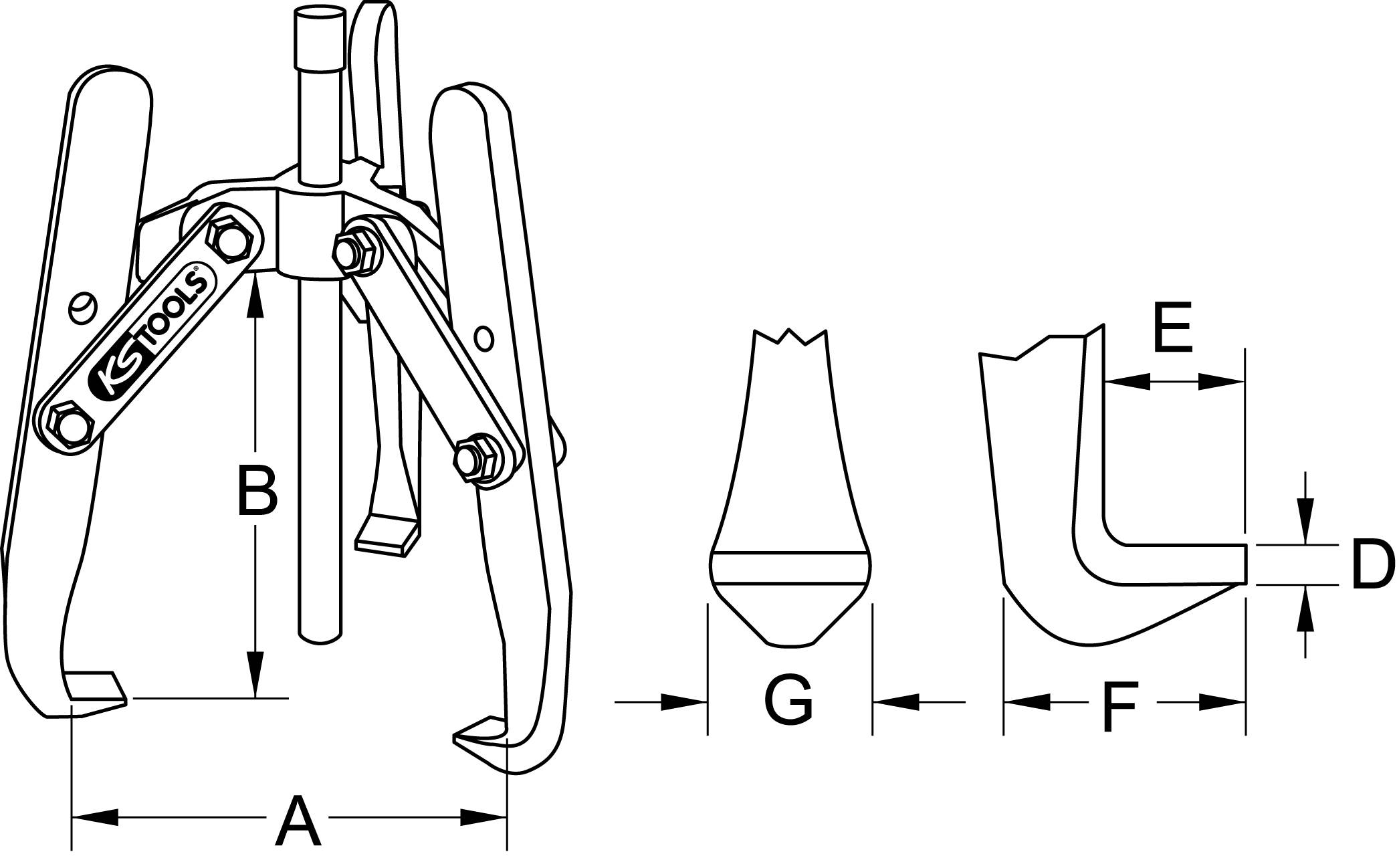

Extractor Diagram with Measurements: A (Width), B (Height), D (Pointed Measurement), E (Hook Width), F (Hook Height), G (Grip Width). Tool illustrated.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 445.00 / piece)
€ 445.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Pull hook width G: 30 mm
  • Pull hook total depth F: 48 mm
  • Pull hook height D 5 mm
  • Pull hook tip depth E: 25 mm
  • Number of pull hooks: With 3 pull-off hooks
  • Hexagon drive in mm: 17 mm
  • Torque max Nm:60 Nm
  • Functional attribute 1: Adjustable clamping depth
  • Weight 13500 g
  • Material1: Special tool steel
  • max. Compressive strength KN: 120.0
  • max. Compression force Nm: 60
  • max. Pressure force t: 12
  • Quick adjustment: No. nein
  • Clamping depth B in mm 350 mm
  • Span A in mm 50-350 mm
  • Span up to [mm]: 350 mm
  • Span [mm]: 50 mm
  • Spindle size mm: M14x1.5 x 100
  • Variant items : 630.3801
Clamping range

50 - 350 mm

Tension/pressure capacity

12 t

Weight

13500 g

Content

1 pc(s)

Hooks

3

Product type

Hydraulic puller

Span width (max.)

350 mm

Span depth (max.)

350 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695484 KS Tools 630.3802 Hydraulic puller Clamping range (details) 50 - 350 mm No. of hooks 3

Description

The clamping depth of hooks can be adjustedEven load distribution and centered tighteningVarious hook variants and hydraulic spindle can be retrofittedIncluding hydraulic pressure spindleLess force requiredSpecial tool steel
