KS Tools 640.0250 Puller Clamping range (details) 1000 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 2,469.00 / piece)
€ 2,469.00
incl. VAT
Only 2 Piece(s) available
Technical specifications

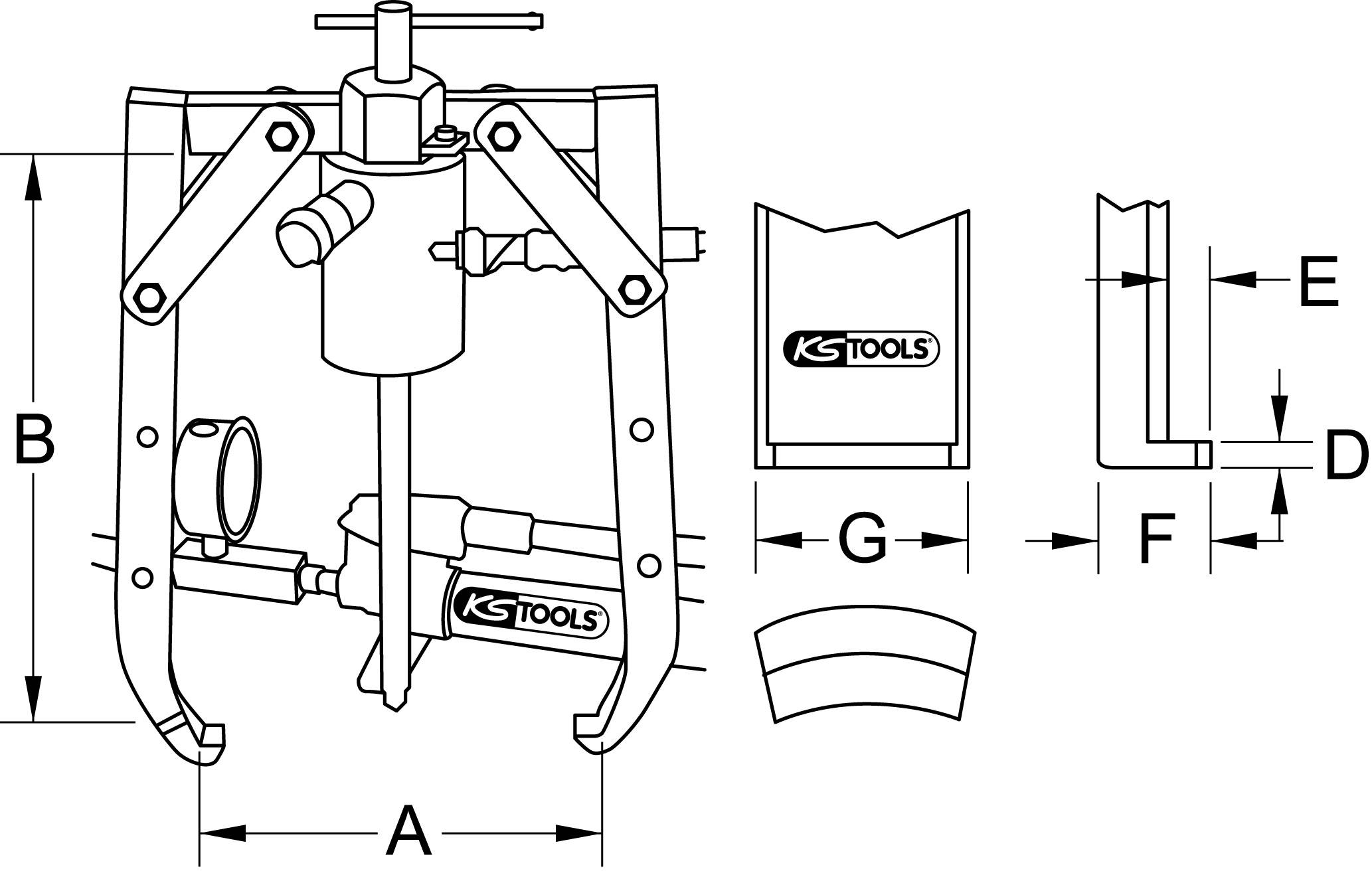

- Pull hook width G: 50 mm
- Pull hook total depth F: 87 mm
- Pull hook height D 35 mm
- Pull hook tip depth E: 42 mm
- Number of pull hooks: With 2 pull-off hooks
- Torque max. Nm: - Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 50000 g
- Material1: Special tool steel
- max. Compressive strength KN: 500.0
- max. Pressure force t: 50
- Quick adjustment: No. nein
- Clamping depth B in mm 700 mm
- Span A in mm 1000 mm
- Variant items : 640.0220
- Clamping range
1000 mm
- Tension/pressure capacity
50 t
- Weight
50000 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
1000 mm
- Span depth (max.)
700 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695514 KS Tools 640.0250 Puller Clamping range (details) 1000 mm No. of hooks 2
Description

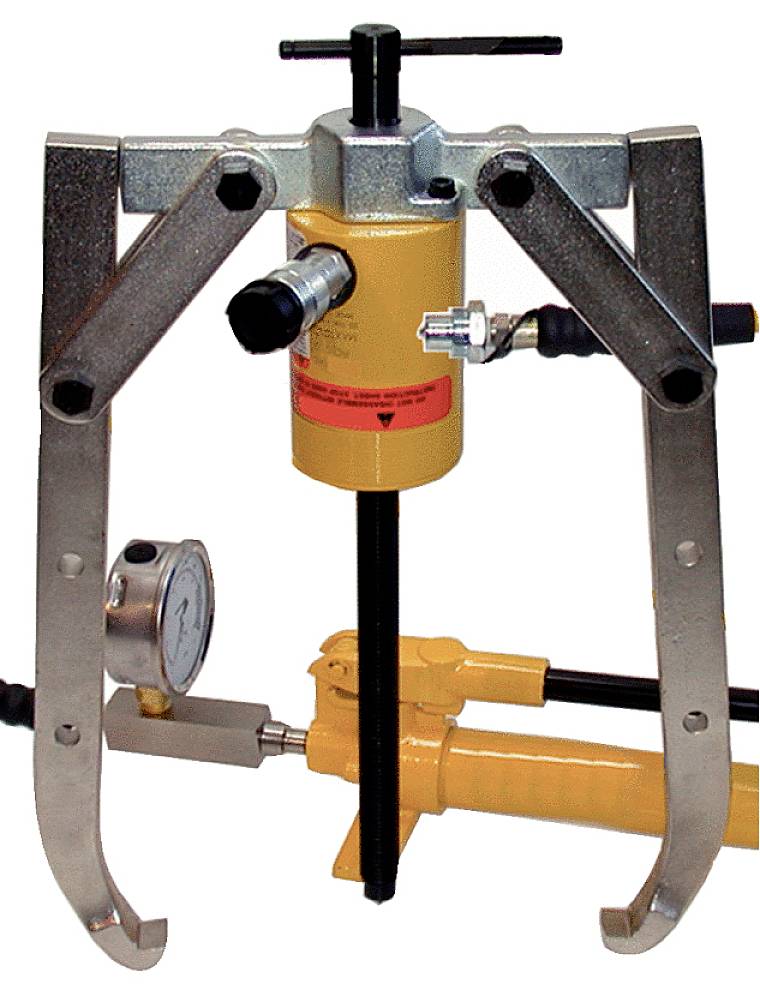

Consisting of a crossbar and hookIt can be used as inside or outside puller by changing the hookWithout hydraulic pressure spindle/without hydraulic cylinderWithout hydraulic pumpSpecial tool steel
