KS Tools 670.0181 Ball joint punch Clamping range (details) 45 mm

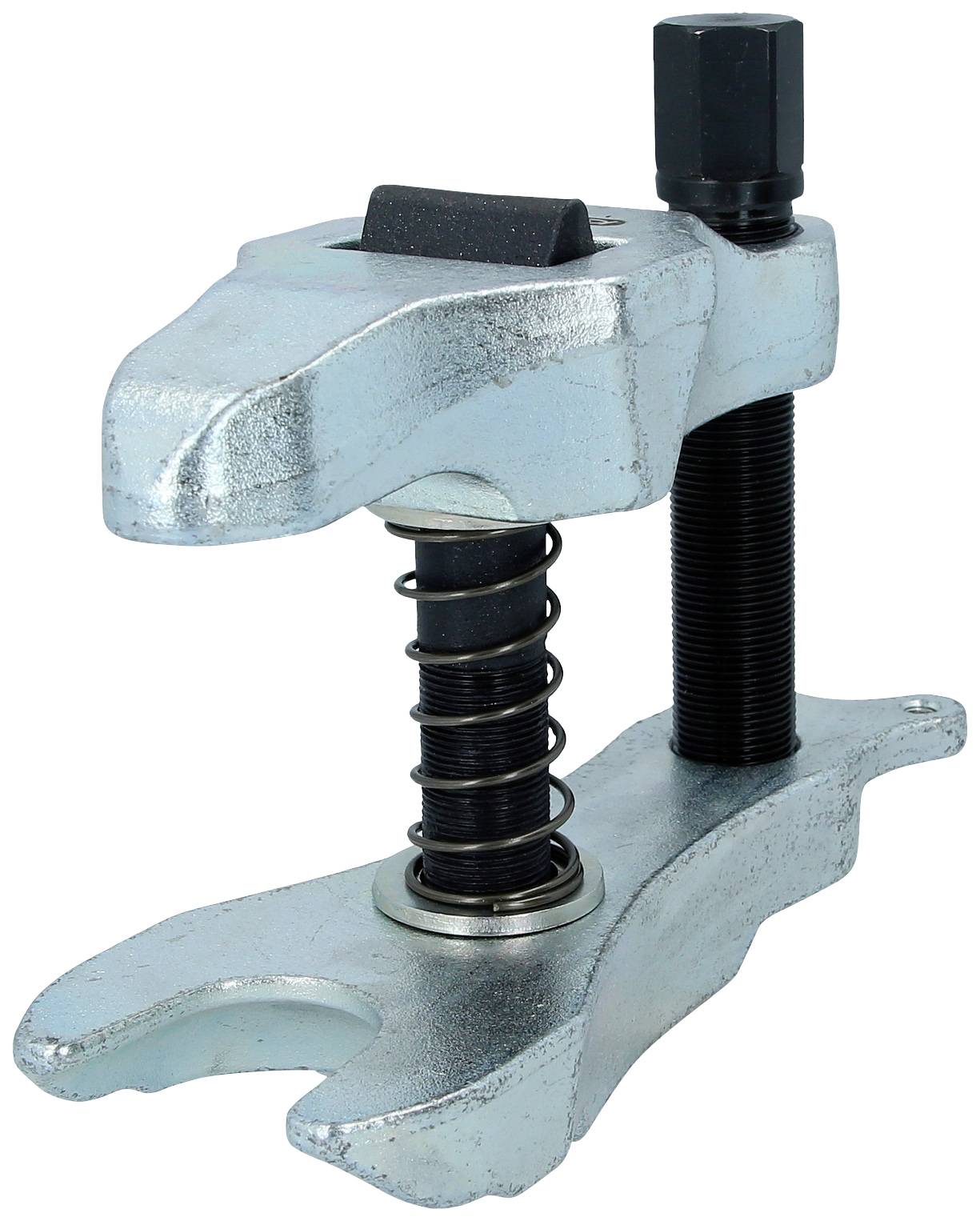

A silver ball joint puller with threaded spindle and spring mechanism, used for removing ball joints in vehicles.

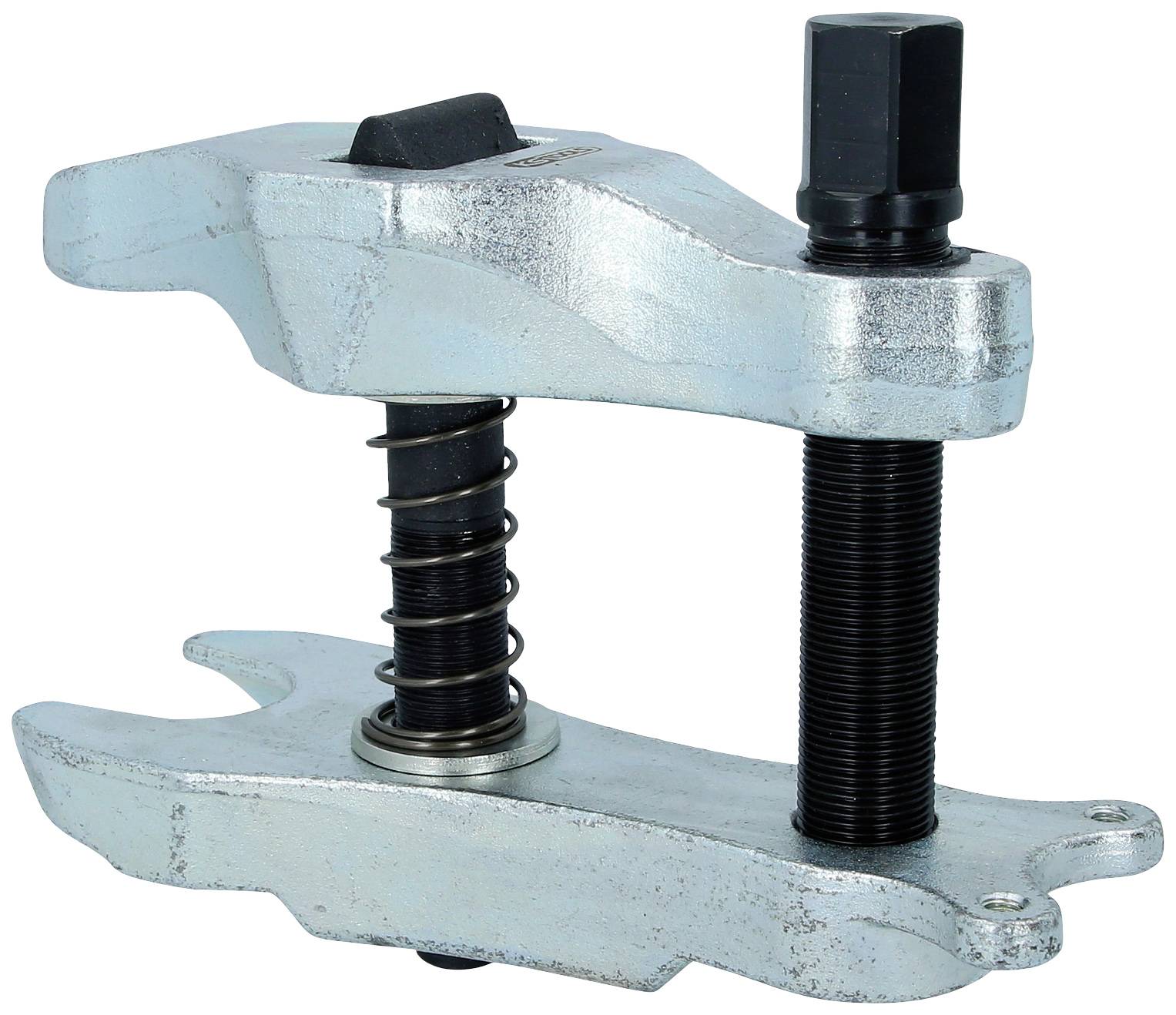

Two-armed metal puller with screw. Used for removing tightly fitted components such as bearings or gears.

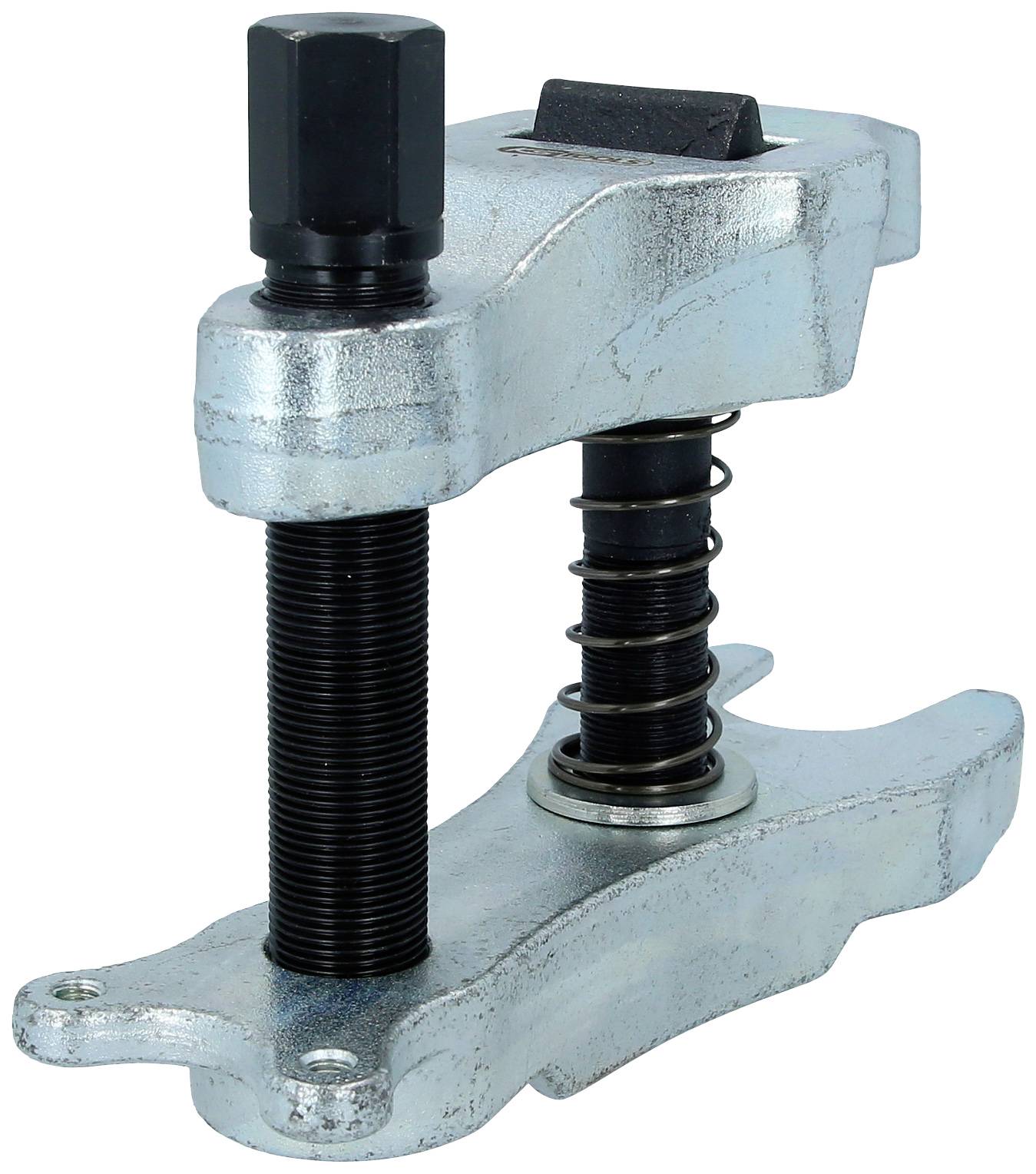

A silver puller with a threaded screw for removing bearing bushes or similar automotive parts, showing a robust metal construction.

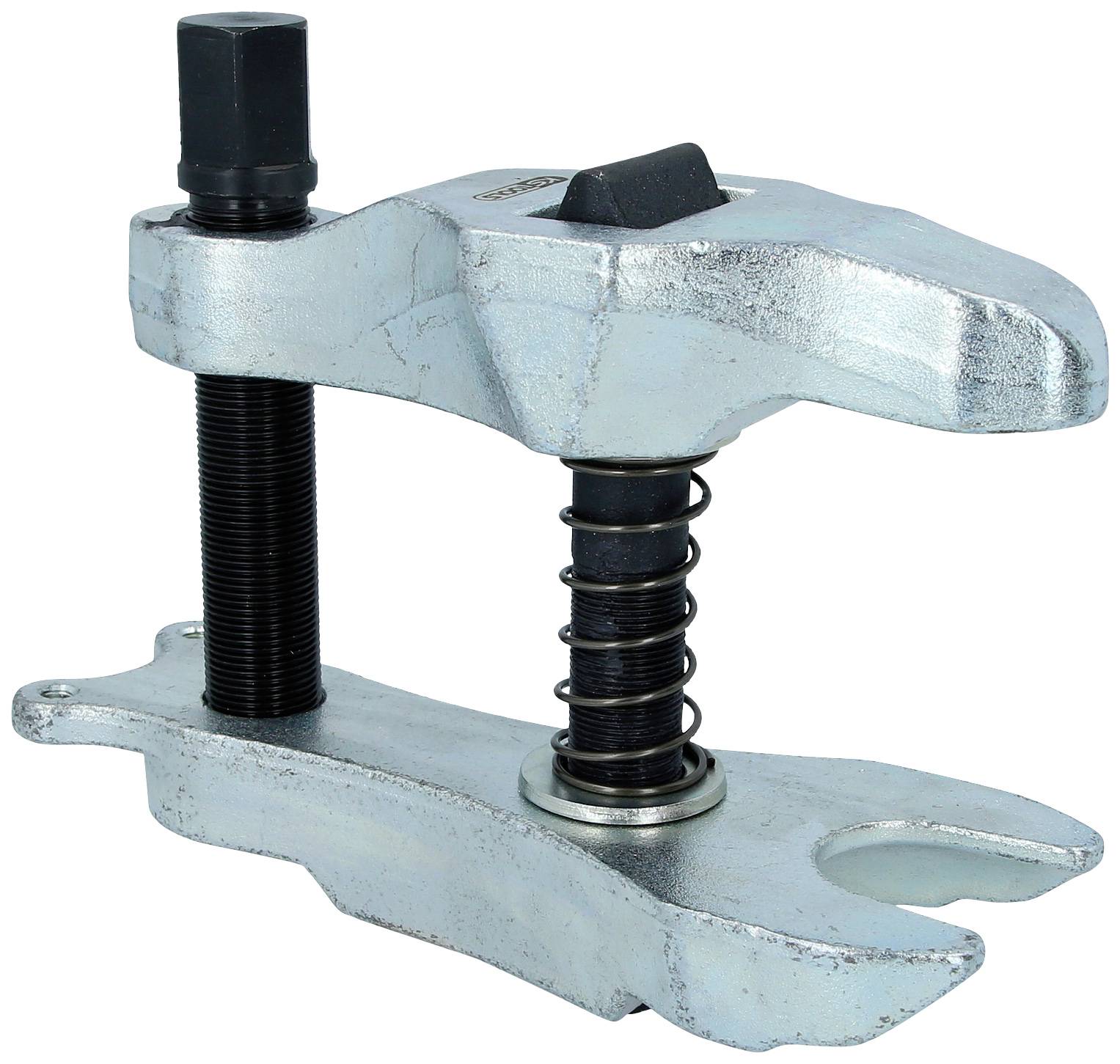

A metal tool clamp with a large screw in the centre and a spring for holding or gripping objects.

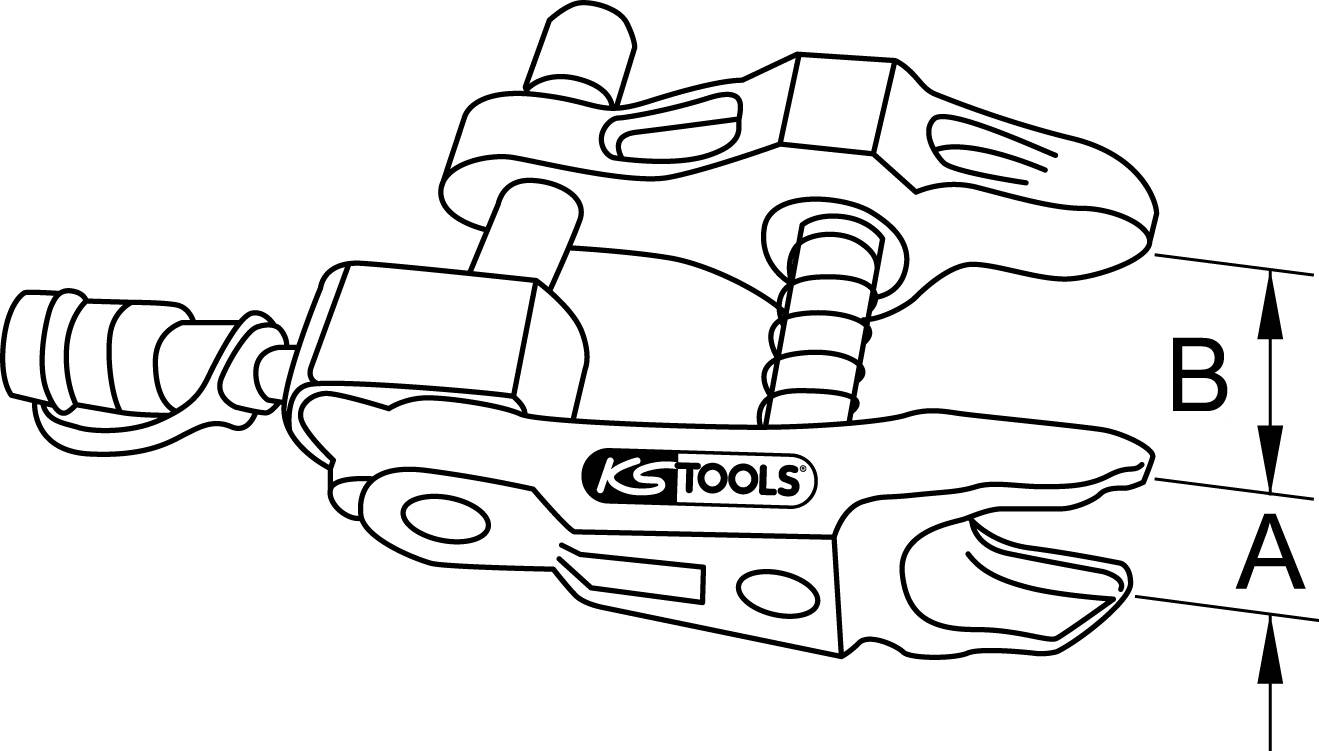

'KS TOOLS' puller diagram shows tool elements, levers and screws. Areas A and B are marked, details not specified.
1/5
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 289.00 / piece)
€ 289.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Hexagon drive in mm: 27 mm
  • Bolt diameter 35-45 mm
  • Torque max. Nm: - Nm
  • Weight 6000 g
  • Material1: Special tool steel
  • max. Compressive strength KN: 200.0
  • max. Compression force Nm: 200
  • max. Pressure force t: 20
  • Clamping depth B in mm 115 mm
  • Span A in mm 45 mm
  • Spindle size MM: G3/4"x14gx125
Clamping range

45 mm

Tension/pressure capacity

20 t

Weight

6000 g

Content

1 pc(s)

Product type

Ball joint punch

Span width (max.)

45 mm

Span depth (max.)

115 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695636 KS Tools 670.0181 Ball joint punch Clamping range (details) 45 mm

Description

To press out the ball pins when removing the ball jointsSuitable for many heavy trucks, buses and low-floor busesFor bolts Ø 35.0 - 45.0mmSpecial tool steelFor use with flat cylinder 640.0140 / 640.0150
