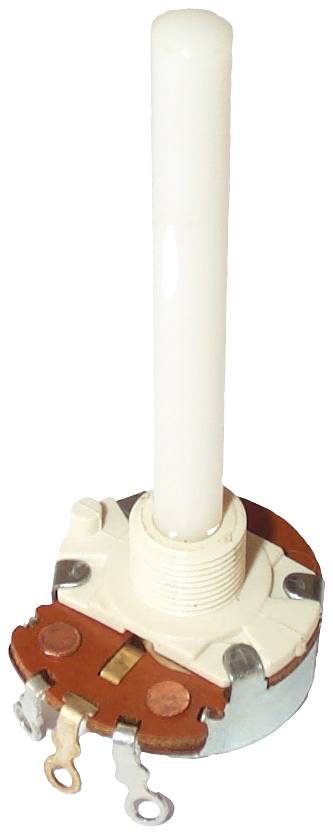

KYOCERA/AVX 104701778 104701778 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
1 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.5 W
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Only 10 Piece(s) available
Highlights & Details
- 1 kΩ
- linear
Technical specifications
- Product type
Single turn rotary pot
- Resistance
1 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.5 W
- Cut-off voltage
500 V
- Connection
Solder tag
- Mechanical angle
320°
- Electrical angle
270°
- Actuating force
3.6 Ncm
- Impact tolerance
113 Ncm
- Axle length
50 mm
- Axle Ø
6 mm
- Thread size
M10
- Thread length
8 mm
- Case dimensions
24 mm
- Length
11.5 mm
- (Ø)
24 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Temperature coefficient
500 ppm/°C
- Tolerance ±
0.2 %
- Content
1 pc(s)
- Type
104701778
- Dim
(Ø x L) 24 mm x 11.5 mm
Documents & Downloads
Datasheet
Datasheet 2827088 KYOCERA/AVX 104701778 104701778 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2827088 KYOCERA/AVX 104701778 104701778 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)
Description
Scope of delivery
- 104701778.
