Passive ComponentsPotentiometersRotary Potentiometers

KYOCERA/AVX 104701779 104701779 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)

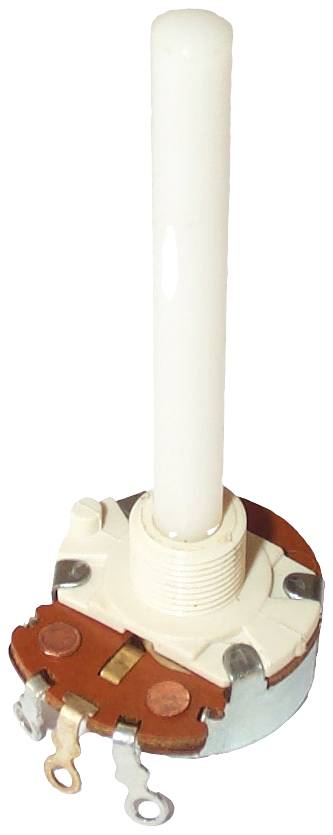

A rotary potentiometer with a long, white plastic shaft and three terminals. Used for controlling electrical signals.
Product type
Single turn rotary pot
Resistance
1 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.5 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
5 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

  • 1 kΩ
  • linear

Technical specifications

Product type

Single turn rotary pot

Resistance

1 kΩ

Resistance characteristic

linear

Output

Mono

Power rating

0.5 W

Cut-off voltage

500 V

Connection

Solder tag

Mechanical angle

320°

Electrical angle

270°

Actuating force

3.6 Ncm

Impact tolerance

113 Ncm

Axle length

50 mm

Axle Ø

6 mm

Thread size

M10

Thread length

8 mm

Case dimensions

24 mm

Length

11.5 mm

(Ø)

24 mm

Min. temperature

-25 °C

Max. temperature

+70 °C

Temperature coefficient

500 ppm/°C

Tolerance ±

0.2 %

Content

1 pc(s)

Type

104701779

Dim

(Ø x L) 24 mm x 11.5 mm

Documents & Downloads

Datasheet

Datasheet 2827089 KYOCERA/AVX 104701779 104701779 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2827089 KYOCERA/AVX 104701779 104701779 Single turn rotary pot Mono 0.5 W 1 kΩ 1 pc(s)

Description

Scope of delivery

  • 104701779.
