Kyoritsu KEW 6516 Electrical tester VDE standard 0100-600, 0105-100
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,815.00 / piece)
€ 1,815.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

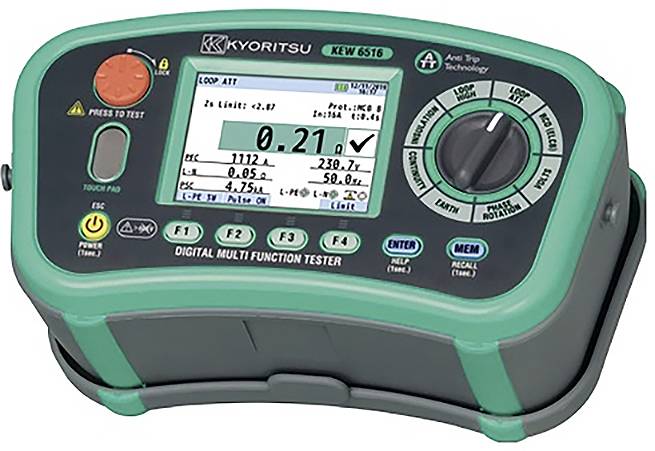

Kyoritsu KEW 6516 multifunction tester
- 12 functions in 1
- Insulation
- Loop
- RCD
- PSC
- PFC
- Earthing
- ACV
- Continuity
- Phase rotation
- Frequency
- SPD (varistor)
- PAT
- Insulation measurement range 2/20/200/1000M/2000MOhm
- TEST VOLTAGE 100V/250V/500V/1000V
- Colour display LCD 3.5 inch dot matrix
- Communication interface USB
Technical specifications
- Measuring range (VDE): Low ohm: 0.00–2000 Ω; Insulation: Up to 1000 MΩ; Loop: 0.00–2000 Ω
- Measurement of RCD type B and 6mA DC (EV) for Wallboxes
- Anti-Trip technology (ATT) for loop measurement without RCD tripping
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
CAT III 600 V
- Interfaces
USB
Bluetooth®
- Dim
(L x W x H) 114 x 235 x 136 mm
- Weight
1580 g
IP40
- Reading range (VDE)
Voltage
Resistance
Earth resistance
Loop impedance
Insulation resistance
Frequency
- DIN standard
DIN EN 61010-1
DIN EN 61557
- Display type
Digital (LCD)
- Accuracy
2 %
- Calibration service
RCD testing (type A, AC, F, B, B+, EV), loop impedance (ATT procedure without triggering), earthing measurement, rotary field
- Width
235 mm
- Height
136 mm
- Length
114 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory (space)
1000
- Memory
Yes
- Type
KEW 6516
- VDE standard
0100-600
0105-100
- Features
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 3642391 Kyoritsu KEW 6516 Electrical tester VDE standard 0100-600, 0105-100
User & Safety Instructions
User & Safety Instructions 3642391 Kyoritsu KEW 6516 Electrical tester VDE standard 0100-600, 0105-100
Description
Kyoritsu multifunction tester KEW 6516
This text is machine translated.
This text is machine translated.
Scope of delivery
- KEW 6516
- Test leads (7272, 7228A)
- Ground spikes
- Alligator clips
- Remote control probe (7196A)
- Carrying case
- Shoulder strap
- Batteries
- Calibration certificate
- PC software (KEW Report)
