Benning IT 115 Electrical tester VDE standard 0100, 0105
EAN:
Part number:
Item no:
Number
Total (€ 1,041.18 / piece)
€ 1,041.18
plus VAT.
Highlights & Details
TRUE RMS installation tester BENNING IT 115
- Testing of electrical installations according to VDE 0100/0105 and IEC 60364
Technical specifications
- Graphic display (illuminated)
- Measurement range ohm resistance: 0.01 Ω - 2000 Ω
- Test current 200 mA
- Test voltage: 50 V/100 V / 250V / 500V / 1000 V
- Measuring range cable impedance: 0.01 Ω - 10 kΩ
- Measuring range loop impedance: 0.01 Ω - 10 K
- Short circuit current: 0.01 A - 200 kA
- FI-test (RCD): Type AC, A F
- Measuring range 1 V - 550 V (TRUE RMS)
- Frequency measuring range: 0 Hz - 500 Hz (TRUE RMS)
- Earthing (optionally via earthing set)
- Product type
Electrical tester
Manufacturer's standards (with certificate)
- Dim
(L x W x H) 115 x 103 x 230 mm
- Weight
1.5 kg
- Reading range (VDE)
Wave impedance
Loop impedance
Insulation resistance
Earth leakage resistance
Voltage
Current
Resistance
Frequency
- DIN standard
DIN IEC 60364
- Display type
Digital (LCD)
- Width
103 mm
- Height
230 mm
- Length
115 mm
- Voltage supply
Rechargeable
- Type
IT 115
- VDE standard
0100
0105
- Features
RCD/FI testing
- Power supply (details)
6 NiMH-batteries (AA)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1426782 Benning IT 115 Electrical tester VDE standard 0100, 0105
User & Safety Instructions 1426782 Benning IT 115 Electrical tester VDE standard 0100, 0105
Information
Information 1426782 Benning IT 115 Electrical tester VDE standard 0100, 0105
Description

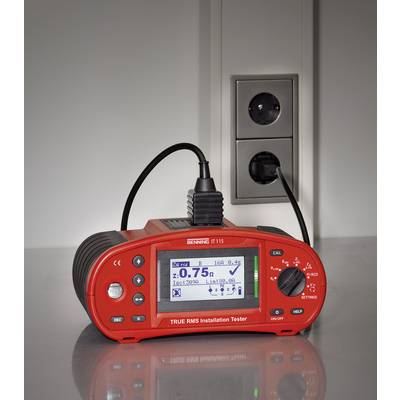

BENNING IT 115 TRUE RMS installation tester-Top in price and performance. Technical safety testing of electrical installations according to the construction, change according to DIN VDE 0100-600 or as a regular periodic testing according to DIN VDE 0105-100 can be carried out with the BENNING IT 115 simply and rationally. The measurement functions are arranged clearly and can be selected via rotary switch. In addition to the Testing of FI/RCD protection switch Type AC, A and F with display of the contact voltage, tripping time and the tripping current (ramp method), enables the test device the measurement of low-ohm/insulation resistance, line impedance with voltage drop, loop impedance (with/without RCD tripping), as well as the measurement of rotating field, voltage and frequency. The measurement result is with clearer good/bad display via green/red LED on the test device is visible. The large display of (illuminated) are the measurement result and the test parameters are displayed. A good/bad display is also has green/red LED rows on the test device. Via the graphic display, the help function with connection diagram can be selected. The power is supplied via 6 NiMH AA rechargeable batteries, which can be loaded directly in the test device. The supply takes place inclusive padded protective case with strap, Test cable for earthing contact socket-outlet, Universal 3-conductor test lead, test-tips/alligator clip set, charger, 6 AA batteries.
This text is machine translated.
This text is machine translated.
Features
- Testing of electrical installations according to VDE 0100/0105 and IEC 60364
- Easy to use for rational tests
- Help function with connection diagram
- Graphics display with background lighting
- Power supply via 6 NiMH AA rechargeable batteries
- Battery charging function is integrated into the device.
- All measuring functions directly via rotary switch abwahlbar
- Measurement results with unique good/bad display via green/red LED on the test device.

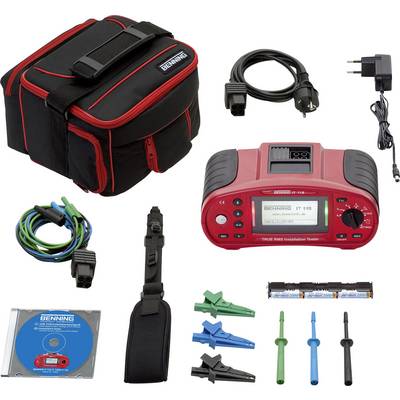

Scope of delivery
- 1 x padded carrying case
- 1 x test cable with protective contact plug
- 1 x Universal 3-conductor test lead (black, blue, green)
- 1 x Test prod set (black, blue, green)
- 1 x alligator clip set (black, blue, green)
- 1 x carrying strap
- 6 x NiMH rechargeable batteries, size AA
- 1x charger
- 1 x CD-Rom with instructions for use and quick instructions in PDF-format
- 1 x quick instructions
- 1x manufacturer's standard certificate
