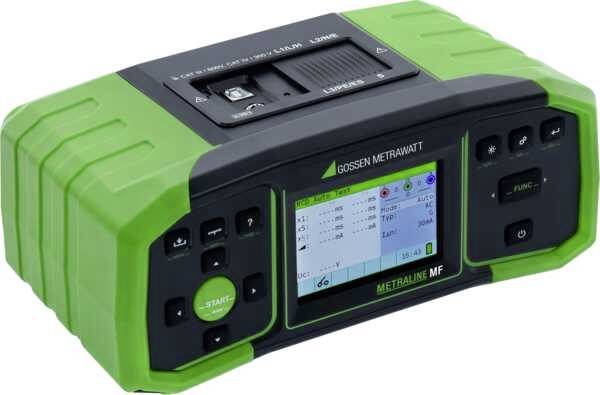

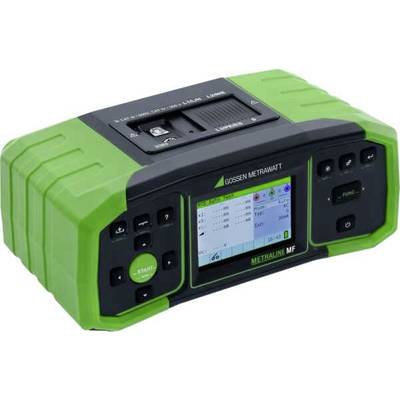

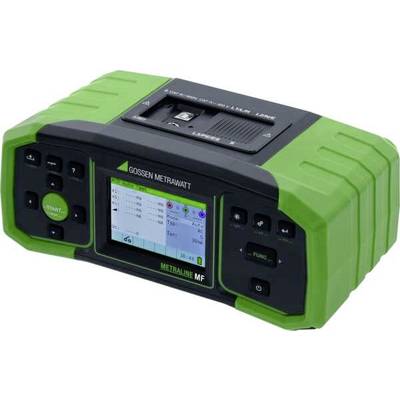

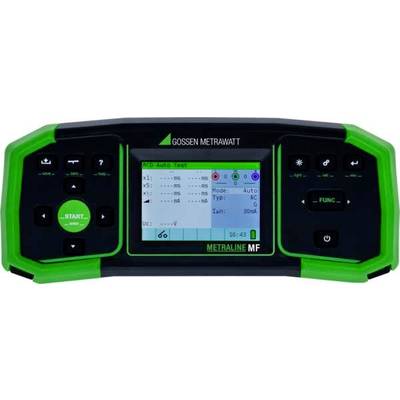

Gossen Metrawatt METRALINE MF Electrical tester VDE standard 0100, 0100-600, 0105-100, 0413, 0122
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,214.29 / piece)
€ 1,214.29
plus VAT.
Highlights & Details
Multifunction tester
- Graphic color display
- Intuitive user guide
- USB interface for updates and evaluation
- Large memory for up to 1000 measurements
Technical specifications
- Product type
Electrical tester
Manufacturer's standards (with certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
1x USB host
- Dim
(L x W x H) 243 x 135 x 105 mm
- Weight
1.4 kg
IP42
- Reading range (VDE)
Earth resistance
Earth fault loop impedance
Insulation resistance
Wave impedance
RCD testing (AC, A, F, B, B+, EV)
Loop impedance
Earth leakage resistance
Voltage
- Display type
Digital (LCD)
- Width
135 mm
- Height
105 mm
- Length
243 mm
- Test procedure
automated
manual
- Voltage supply
230 V/AC
Rechargeable
Battery
- Memory (space)
1000
- Type
METRALINE MF
- VDE standard
0100
0100-600
0105-100
0413
0122
- Features
incl. software
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 3203912 Gossen Metrawatt METRALINE MF Electrical tester VDE standard 0100, 0100-600, 0105-100, 0413, 0122
User & Safety Instructions
User & Safety Instructions 3203912 Gossen Metrawatt METRALINE MF Electrical tester VDE standard 0100, 0100-600, 0105-100, 0413, 0122
Description
The METALLINE MF has a color display and intuitive user interface that makes it easy to use. The modern range of functions includes all the necessary tests for electrical installations, e-mobility and earth measurements. The comfortable control is supported by help images and audio signals. The compact design makes it ideal for mobile use of the device. The user-friendly data management makes possible the storage of up to 1000 measured values as well as the logging of the test results. The device is certified according to IP 40 and CAT III 600 V / CAT IV 300 V.
This text is machine translated.
This text is machine translated.
Features
- Modern functions
- Optimized value for money
- Simple handling through help function and audio signals
- From the tests to the result with just a few clicks
Scope of delivery
- 1X METAL LINE MF (M520F)
- 3x test leads 1 m.
- 3x test tips
- 3x alligator clips
- 1x measuring lead with safety plug
- 1x test lead with test button to trigger a measurement
- 1x USB cable
- 1x rechargeable batteries
- 1 x PSU
- 1x carry bag
- 1x quick user manual
