Buy Chauvin Arnoux C.A 6113 Electrical tester VDE standard 0100, 0105, 0413

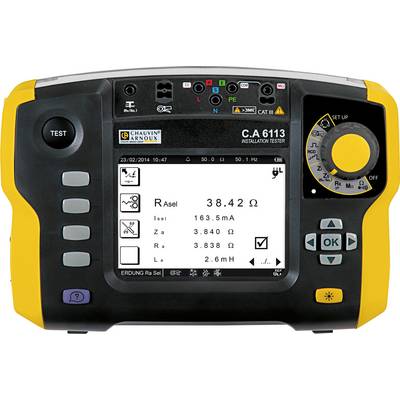

An installation measuring device with a digital display shows resistance measurements in ohms. Control elements and rotary switches are visible.

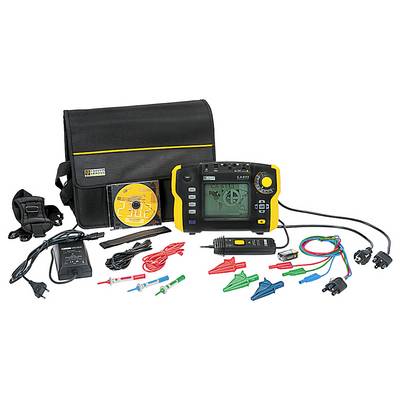

A multimedia measuring device set displays a digital screen. Accessories such as cables, charger, and carrying case are included.

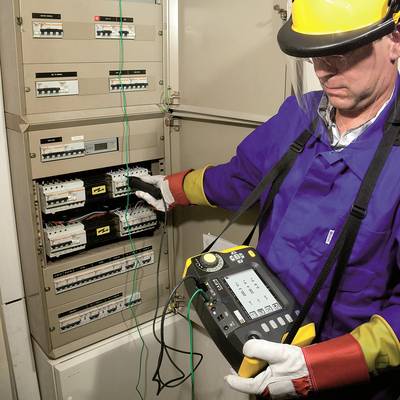

A technician in protective clothing is checking electrical switchboards with a measuring device. Safety measures are being observed.

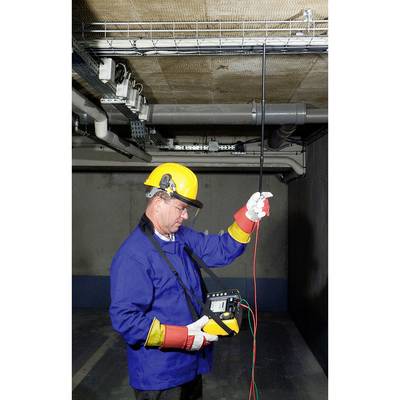

A worker wearing protective clothing and a hard hat is measuring the electrical voltage in a cable within an industrial setting.

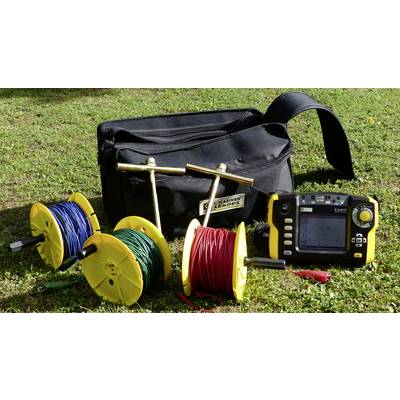

A black bag, three cable reels in blue, green and red, and an electronic measuring device on a meadow; equipment for field measurements.

1/5

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,457.98 / piece)

€

Report legal concerns

Highlights & Details

Chauvin Arnoux C.A 6113 Electrical tester VDE standard 0100, 0105, 0413

17-in-1
600 V CAT III
Complies with DIN VDE 0100-600 / DIN VDE 0105-100 /DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE/ÖNORM E 8001, and NIN/NIV test standards
Suitable for TT, TN and IT earthing arrangements
RCD and FI type AC, A testing
Built-in fuse chart
Li-ion battery

Technical specifications

Continuity/impedance test: Nominal / reading range / resolution:> 200 mA / 39.99 Ω / 0.01 Ω / ± (1.5 % of the displayed value + 2 digits)
12 MA / 39.99 Ω and 399.9 Ω / 0.01 and 0.1 Ω /± (1.5 % of the displayed value + 5 digits) with acoustic signal
Reading range / resolution / accuracy: 4 kΩ / 1 Ω / ± (1.5 % of the displayed value + 5 digits)
40 KΩ - 400 kΩ / 10 Ω - 100 Ω / ± (1.5 % of the displayed value + 2 digits)
IR test (Megger) at 50 / 100 / 250 / 500 / 1000 V DC
Reading range / resolution / accuracy: 0.01 MΩ to 2 GΩ / 10 kΩ to 1 MΩ / ± (5% of the displayed value + 3 digits)
Short circuit current: ≤ 3mA
Earth test: three-pole reading: 0.50 Ω to 40 Ω / 0.01 Ω / ± (2% of the displayed value + 10 digits)
40 Ω to 15 kΩ / 0.1 Ω to 1 Ω / ± (2% of the displayed value + 2 digits)
Reading range / resolution / accuracy: 15 kΩ to 40 kΩ / 10 Ω / ± (10 % of the displayed value + 2 digits)
In addition: impedance reading of RH & RS auxiliary probes (up to 40 kΩ)
Complies with SEV 3569 standard
Selective earth testing (1 probe): 0.20 Ω to 39.99 Ω - 40 Ω to 399.9 Ω / 0.01 Ω - 0.1 Ω / ± (10 % of the displayed value +10 digits) Isel via clamp loop impedance test (ZS (L-PE) and ZI (L-N and L-L)) - voltage load earth testing (1 probe): EARTH TEST DURING OPERATION
System operating voltage / frequency: 90 to 500 V / 15.8 to 17.5 Hz - 45 to 65 Hz
High test current (FI/RCD trip) ZS (L-PE) & ZI (L-N and L-L)
Reading range / resolution/ accuracy: Max. test current: 7.5 A
(0.050) 0.100 Ω to 0.5 Ω / 0.001 Ω / ± (10 % of the displayed value + 20 digits) 0.5 Ω to 3.999 Ω / 0.001 Ω / ± (5% of the displayed value + 20 digits)
3.999 to 39.99 Ω / 0.01 Ω / ± (5% of the displayed value + 2 digits)
39.99 Ω to 399.99 Ω / 0.1 Ω / ± (5% of the displayed value + 2 digits)
No trip (ZS (L-PE) only): test current 6 mA - 9 mA - 12 mA (selectable)
0.20 Ω to 0.99 Ω / 0.01 Ω / ± (15 % of the displayed value + 10 digits)
1.00 to 1.99 Ω / 0.01 Ω / ± (15 % of the displayed value + 3 digits)
2.00 to 39.99 Ω / 0.01 Ω / ± (10 % of the displayed value + 3 digits)
40.00 Ω to 399.9 Ω / 0.1 Ω / ± (5% of the display value + 2 digits)
400 to 3 999 Ω / 1 Ω / ± (5% of the displayed value + 2 digits)
Short circuit current (Ik) calcualtion (PFC (Zi)), I Sc PSCC (Zi): fault current and short circuit current: 0.1 A to 20 kA
Fuse chart? Yes
Voltage drop ΔU% (Zi): -40% to 40%
Additional readings: ohmic impedance (Zs) and capacitve impedance (Zi)
Additional readings: current via C177/C177A current clamp: 5 mA to 199.9 (C177A)
Current via MN77 current clamp: 0 to 550 V AC/DC / DC at 15.8 Hz to 500 Hz
Voltage: 0 to 550 V AC/DC / DC and 15.8 to 500 Hz
Frequency range: 10 Hz - 500 Hz
Line conductor phase sequence: 20 V to 500 V AC

Product type: Electrical tester

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT VI 300 V

Interfaces: none

Dim: (W x H x D) 280 x 190 x 128 mm

Weight: 2.2 kg

: IP53

Reading range (VDE): Earth leakage resistance
Insulation resistance
Leakage current
Earth leakage current
Touch voltage
Voltage

DIN standard: DIN IEC 60364
DIN EN 61557

Display type: Digital (LCD)

Reading range

Width: 280 mm

Height: 190 mm

Test procedure: manual

Voltage supply: Battery

Memory: No

Type: C.A 6113

VDE standard: 0100
0105
0413

Depth: 128 mm

Documents & Downloads

Datasheet

Datasheet 1270997 Chauvin Arnoux C.A 6113 Electrical tester VDE standard 0100, 0105, 0413

User & Safety Instructions

User & Safety Instructions 1270997 Chauvin Arnoux C.A 6113 Electrical tester VDE standard 0100, 0105, 0413

Description

Multifunction tester. Versatile multifuction tester that makes sure your wiring job is safe.

This text is machine translated.

Features

Complies with DIN VDE 0100-600 / DIN VDE 0105-100 /DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE/ÖNORM E 8001, and NIN/NIV test standards
Easy to set up and use, guidelines for each test function including graphs
Suitable for TT, TN and IT earthing arrangements
Testing of RCD/FI type A unsd AC
Comes with a fuse chart enabling quick assessment of the readings
Li-ion rechargeable battery for portable use
Reads voltage, current (via current clamp), wattage. wave forms and harmonics
Voltage drop test to determine appropriate cable cross-sections
Loop impedance test, 1 mΩ resolution
Built-in memory
17 functions. 1 device.
