Benning ST 725 Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 898.32 / piece)
€ 898.32
plus VAT.
Highlights & Details
Device tester VDE 0701, VDE 0702 Benning ST 725
- Measured value memory for 999 measurements
- Data download via USB
- Testing FI/RCD circuit breaker
- Testing 3-phase devices
- With battery and mains operation
Technical specifications
- Protective earthing conductor resistance (200 mA test current polarity reversal)
- Insulation resistance (250/500 V Test voltage), ISO-test voltage can be reduced to 250 V for devices with discharge
- Protective earthing conductor/touch current with mains mode (difference method / direct measurement)/battery mode (spare leakage current procedure)
- Testing FI/RCD circuit breaker (30 mA) with measurement of release time
- Mains voltage measurement via safety plug
- Testing 3-phase devices (with optional measuring adapters) under functional conditions
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
- Dim
(L x W x H) 55 x 115 x 270 mm
- Weight
950 g
IP40
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Earth leakage current
Touch voltage
Voltage
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Width
115 mm
- Height
270 mm
- Length
55 mm
- Test procedure
automated
- Voltage supply
Battery
230 V/AC
- Memory (space)
999
- Memory
Yes
- Type
ST 725
- VDE standard
0701-0702
- Display (details)
LCD
- Interfaces
USB
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1286514 Benning ST 725 Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 1286514 Benning ST 725 Equipment tester VDE standard 0701-0702
User & Safety Instructions 1286514 Benning ST 725 Equipment tester VDE standard 0701-0702
Download
Download 1286514 Benning ST 725 Equipment tester VDE standard 0701-0702
Description

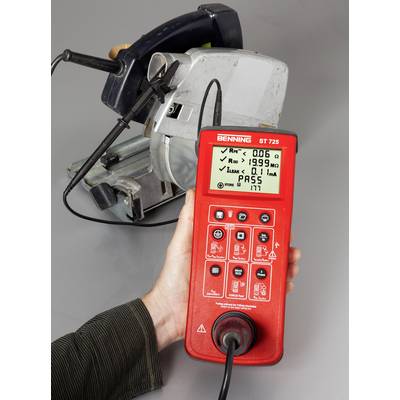

With the battery and mains-powered device tester ST 725 portable, simple and inexpensive testing of electrical equipment / work equipment can be done in accordance with DIN EN 50678 (VDE 0701) and DIN EN 50699 (VDE 0702). Mains operation allows complete testing of devices with power supplies such as, electronically controlled equipment/tools, PC's, photocopiers, washing machines under operating conditions.
This text is machine translated.
This text is machine translated.
Features

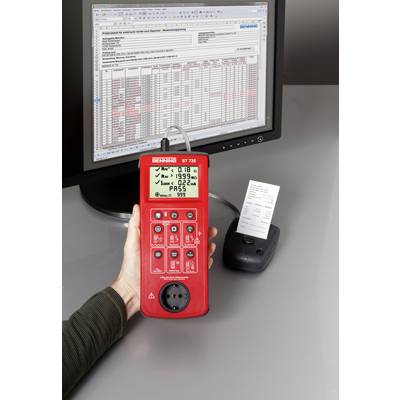

- Measured value memory for 999 test objects, read out via Micro-USB interface
- Integrated real-time clock for the storage of the measured values with date of test
- Limiting values pre-set according to VDE-standard
- Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.

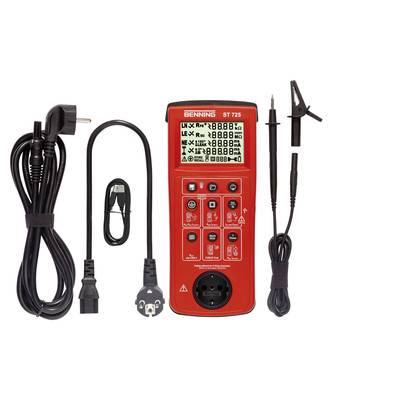

Scope of delivery
- Benning ST 725
- 6 batteries (type AA)
- Bag
- Test lead with grip clip
- Power supply cable
- Cold unit lead
- Micro USB cable
- User manual.
Hints
Software available for download from Benning.
