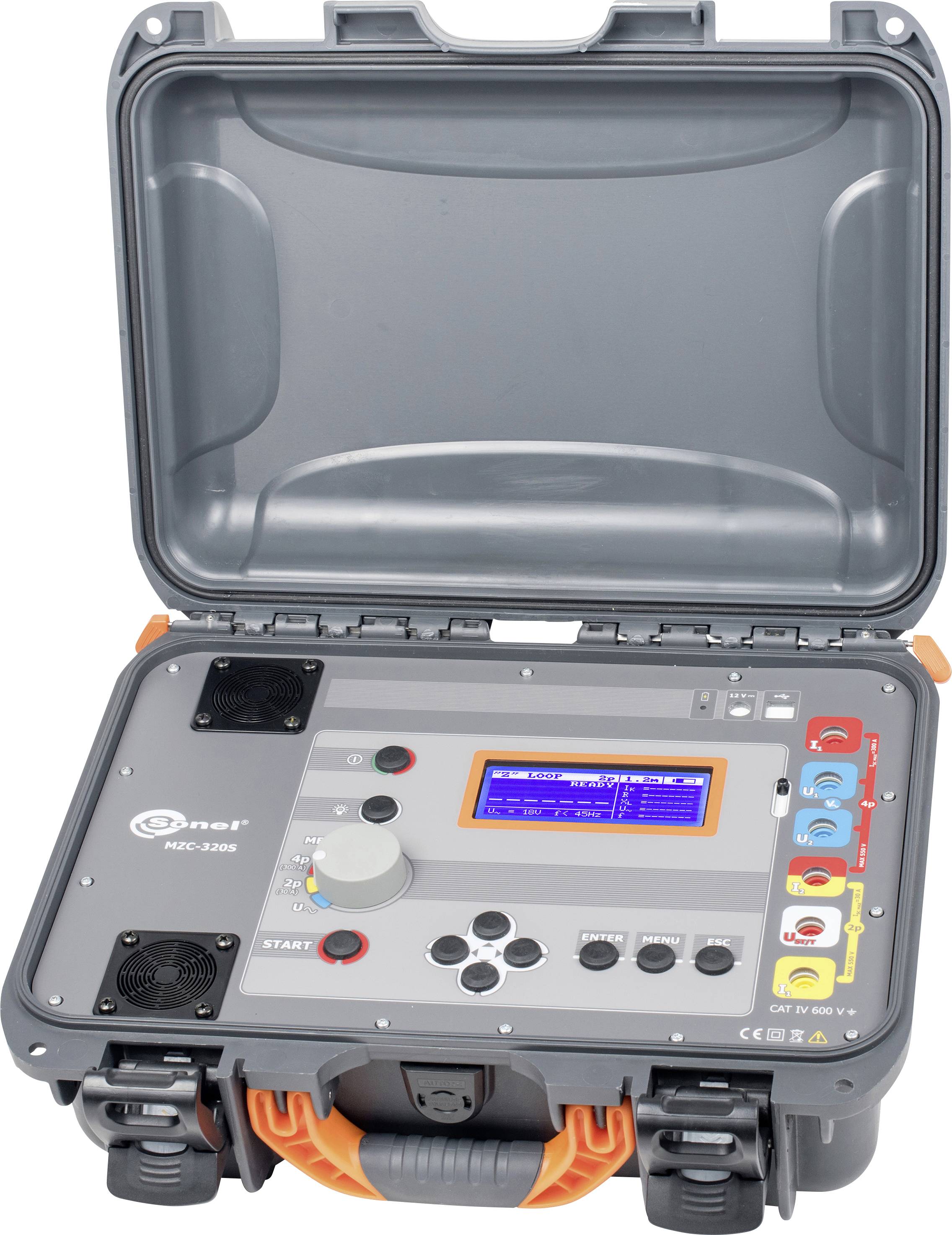

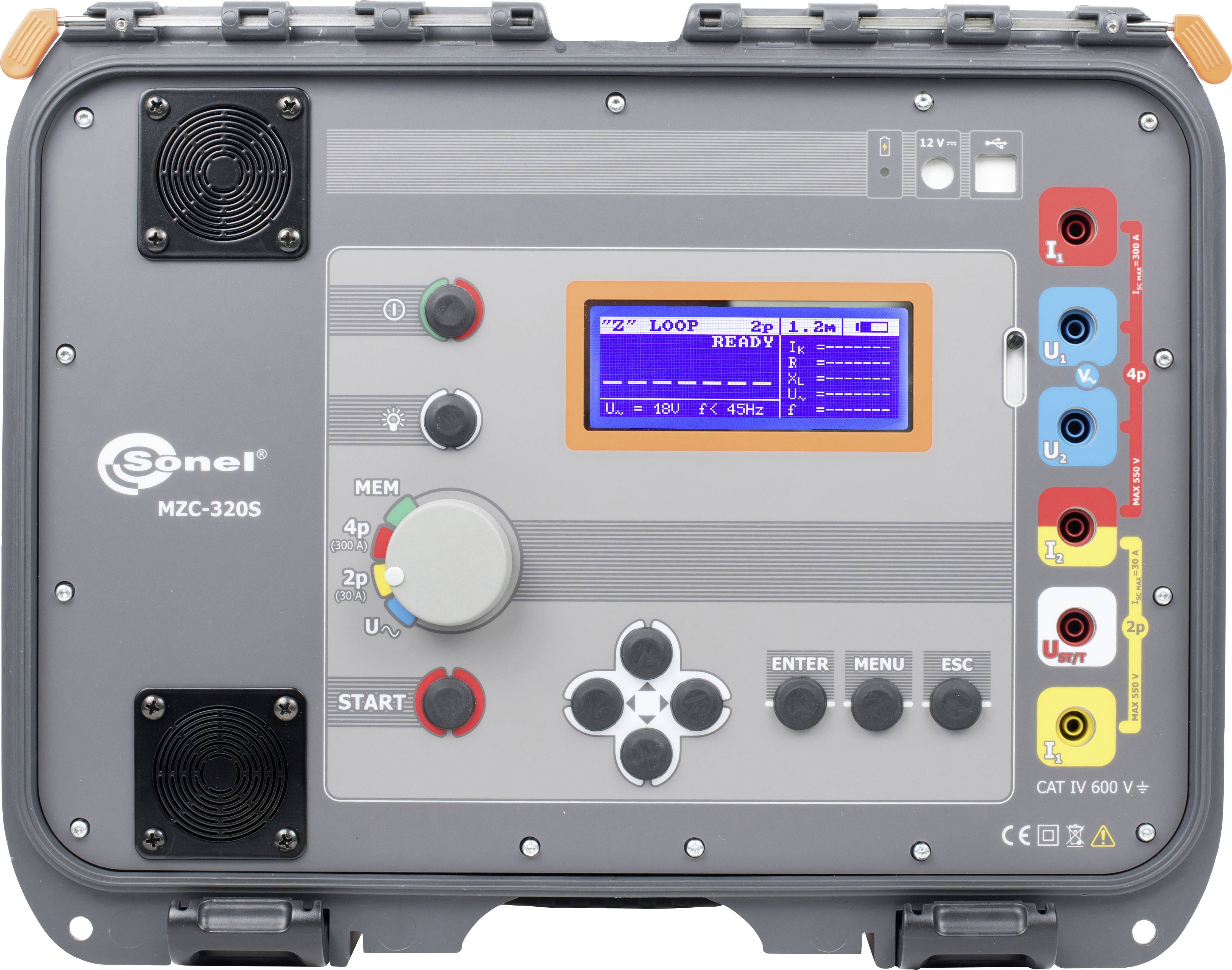

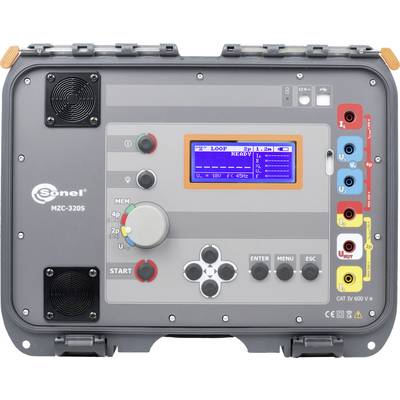

Sonel MZC-320S High current impedance meter
EAN:
Part number:
Item no:
Datasheet (PDF)
4 Piece(s)
Sales and shipping:
Number
Total (€ 2,259.66 / piece)
€
Only 4 Piece(s) available
Technical specifications
- Product type
High current impedance meter
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Dim
(L x W x H) 390 x 310 x 170 mm
- Weight
6.6 kg
IP20
- Reading range (VDE)
Loop impedance
- Display type
Digital
- Accuracy
0.1 %
- Width
310 mm
- Height
170 mm
- Length
390 mm
- Memory (space)
990
- Memory
Yes
- Type
MZC-320S
Documents & Downloads
Datasheet
Datasheet 2338506 Sonel MZC-320S High current impedance meter
User & Safety Instructions
User & Safety Instructions 2338506 Sonel MZC-320S High current impedance meter
Description
Features
- Measurements of very small impedances of the short-circuit loop with the current of 130 A at 230 V, maximum 300 A at 550 V (R 1.8 Ω)
- Measurements in the networks with nominal voltages of 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V and 290/500 V with frequencies from 45...65 Hz
- Possibility of measurement in the short-circuit circuit L-L, L-PE, L-N
- Automatic calculation of the short-circuit current
- Change of the measuring lead length, Without recalibration of the device
- Measurement of the contact voltage
- AC voltage measurement up to 550 V
- Memory for 990 measurement results with the possibility of data transfer to the computer
- Large, well readable graphical display with background lighting.
- This text is machine translated.
Scope of delivery
- Test lead black 1.2 m
- Test lead yellow 1.2 m
- Measuring tip yellow
- Measuring tip black
- high current probe tip
- Test lead 3 m
- Alligator clip K03 black
- Kelvin clamps K06
- Carrying case
- USB cable
- Calibration certificate
- User manual.
