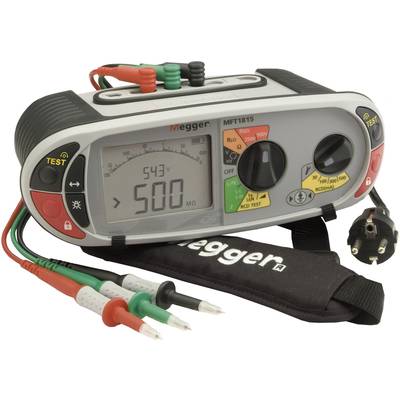

Megger MFT1815-SC-DE/NL/EN Electrical tester VDE standard 0100, 0105
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,150.42 / piece)
€ 1,150.42
plus VAT.
Only 1 Piece(s) available
Highlights & Details
MFT 1815, installation tester according to DIN VDE 0100/0105
- Simple, color-coded function selection with 2 rotary switches
- Large, backlit display for maximum user comfort
- Small, compact housing, very light, only 1.2 kg, protection class IP 54.
- 2 and 3-wire loop resistance testing without FI/RCDAuslosung
Technical specifications
- Low-ohm test with 200 mA DC
- Test lead compensation
- Acoustic continuity tester
- Insulation test with 250 V, 500 V and 1000 V
- FI/RCD testing type AC, A, S and F from 10 mA to 500 mA.
- 2 and 3-wire loop resistance testing without FI/RCDAuslosung
- 2-conductor loop resistance testing with a high test current
- Line impedance
- Rotating magnetic field indicator
- Voltage and frequency measurements.
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
none
- Dim
(L x W x H) 95 x 270 x 130 mm
- Weight
1.2 kg
IP54
- Reading range (VDE)
Insulation resistance
Leakage current
Differential current
Touch voltage
Voltage
- DIN standard
DIN IEC 60364
DIN EN 50110
- Display type
Digital (LCD)
- Width
270 mm
- Height
130 mm
- Length
95 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory
No
- Type
MFT1815-SC-DE/NL/EN
- VDE standard
0100
0105
- Features
RCD/FI testing
- Display (details)
Dual LCD display (3 1/2 digits) with symbols, additional analogue display
- Reading category
CAT IV 300 V/CAT III 600 V
- Standards
Measurements according to DIN VDE 0100-600, DIN VDE 0105-100
Documents & Downloads
Datasheet
Datasheet 106264 Megger MFT1815-SC-DE/NL/EN Electrical tester VDE standard 0100, 0105
User & Safety Instructions
User & Safety Instructions 106264 Megger MFT1815-SC-DE/NL/EN Electrical tester VDE standard 0100, 0105
User & Safety Instructions 106264 Megger MFT1815-SC-DE/NL/EN Electrical tester VDE standard 0100, 0105
Information
Information 106264 Megger MFT1815-SC-DE/NL/EN Electrical tester VDE standard 0100, 0105
Description
The System Test Equipment MFT 1800-series are multi-functional installation tester of the latest generation and include all the necessary test functions for the acceptance of electrical equipment according to DIN VDE 0100/0105. Outstanding are the easy to use rotary switches, with which you can set all measurement functions comfortably and securely. No complicated menu navigation. Can also be used with thick safety gloves. The installation testers of the MFT 1800 Series full input protection in all function and show security warnings for dangerous voltages.
This text is machine translated.
This text is machine translated.
Features
- Double-sided operation by means of duplicate test
- Remote control by means of probe tip with start button
- Autostart function
- Insulation measurement with limit value display and adjustable continuous measurement
- Use NiMH rechargeable batteries is possible.
Scope of delivery
- Hard case
- Test lead set 3-pole, with probe tips and terminals
- Safety test lead
- Probe tip with start button
- Shoulder strap
- 6 batteries.
- Calibration certificate
- Printed short manual
- Detailed instructions on CD.
