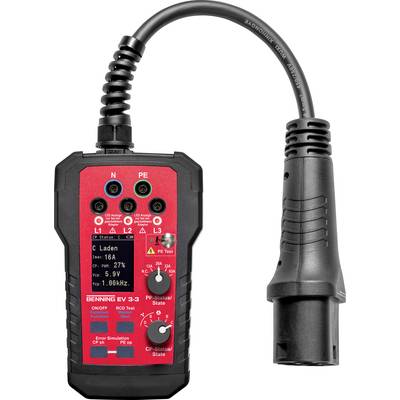

Benning EV 3-3 Wallbox tester
EAN:
Part number:
Item no:
Number
Total (€ 688.24 / piece)
€ 688.24
plus VAT.
14 days return policy included
Technical specifications
- Input voltage: 1-phase: Up to 300 V, 3-phase: Up to 510 V.
- Maximum test current 10 A.
- Insulation class 2 (double insulated)
- Pollution level: 2
- COMPLIES WITH IEC / DIN 61010-1 (VDE 0411-1), IEC / DIN 61010-2-30 (VDE 0411-2-030)
- Overvoltage protection CAT II 300 V against earth
- Product type
Wallbox tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Dim
(W x H x D) 65.0000 x 47.0000 x 47.0000 mm
IP40
- DIN standard
DIN VDE 0100
- Width
65.0000 mm
- Height
47.0000 mm
- Type
EV 3-3
- Features
RCD/FI testing
- Depth
47.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3412966 Benning EV 3-3 Wallbox tester
Description
The Benning EV 3-3 can be used as a stand-alone device for testing and troubleshooting electrical charging stations. In conjunction with a suitable installation tester, the effectiveness of the safety measures can also be demonstrated in accordance with standards. The Wallbox tester and measurement adapter Benning EV 3-3 enables easy and fast function testing as well as fault finding on Wallboxes. Together with the IT 200 / IT 130 it enables the safety and function test of charging stations for electric vehicles according to DIN VDE 0100-600 (IEC 60364-6).
Recommended installation tester
Benning-it 200
Auto Sequence® installation tester for the rational testing and documentation of electrical systems and EV charging stations (wall boxes) of charging mode 3.
This text is machine translated.
Recommended installation tester
Benning-it 200
Auto Sequence® installation tester for the rational testing and documentation of electrical systems and EV charging stations (wall boxes) of charging mode 3.
This text is machine translated.
Features
- Vehicle status simulation A, B, C, D
- Analysis of the CP and PP signal (vehicle status, signal voltage, frequency, pulse ratio)
- PE test (warning against live voltage applied to the protective conductor)
- Triggering of 30 mA AC and 6 mA DC residual current circuit breakers with time measurement
- Rotating field measurement
- Voltage measurement
- Simulation of the CP fault short-circuited and PE interrupted
Scope of delivery
- EV 3-3
- Measurement adapter
- Protective case
- User manual
