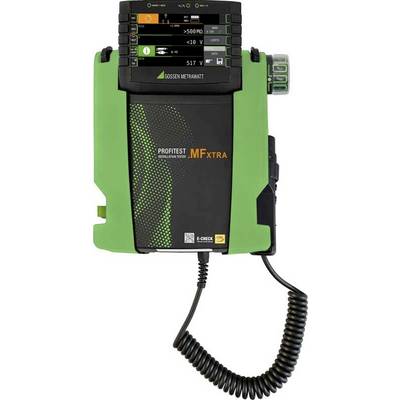

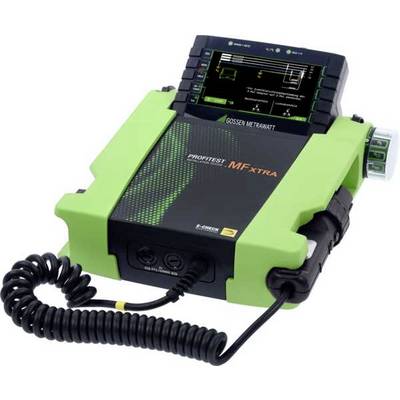

Gossen Metrawatt PROFiTEST MF XTRA LEMONGREEN Equipment tester set, Equipment tester Calibrated to (DAkkS standards) VDE
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,268.07 / piece)
€ 3,268.07
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Measuring and testing device for testing the effectiveness of protective measures in stationary electrical installations.
- Context-sensitive color graphic display
- Measurement and test procedure - simple creation of the plant structure / measuring & saving / generating logs
- Pre-configured and self-programmable test sequences for quick testing of electrical systems
- Memory concept for up to 50,000 records
- Testing all current all-current sensitive RCDs, RDC-DD, RCMB
- Protection of the operator by PE detection when used by finger contact
- Test of differential current monitoring devices
- Testing of insulation monitoring devices
- Future-oriented connectivity
- Four-wire measuring technology - no compensation of the measurement leads required
Technical specifications
- Product type
Equipment tester set
DAkkS standards
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
USB
- Dim
(L x W x H) 330 x 260 x 90 mm
- Weight
2.7 kg
IP40
- Reading range (VDE)
Loop impedance
Earth fault loop impedance
RCD testing (AC, A, F, B, B+, EV)
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
Insulation resistance
Earth resistance
Earth leakage resistance
Earth leakage current
Voltage
Current
Show more
- DIN standard
DIN VDE 0100
DIN VDE 0105
DIN VDE 0413
DIN EN 61557
DIN EN 61010-1
- Display type
Digital
- Width
260 mm
- Height
90 mm
- Length
330 mm
- Test procedure
automated
manual
- Voltage supply
Rechargeable
Battery
- Memory (space)
50000
- Memory
Yes
- Type
PROFiTEST MF XTRA LEMONGREEN
- VDE standard
0100
0100-600
0105
0113
0411
0413
- Features
incl. software
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899158 Gossen Metrawatt PROFiTEST MF XTRA LEMONGREEN Equipment tester set, Equipment tester Calibrated to (DAkkS standards) VDE
User & Safety Instructions
User & Safety Instructions 2899158 Gossen Metrawatt PROFiTEST MF XTRA LEMONGREEN Equipment tester set, Equipment tester Calibrated to (DAkkS standards) VDE
Description
The PROFITEST MF XTRA makes the investment decision easy for you. With the test range that is perfectly tailored to your requirements for the professional electrician, it is the ideal test device for your daily routine - day after day. With its optimal operation and the memory concept, creating a test log is easy and quick. This saves you time during each test and allows you to perform more tests daily. Once a plant structure has been created, you can also use it across all PROFITEST devices. Each employee therefore always checks exactly the same.
This text is machine translated.
This text is machine translated.
Features
- Display
- Context-sensitive color graphic display Soft key buttons
- Allows you to conveniently select sub-functions
- And parameters. Unavailable subfunctions and
- Parameters are automatically hidden.
- Special measurements
- Selective earth resistance RE (mains operation)
- With 2-pin adapter, probe, earthing and clip-on current sensor
- (3-pole measurement method)
- Measurement potential equalization
- Current measurement with pliers
- Field direction
- Earth leakage resistance RE(ISO)
- Voltage drop
- Location isolation ZST
- Counter start (kWh test)
- Testing of E-loading columns and
- Electric vehicles on E-loading pillars (IEC 61851-1)
- Earthing resistance RE (battery-operated)
- 3- or 4-pole measurement method via adapter PRO-RE
- Specific earth resistance (battery-operated)
- (4-pole measurement method via adapter PRO-RE)
- Testing of insulation monitoring devices (IMDS)
- Checking differential current monitoring devices (RCMS)
- Leakage current with Adapter PRO-AB
- Check residual voltage (Ures)
- Intelligent ramp for RCD testing
- (Testing tripping time and tripping current with only one measurement)
- Logging of error simulations on PRCDs with the
- PROFITEST PRCD adapter
- Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.
Scope of delivery
- 1x PROFITEST MF XTRA with green protective bumpers
- 1x protective contact plug insert (country-specific)
- 1x 2-pin measuring adapter and 1x cable for extension to the 3-pin adapter (PRO-A3-II)
- 2x alligator clips
- 1x shoulder strap
- 1x set of batteries (Z502H)
- 1x charger (Z502R)
- 1x quick user manual
- 1x Safety information leaflet
- 1x DAkkS calibration certificate
- 1x/USB-interface cable
- 1x IZYTRONIQ BUSINESS PROFESSIONAL software license
