Buy Benning 10236769 Electrical tester set

A black suitcase with an open lid reveals red electronic devices and cables. Beneath this is a device with a screen and buttons.

A portable testing device for electric vehicle charging stations with indicator lights, alongside a black carry case.

A red electronic device called 'Auto Sequence Installation Tester' with a screen and buttons for measuring electrical installations.

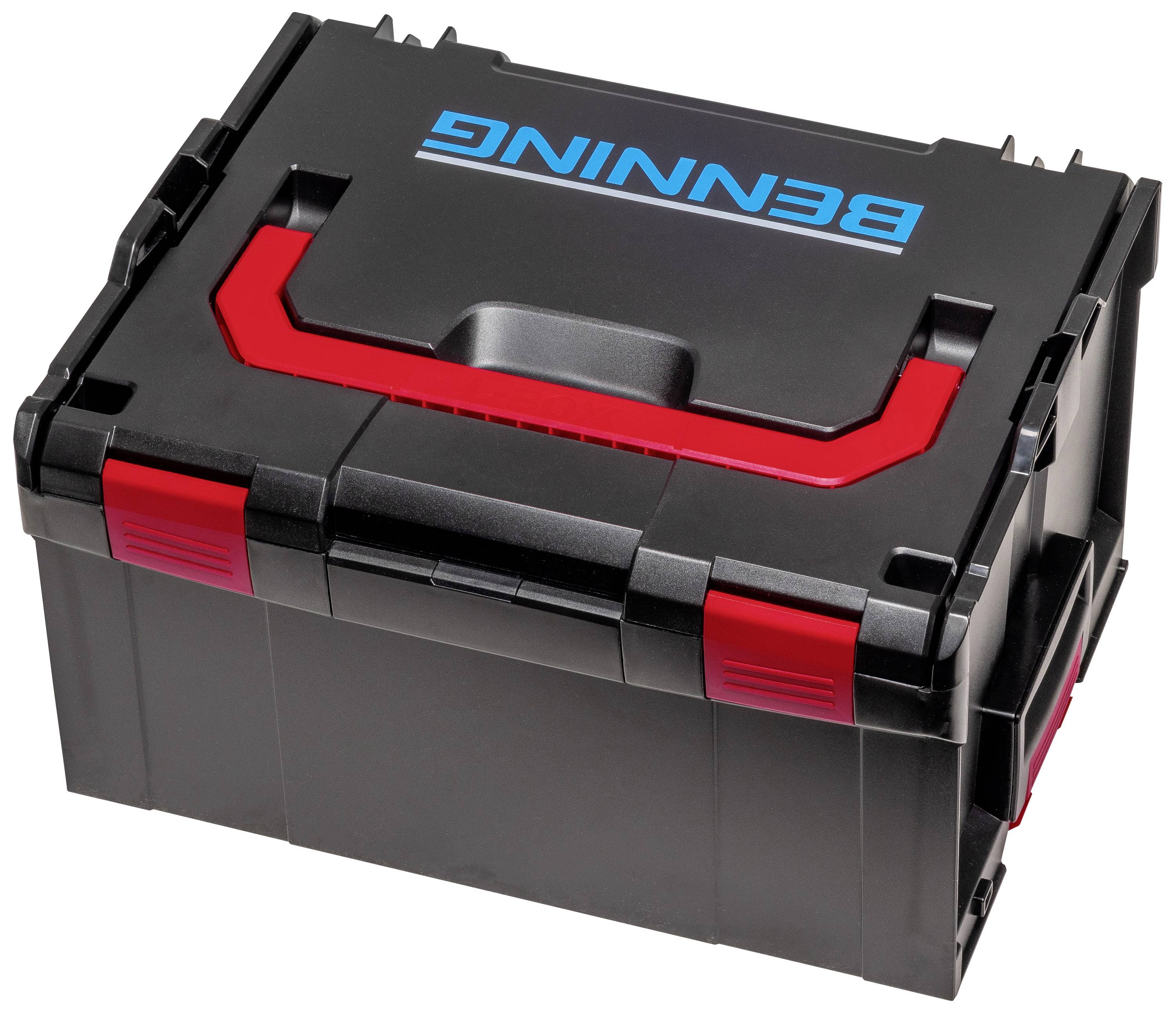

Black tool case with red handles and blue lettering on the lid.

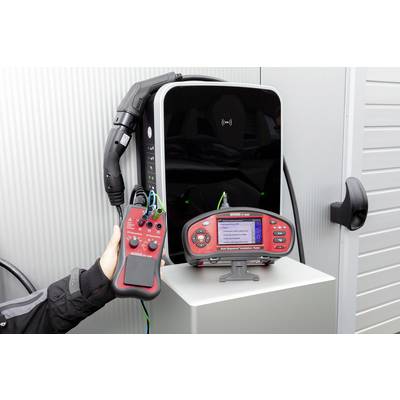

A charging device for electric vehicles is being tested with a testing instrument. A hand is holding the testing instrument, which displays results.

An electrician holds an insulation measurement device against a wall, which displays 0.87 MΩ. Two current clamps are attached to cables.

A person is testing an electrical switching system with a testing device. The device displays results on a screen. Cables are connected.

An electrical testing device is sitting on a table and is plugged into a socket. The display is showing measurement values and data.

'EV charging point testing with Benning EV 3-2: Various current flow paths through test module to a charging point demonstrated. Connectors connected.'

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,113.45 / piece)

€ 3,113.45

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Technical specifications

IT 200 installation tester (044106)
Weight: 1.6 kg
Low ohm testing: 0.01 Ω - 2000 Ω
Insulation resistance (50/100/250/500/1000 V) 10 kΩ - 1000 MΩ
Cable impedance 0.01 Ω - 10 kΩ
Voltage drop 0.1% - 100%
Loop impedance 0.01 Ω - 10 kΩ
Short circuit current: 0.01 A - 200 kA
Continuity 7 mA
Voltage 1 V - 550 V.
Display type: Digital
Measuring range (VDE): Line impedance, loop impedance, insulation resistance, voltage, frequency, Current
Measurement category CAT III 600 V CAT IV 300 V
Product dimension, width: 111 mm
Product dimension, height: 165 mm
Product dimension, length 52 mm
Interfaces: USB, RS232
VDE tester features: Colour touchscreen, RCD/FI testing
Measuring adapter (044169)
Weight: 0.82 kg
Measurement category CAT II 300 V
Product dimension, width: 100 mm
Product dimensions, height: 70 mm
Product dimension, length 200 mm
Maximum barometric height: 3000 m.
Operating temperature 0 to +40 oC
Ambient temperature -10 to +70 °C
Length of test lead: 0.3 m.
Input voltage: 1-phase: Up to 250 V 3-phase: Up to 430 V
Mains frequency: 50/60 Hz.
Maximum test current: 40 A (10 ms) periodic operation
Insulation class 2 (double insulated)
Pollution level: 2
IP 40 protection
BNC Socket
Resistance BNC-housing against PE: 100 kΩ
Resistance BNC-contact CP: 100 kΩ
Amplitude error -2 %

Product type: Electrical tester set

: Manufacturer's standards (no certificate)

Reading category: CAT IV 300 V

Interfaces: USB

Dim: (L x W x H) 52 x 111 x 165 mm

Weight: 1.6 kg

Reading range (VDE): Wave impedance

Display type: Digital

Accuracy: -2 %

Width: 111 mm

Height: 165 mm

Length: 52 mm

Test procedure: automated

Voltage supply: Rechargeable

Memory: Yes

Type: 10236769

Features: built-in colour touchscreen

Documents & Downloads

Datasheet

Datasheet 2987782 Benning 10236769 Electrical tester set

User & Safety Instructions

User & Safety Instructions 2987782 Benning 10236769 Electrical tester set

Information

Test Summary Report 2987782 Benning 10236769 Electrical tester set

Security datasheet

Security datasheet 2987782 Benning 10236769 Electrical tester set

Description

The Benning SET for testing stationary systems and wall boxes is Ideal for the modern electrical engineers. The combination enables a standard testing of electrical systems and EV charging stations (wall boxes). Stowled in the practical L-Boxx® your devices are safely packed.

This text is machine translated.

Features

IT 200 installation tester (044106)
Operation via 4.3" color-touch display and push-buttons
Individual tests and pre-programmed Auto-Sequence® measurements
Auto-tests at the touch of a button (Z Auto, RCD Auto, Auto-TN, -TN RCD, -TT, -IT)
Order Manager to manage test orders;Create complex plant structures including planned measurements
Large memory of the storage on 8 GB SD card
Commander-test plug for earthing-contact socket with good/bad display
Connection for barcode scanner for identification of the measuring point
Online-voltage monitor for monitoring the test connections
Free firmware updates
Powerful 4400 mAh Li-ion battery pack
Battery charging function integrated in the device
Protocol software Benning PC-Win IT 130-200
Creation and transfer of extensive plant structures to the Benning IT 200 for efficient initial and repeat testing
Measured value download and logging for electrical systems and electronic charging stations (Wallboxes)
Supports the data import and existing functionality of Benning IT 130
Export function of the test data
Multiple installation without additional costs possible
Free software updates
Contact voltage
TRUE RMS voltage
PE resistance under mains voltage (3-wire method)
Testing of FI/RCD-protection switch standard and delayed (S) (type AC, A, F, B+, EV RCD/ EV RCM (RDC-DD), MI RCD and PRCDs), AUTO test, trigger time, trigger current (ramp)

Scope of delivery

Protocol software Benning PV-Win IT 130-200 via download link and calibration certificate
Benning IT 200 installation tester (044106)
Benning EV 3-2 test adapter (044169)
Benning L-Boxx 238 (10236016)

Hints

Test in accordance with:

DIN VDE 0100-600

DIN VDE 0105-100

DIN EN 61851-1/ VDE 0122-1
