Buy Benning 10236771 Equipment tester set

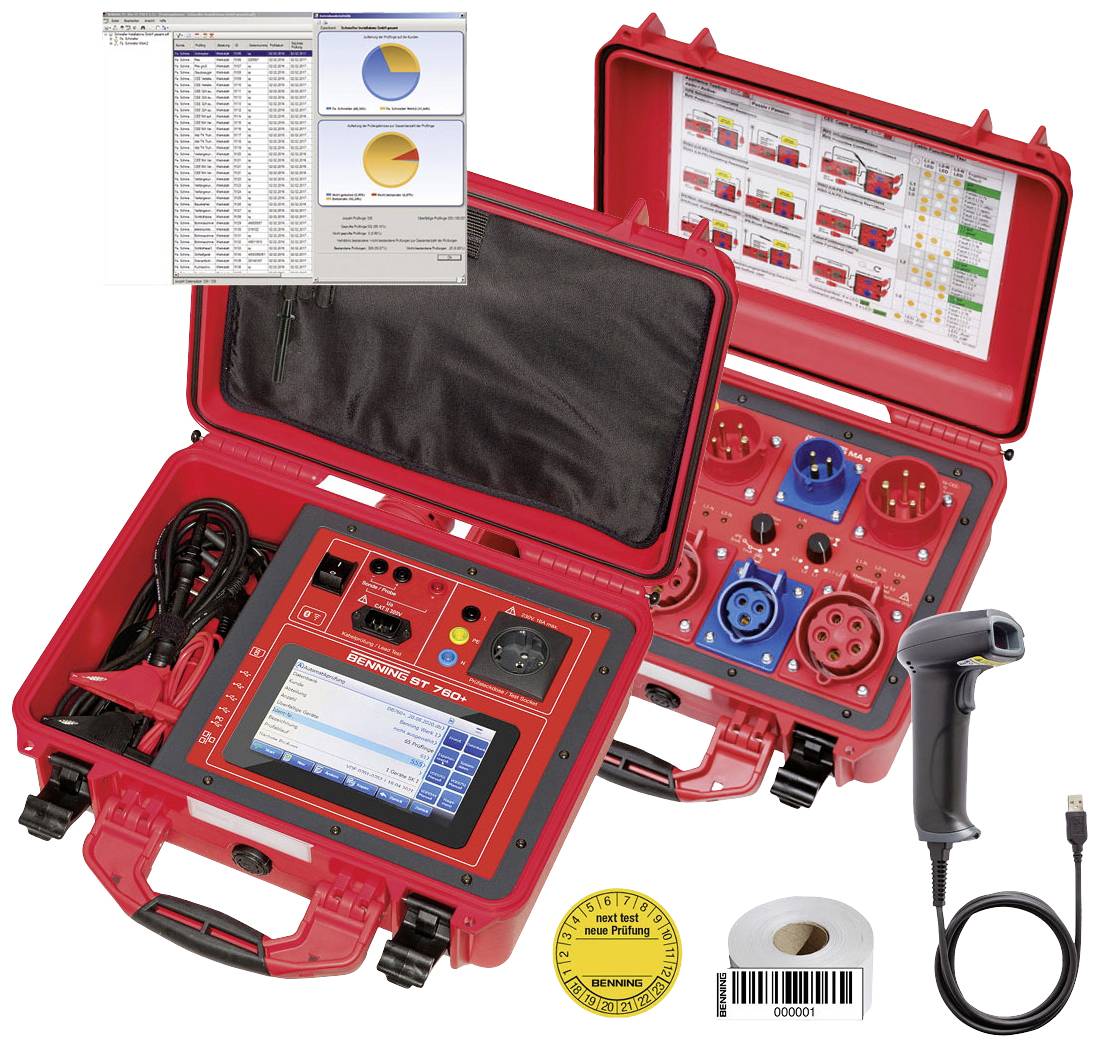

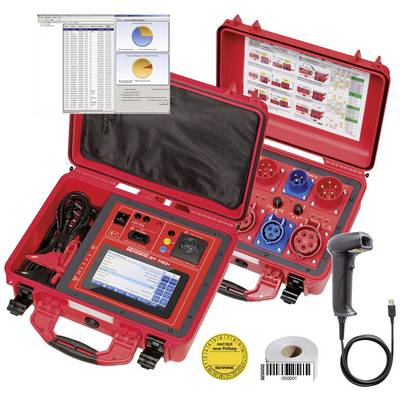

A red suitcase with an electronic measuring device and cables, next to colourful plug sockets. Tanbon label roll and barcode scanner included.

Red portable distribution box with various sockets and connection cables. Open lid reveals usage instructions.

Red testing device in a case with display, USB stick, barcode scanner, and cables for device testing. Open software showing test results.

A red electronic testing device connected via cables to another device on a workbench. A metal wall is visible in the background.

An open, red test case with cables and a screen displays electrical measuring instruments on a table in a technical room.

Two red suitcases with technical equipment are standing on a workbench next to a laptop. A device is testing electrical connections.

Red and grey electrical equipment on a workbench in a workshop, including measuring devices and junction boxes.

1/7

Fast track dispatch on Mon, 14 Sep

27 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,696.64 / piece)

€ 3,696.64

plus VAT.

Report legal concerns

Technical specifications

Benning ST 760+ SET device tester (050335)
Display type: Digital (LCD)
Measurement range (VDE): Protective conductor resistance, insulation resistance, equivalent leakage current, earthing conductor current, contact current, Voltage, current, power, apparent power, load current, Patient leakage current, PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK), RCD-TESTING (AC, A, F, B, B+), OCV TRMS and peak amplitude in welding devices
Measurement category CAT II 300 V
Product dimension, width: 330 mm
Product dimensions, height: 165 mm
Product dimension, length 405 mm
Test procedure: Automatic, manual
Interfaces: USB, Bluetooth®, LAN, WLAN (802.11b/g), SD-card slot, Mini USB
Protection class IP67
Voltage supply: Mains operated
VDE tester features: With color touch screen, included Case
MA 4 CEE measuring adapter (044162)
Weight: 4200 g
Product dimension, width: 410 mm
Product dimensions, height: 170 mm
Product dimensions, depth 350 mm

Product type: Equipment tester set

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Interfaces: Wi-Fi (802.11b/g)
LAN
SD slot
RJ45
Bluetooth®
4x USB-A
USB
Mini USB

Dim: (L x W x H) 405 x 330 x 165 mm

Weight: 4200 g

Reading range (VDE): Leakage current

DIN standard: DIN EN 60974

Display type: Digital (LCD)

Width: 330 mm

Height: 165 mm

Length: 405 mm

Test procedure: manual
automated

Voltage supply: Mains

Memory: Yes

Type: 10236771

Features: incl. case
built-in colour touchscreen

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987783 Benning 10236771 Equipment tester set

Description

The Benning SET device test is Ideal, if the 1- and 3-phase portable equipment is pending testing. The direct combination and tuning ensure easy operation. Equipment databases and test results can be transferred to the software via different ways and are then available for analyzes, statistics and documentation.

This text is machine translated.

Features

Benning ST 760+ SET device tester (050335)
Testing of mobile PRCDs and type AC/A/F/B+
Testing 3-phase consumers via optional measuring adapter
Additional measuring adapters are optionally available
Brilliant 7-inch color touch display (35% larger user interface) with innovative menu functions for an easy and efficient initial test/test sample installation
Smart menu Functions: Individually adjustable device templates (24 templates per test standard) for a quick test specimen installation by pressing a single button, Auto-ID function for automatic increment of the ident no. (ID) when creating new test specimens, device data that can be shown individually via ON/OFF slider for optimized handling and use by EUPs
Favourites menu for direct jump to frequently used submenus
Softkey keyboard (QWERTZ), graphic fields describe the predefined functions
Automatic and manual test sequence with good/poor indication
Complete test sample database including test history can be saved on SD card
Design of the interface WLAN, Bluetooth, 4 x USB type A, 1 x mini-USB, 1 x RJ 45, 1 x SD-card slot
Free firmware update
Battery-supported user interface, e.g. if the mains voltage fails, transport from test site to test site, access to SD card is possible
Device tester set for testing electric devices/ work equipments according to DIN VDE 0701-702, DGUV/ regulation 3, BetrSichV, welding devices according to VDE 0544-1, DIN EN 60974-4 and medical-electrical devices according to DIN VDE 0751-4, DIN EN 62353 type B, BF, CF, hospital/ care beds
Display graphically
Limit value display yes
Measurements: Insulation resistance measurement range 0.1 MOhm - 100 MOhm (nominal test voltage 100 V - 1000 V, can be set)
Protective earthing resistance measuring range 0.05 Ohm - 10 Ohm (test current 600 mA/10A)
Diversion current
Differential current
Direct measurement
Earth conductor current/contact current 0.03 mA - 25 mA
Current consumption measurement
Performance measurement
Function test V/A/W in True RMS real effective value measuring technique
Testing of mobile PRCDs, such as PRCD-S/-S+/-K and type AC/A/F/B+
Testing 3-phase consumers via optional measuring adapter
Additional measuring adapters are optionally available
Check extension cables
Open circuit voltage and contact current of the welding circuit
Device leakage current, leakage current from application part type B, BF and CF
Special features: Brilliant 7-inch color touch display (35% larger user interface) with innovative menu functions for an easy and efficient initial test/new test specimen system
Smart menu Functions: Individually adjustable device templates (24 templates per test standard) for a quick test specimen installation by pressing a single button, Auto-ID function for automatic increment of the ident no. (ID) when creating new test specimens, device data that can be shown individually via ON/OFF slider for optimized handling and use by EUPs
Favourites menu for direct jump to frequently used submenus
Softkey keyboard (QWERTZ), graphic fields describe the predefined functions
Automatic and manual test sequence with good/poor indication
Complete test sample database including test history can be saved on SD card
Design of the interface WLAN, Bluetooth, 4 x USB type A, 1 x mini-USB, 1 x RJ 45, 1 x SD-card slot
Printer port USB-A.
Free firmware update
Battery-supported user interface, e.g. if the mains voltage fails, transport from test site to test site, access to SD card is possible
Active test
Passive test
Alternative method
Differential current method
Direct method
Voltage measurement
MA 4 CEE measuring adapter (044162)
Adapter case for the active and passive testing of 1- and 3-phase CEE-accessories and CEE-extension lines in combination with device testers.
The measuring adapter makes it easier for you to check devices which change in location. Its rugged design is particularly suitable for use in industrial environments. Its simple handling allows the user to work quickly and rationally with the measuring adapter. You can test devices and extension cables that have the following IEC 60309-1-compliant connectors.
CEE-plug:
16 a, 50 Hz – 60 Hz, 230 V, L+N+PE, 6 h
16 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE, 6h
32 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE; 6h
The measuring adaptor is suitable for connection to the device testers:
Benning ST 725
Benning St 750 / 750a / 755 / 760
External devices

Scope of delivery

Set package:
Benning ST 760+ SET device tester (050335)
Benning MA 4 CEE measuring adapter (044162)

Hints

Test in accordance with:

DIN EN 50678 (VDE 0701)

DIN EN 50699 (VDE 0702)

DIN EN 62353 (VDE 0751-1)

DIN EN 60974-4 (VDE 0544-4)
