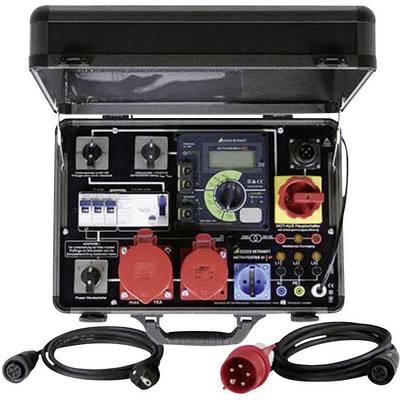

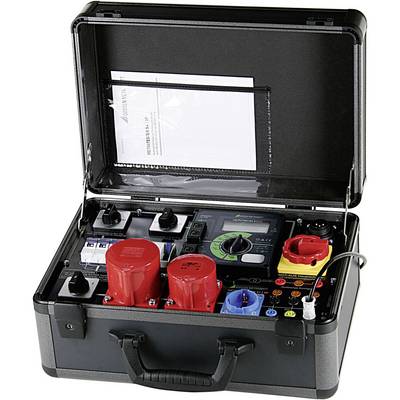

Gossen Metrawatt M 700 K Equipment tester set, Electrical tester set VDE standard 0701-0702, 0104
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,200.84 / piece)
€ 3,200.84
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Workshop test panel Metratester 5-3P
- With residual current method
- With CEE connection for test devices 230/400 V 16 A
- Compact aluminium case suitable for portable use
Technical specifications
- Overvoltage category: CAT II 300 V
- Product type
Equipment tester set
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
none
- Dim
(W x H x D) 380 x 300 x 220 mm
- Weight
7.5 kg
IP20
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Earth leakage current
Touch voltage
Voltage
Current
- DIN standard
DIN EN 62638
DIN EN 50191
- Display type
Digital (LCD)
- Width
380 mm
- Height
300 mm
- Test procedure
manual
- Voltage supply
230 V/AC
400 V/AC
- Memory
No
- Type
M 700 K
- VDE standard
0701-0702
0104
- Depth
220 mm
- Display (details)
LCD
- Interfaces
none
- Power supply (details)
230/400 V AC
- Standards
VDE 0104 · IEC 61010-1 · VDE 0404 · DIN 43751 · VDI/VDE 3540 · VDE 0470 · EN 61326 · VDE 0843 part 20 · VDE 0701 part 1 and 240 · VDE 0702 · BGV a2 (VBG 4)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 100663 Gossen Metrawatt M 700 K Equipment tester set, Electrical tester set VDE standard 0701-0702, 0104
User & Safety Instructions
User & Safety Instructions 100663 Gossen Metrawatt M 700 K Equipment tester set, Electrical tester set VDE standard 0701-0702, 0104
Conformity certificate
Conformity certificate 100663 Gossen Metrawatt M 700 K Equipment tester set, Electrical tester set VDE standard 0701-0702, 0104
Description
For testing for portable equipment per DIN VDE 0701, 0702nd. Test panel for testing the safety of portable electrical equipment after maintenance or at regular intervals (periodic testing).
Scope of delivery
- 2 Power supply lines (protective contact and CEE16A)
- 1 measuring line with test head
- 1 alligator clip
- User manual
