LAPP Connector set EPIC®KIT H-BE 6 75009637 6 + PE Screws 1 Set
Product type
Connector set
Series
EPIC®KIT H-BE 6
Connection
Screws
Number of pins
6
Total no. of pins
6 + PE
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 27.99 / piece)
€ 27.99
incl. VAT
Only 8 Set(s) available
Highlights & Details
EPIC ® H-BE 6 series in set
Technical specifications
- Product type
Connector set
- Series
EPIC®KIT H-BE 6
- Number of pins
6
- Total no. of pins
6 + PE
- Connection
Screws
- Test current
IEC: 16 A
UL: 16 A
CSA: 16 A
- Rated voltage
IEC: 500 V
UL: 600 V
CSA: 600 V
- Rated surge voltage
6 kV
- Case material
Metal
- Max. temperature
+100 °C
- Min. temperature
-40 °C
IP65
- Content
1 Set
- Factory colour
Grey
- Core cross section (max.)
2.50 mm²
- Core cross section (min.)
0.50 mm²
- Features
with screw connection
- Leading contact (PE)
Yes
- Type
Square plug kit
· Socket inset with wire protection
· Straight attachment housing
- Type
straight
- Core connector
0.5 - 2.5 mm²
- Contamination level
3
- Connection
Screws
- Temperature range
-40 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 603871 LAPP Connector set EPIC®KIT H-BE 6 75009637 6 + PE Screws 1 Set
User & Safety Instructions
User & Safety Instructions 603871 LAPP Connector set EPIC®KIT H-BE 6 75009637 6 + PE Screws 1 Set
Information
Information 603871 LAPP Connector set EPIC®KIT H-BE 6 75009637 6 + PE Screws 1 Set
Description
EPIC ® Plug Connectors H-BE to the possible application at higher voltages and currents, and high reliability. The Standard inserts with Screw terminals, Cage clamp and Crimp termination.
Scope of delivery

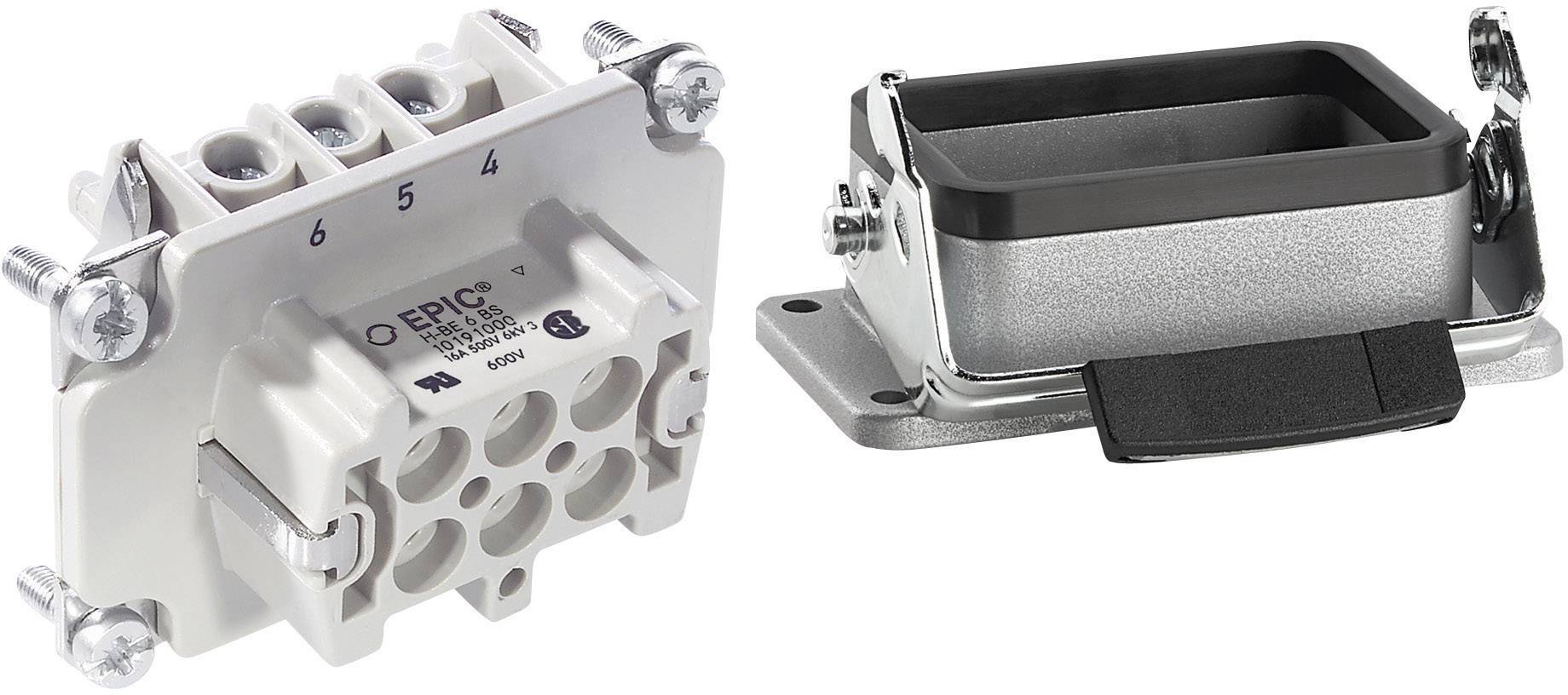

- Socket insert with wire protection · Straight connector fitting
- This text is machine translated.
