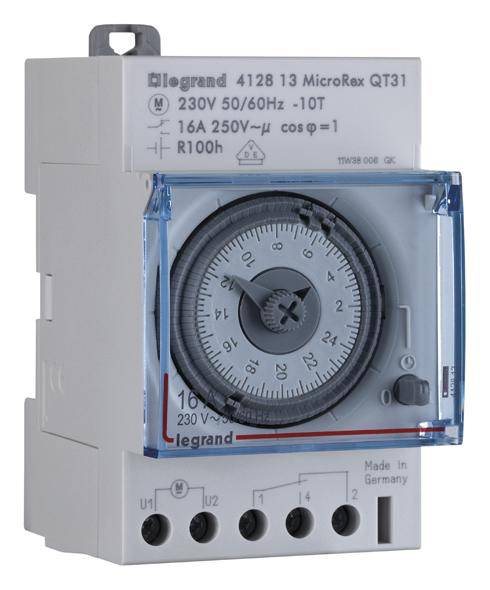

Legrand Legrand 412813 DIN rail mount timer analogue 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Automatic summer/winter time adjustment: No.
- Width in division units: 3
- Nominal switching current at 250 V AC: 16 A.
- Supply voltage frequency 50 Hz
- Voltage type of supply voltage: AC
- Contact type: Changer
- Protection class: IP20
- Mounting type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
230 V
- Channels
1x CHANGEOVER
- Type
analogue
- Type
Legrand 412813
- Manufacturer part #
412813
- Factory colour
Multicolour
- Dim
(L x W x H) 60 x 84.0000 x 83 mm
- Min. power reserve
100 h
- Width
84.0000 mm
- Height
83 mm
- Length
60 mm
- Features
Daylight savings control
- Switching cycle
24h mode
- Depth
98.0000 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158292 Legrand Legrand 412813 DIN rail mount timer analogue 230 V
User & Safety Instructions
User & Safety Instructions 2158292 Legrand Legrand 412813 DIN rail mount timer analogue 230 V
Description
MicroRex QT31, analogueue daily timer with quartz motor (accuracy +/- 2.5 sec/day, power reserve 100 h), for the distributor installation, with manual switch: ON-off, with captive switching segments, pointer can be rotated forwards and backwards, thus very easy setting of e.g. summer and winter time, cover sealable, shortest switching time: 30 min. Switching output: 1 changer 250V/ 50 Hz, 16 A~ cos phi = 1
