Name: Lenovo Laptop workstation 40.6 cm (16 inch) WUXGA 356H 8 GB RAM 1 TB SSD German, QWERTZ Intel Intel graphics Nvidia RTX
Brand: Lenovo
SKU: 3815067

Highlights & Details

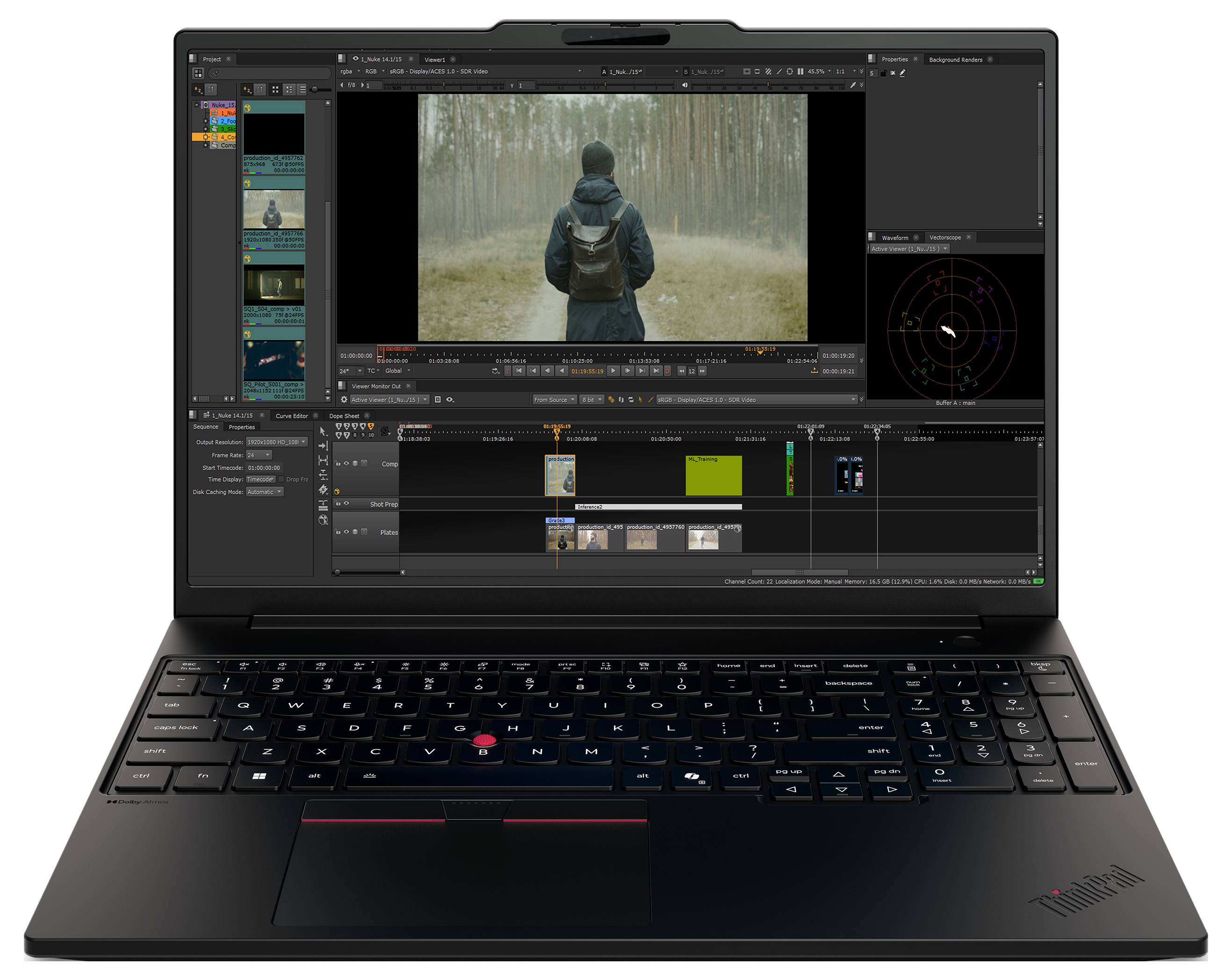

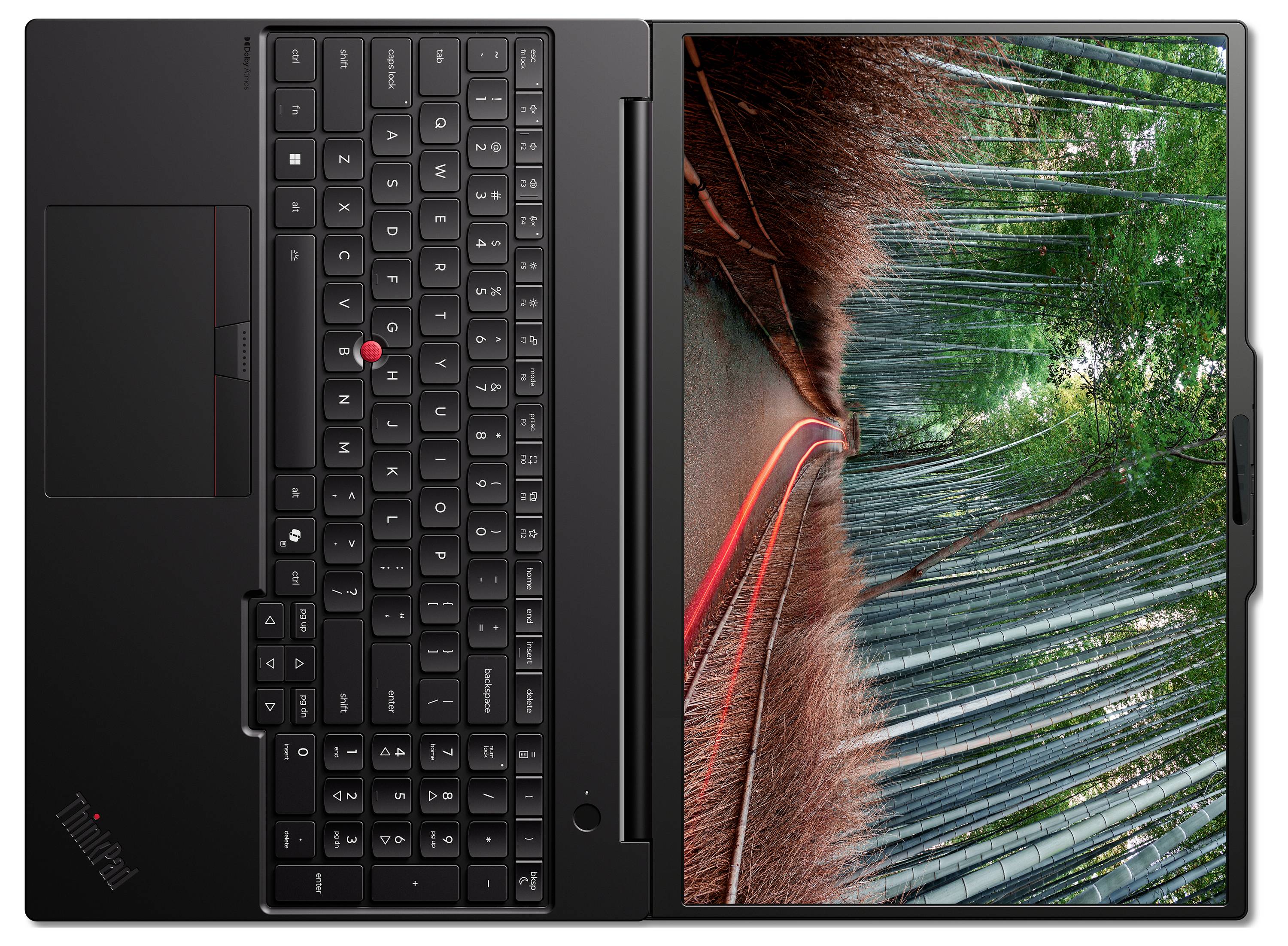

Lenovo ThinkPad P16s G5 U7 356H TS Laptop workstation

40.6 cm (16 inch)
WUXGA
1920 x 1200 Pixel
IPS
356H
Number of cores: 16 x max. 4.7 GHzRAM: 8 GB;7467 MHz1 TB SSD;Windows® 11 Pro

Technical specifications

Product Type: Mobile Workplace
Form factor: Hinged housing
Contrast ratio 1200:1
Intel Core Ultra 7 processor family
Intel core processor (3 series)
FCBGA2540 Socket
Internal memory type: LPDDR5x SDRAM
SSD interface PCI Express 4.0
SSD form factor M.2
Optical Drive Type: No.
Built-in graphics card model: Intel graphics
WLAN-standards Wi-Fi 7 (802.11b)
HDMI version 2.1
Motherboard Intel SoC
Keyboard language: German

Product type: Laptop workstation

Display (cm): 40.6 cm

Screen size diagonal (inches): 16 inch

Display resolution mode: WUXGA

Display properties: IPS

Display resolution: 1920 x 1200 Pixel

Processor/type: 356H

Processor cores (No.): 16 x

CPU speed: 1.5 GHz

CPU turbo clock speed (max.): 4.7 GHz

CPU cache: 18 MB

: 8 GB

Configuration: LPCAMM2

Memory clock speed: 7467 MHz

RAM / Max. upgrade: 96 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

Onboard graphics card (version): Intel graphics

Dedicated graphics card: Yes

Dedicated graphics card (memory type): GDDR7

Onboard graphics card (version): Nvidia RTX PRO 1000 Blackwell

SSD 1 type: SSD

SSD: 1 TB

SSD size (total): 1024 GB

Hard drive: 0 GB

HDD capacity (total): 0 GB

Fingerprint: Yes

Microphone: Yes

Webcam: Yes

Bluetooth: 5.4

Keyboard layout: German, QWERTZ

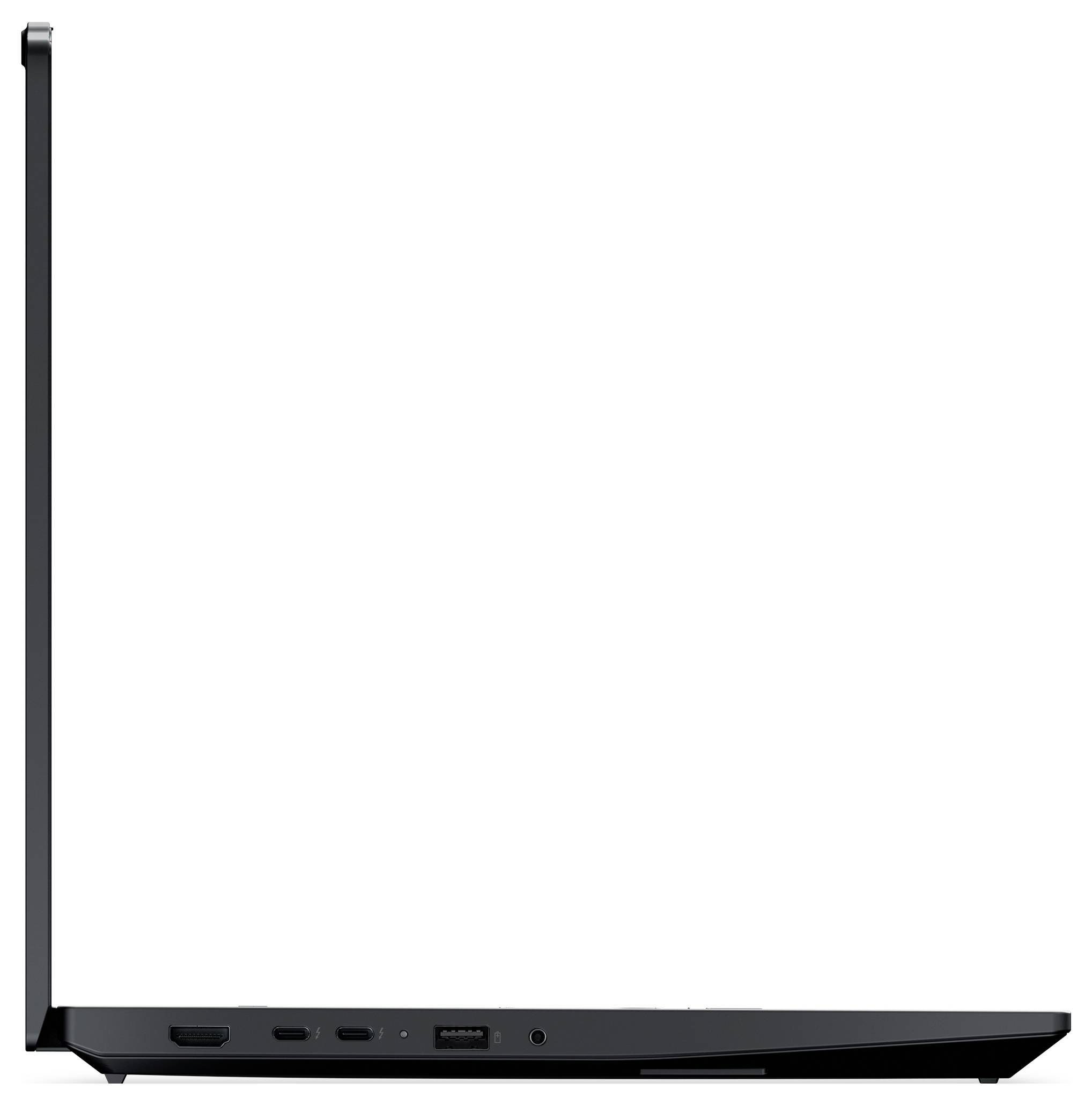

No. of HDMI ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

Factory colour: Black

Width: 357.9 mm

Depth: 247.9 mm

Weight: 1.79 kg

Software included: Lenovo AI now

Operating system (Version): Windows® 11 Pro

Screen size diagonal (inches): 16 inch

CPU clock rate: 16 x 1.5 GHz / max. 4.7 GHz

Charging capacity (min.): 15 W

Charging capacity (max.): 140 W

Display: 40.6 cm (16 inch)

Rechargeable battery technology: Li-ion

Bluetooth: Yes

Image format: 16:10

Frame rate: 60 Hz

Front camera resolution: 5 MP

Touchscreen (display): Yes

Charging method (Power Delivery): with USB Power Delivery

USB-C charging port: yes

Material (details): Polycarbonate (PC), Acrylonitrile Styrene Acrylic (ASA)

Memory capacity: 1 TB

NFC (Near field communication): No

10/100/1000 Mbps ports: 1 x

Brightness: 500 cd/m²

UKCA: yes

Numeric keypad: yes

Anti-glare screen: yes

Operating temperature (T-T): 5 - 35 °C

Keyboard backlit: yes

Ethernet LAN: yes

Cable lock slot: yes

Storage relative humidity (H-H): 5 - 95 %

USB Sleep-and-Charge: yes

USB Sleep-and-Charge ports: 1

Colour gamut: 100 %

Password protection: yes

Speaker power: 2 W

Number of built-in speakers: 2

Mobile network connection: no

Smart card reader: no

NVMe: yes

USB Type-C DisplayPort Alternate Mode: yes

Card reader integrated: no

Privacy camera: yes

Infrared (IR) camera: yes

Trusted Platform Module (TPM): yes

Windows Hello: yes

Thunderbolt 4 ports quantity: 2

Intel® Thunderbolt 4: yes

Efficient cores: 8

Performance cores: 4

Processor base power: 25 W

Maximum turbo power: 80 W

Performance-core base frequency: 1.9 GHz

Ray tracing acceleration: yes

Efficient-core Max Turbo Frequency: 3.5 GHz

Performance-core Max Turbo Frequency: 4.7 GHz

Sparsity support: yes

Windows Studio effects support: yes

NPU performance up to: 50 Tera-Vorgänge pro Sekunde

Low Power Efficient-cores: 4

Low Power Efficient-core Max Turbo Frequency: 3.3 GHz

Low Power Efficient-core Base Frequency: 1500 MHz

Copilot key: yes

GPU performance up to: 40 Tera-Vorgänge pro Sekunde

: yes

Fast charging: yes

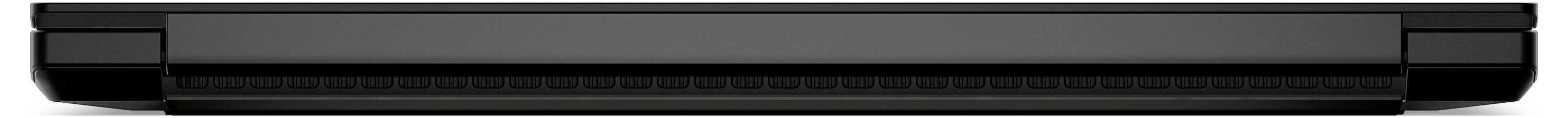

Height (front): 1.15 cm

Height (rear): 1.81 cm

LED backlight: yes

Operating relative humidity (H-H): 8 - 95 %

Number of microphones: 2

Storage temperature (T-T): 5 - 43 °C

Number of SSDs installed: 1

Maximum shipping altitude: 3048 m

Spill-resistant keyboard: yes

Battery capacity: 90 Wh

AC adapter power: 100 W

Combo headphone/mic port: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3815067 Lenovo Laptop workstation 40.6 cm (16 inch) WUXGA 356H 8 GB RAM 1 TB SSD German, QWERTZ Intel Intel graphics Nvidia RTX

Description

RELIABILITY SCALABILITY. PERFORMANCE.
Mobility for mission-critical workloads

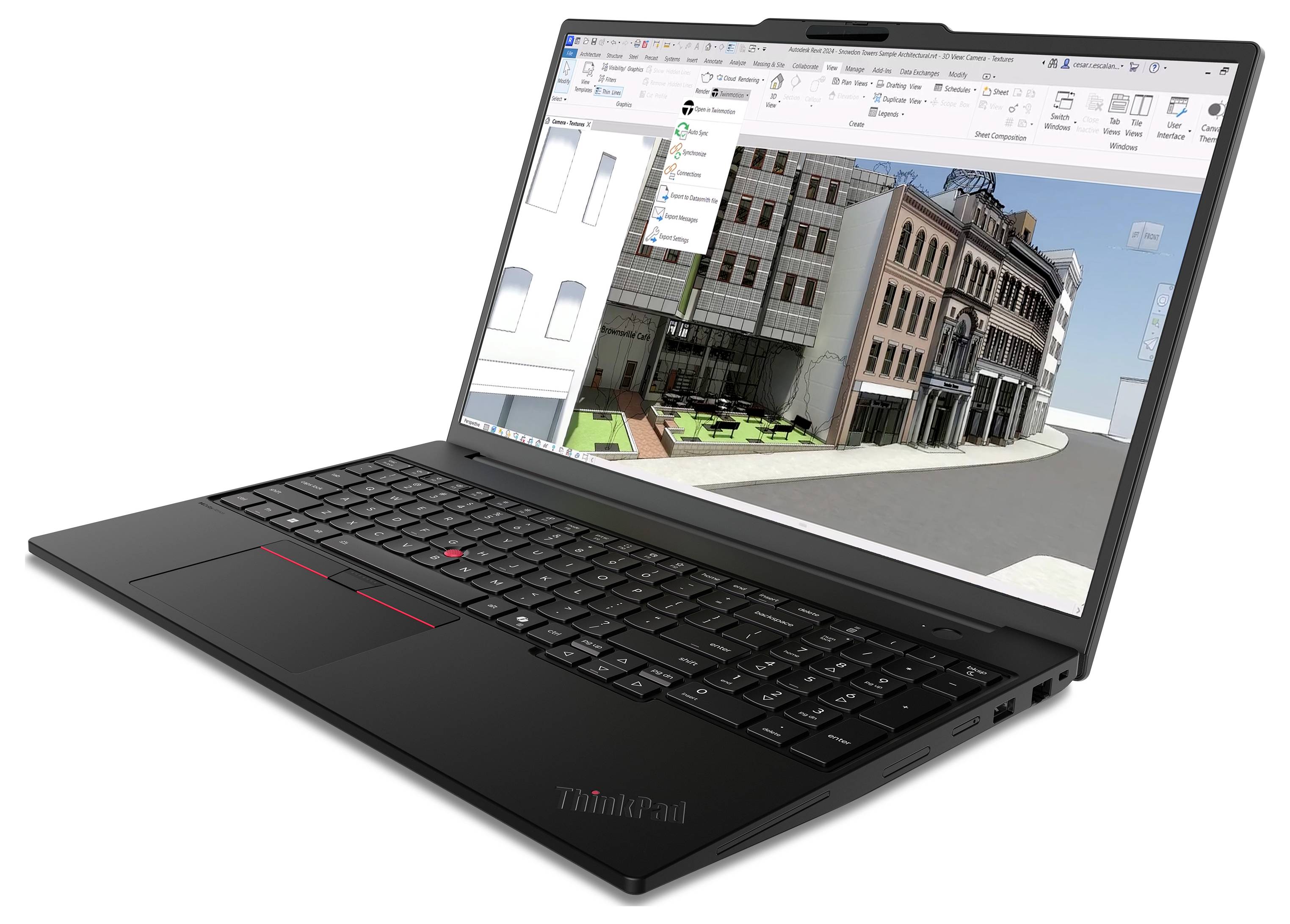

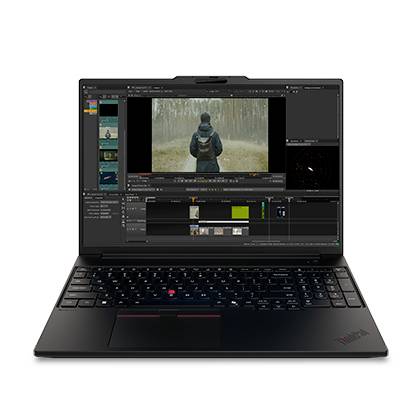

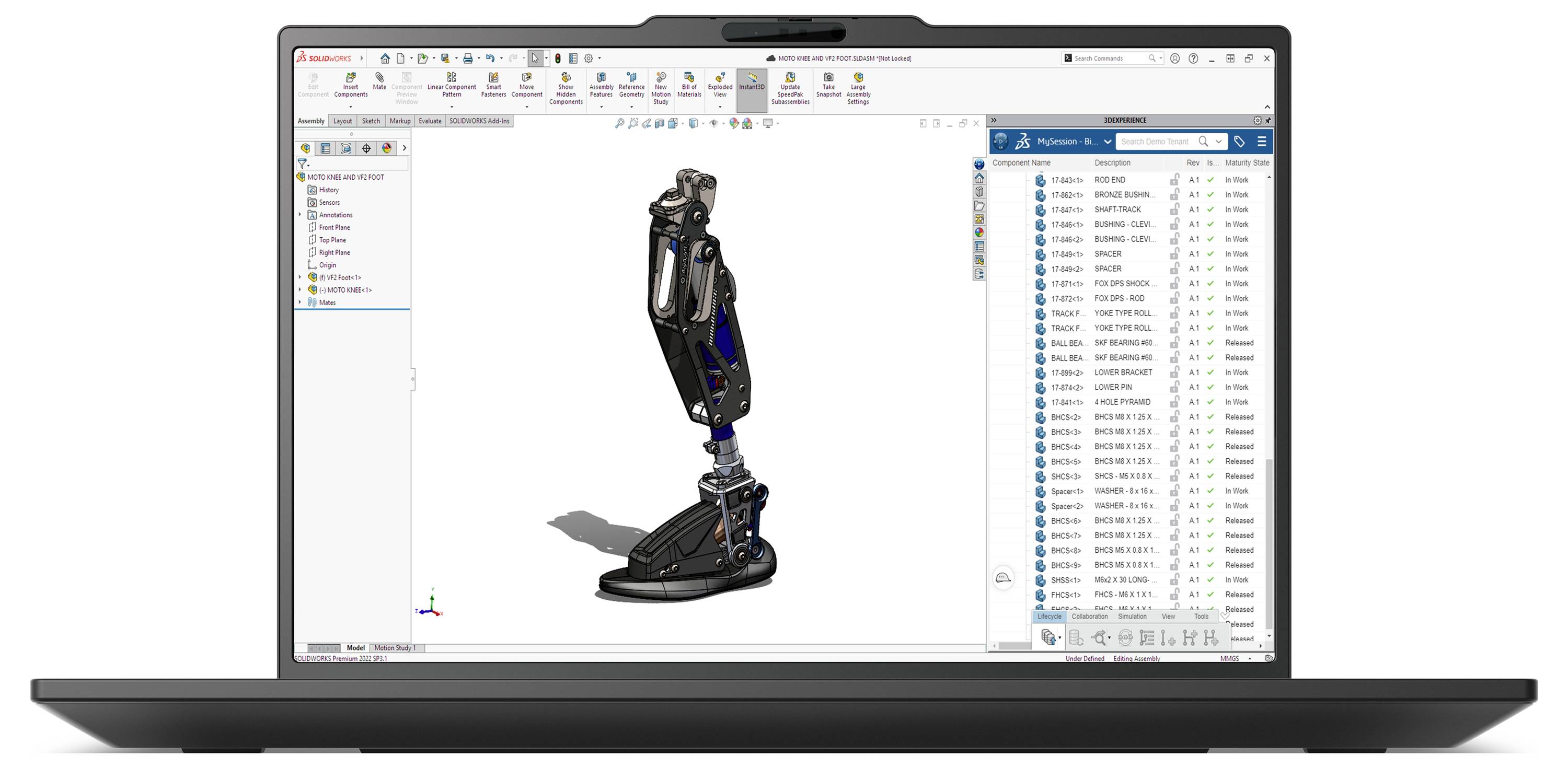

Designed for professional users, the 16" Lenovo ThinkPad P16s i Gen 5 mobile workstation offers reliability and scalability on the go. Featuring Intel® Core™ Ultra 3 Series processors, it is accelerated by the Nvidia RTX PRO™ platform and delivers exceptional performance for CAD, BIM, and content creation workflows in a lightweight, future-oriented design.

AI ON THE DEVICE WITH COPILOT+ SUPPORT
Ready for AI-based productivity

With an integrated neural processing unit (NPU) and full Copilot+ support, the ThinkPad P16s i Gen 5 transforms your way of working. Automate routine tasks, accelerate workflows, and do more without being cloud dependent. With this innovative workstation you can work smarter, faster and more independent.

Your work, your data – protected at every level
Enterprise-level security for a reassuring feeling

This workstation is equipped with ThinkShield security, Intel vPro®, a data protection-oriented infrared (IR) camera, Smart card reader options, physical locks, a discrete Trusted Platform Module (dTPM) 2.0, advanced presence detection, WiFi 7 and optional 5G for secure connectivity. Stay protected from cyber threats, data abuse, and tampering.

SIMPLIFIED MAINTENANCE AND ADAPTABILITY
More maintenance-friendly than ever before

The ThinkPad P16s i Gen 5 mobile workstation is durable and features customer-replaceable memory, battery, storage, keyboard, WWAN and USB-C® ports. They simplify maintenance, reduce costs, and extend the life of every device or your entire fleet without compromising performance.

CREDIBILITY AND COOPERATION
Future-oriented orientation

Our goal is to offer smarter technologies that will create a better and future-proof future for our customers, communities and the planet. That's why we strive for industry-leading labels and certifications that demonstrate our commitment and our future-oriented standards in product design. Together we can create a smarter future for all.

This text is machine translated.
