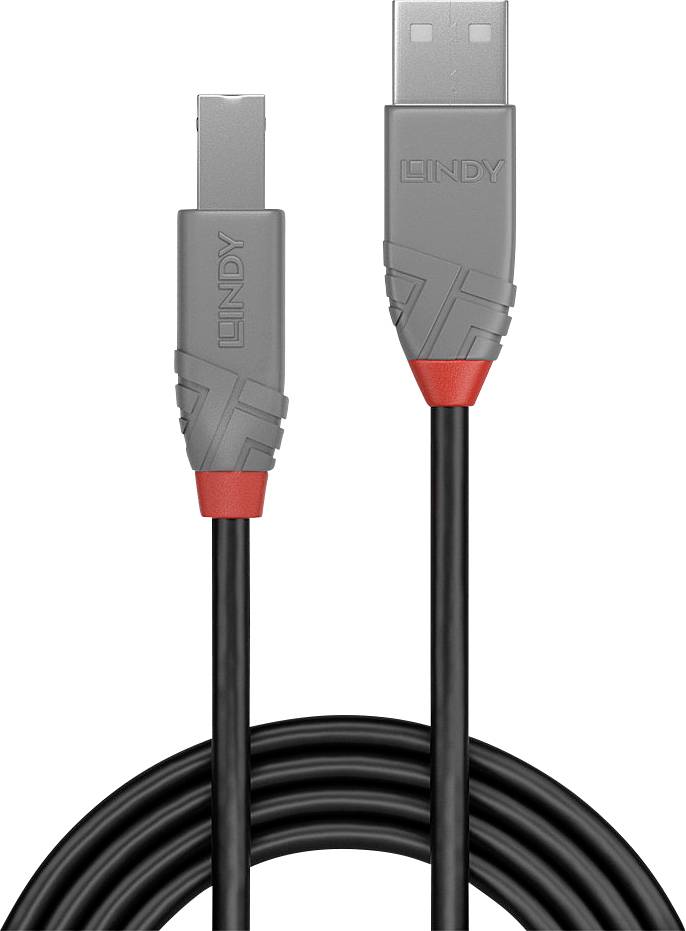

Name: LINDY USB cable USB 2.0 USB-A plug, USB-B plug 3.00 m Black 36674
Brand: LINDY
SKU: 2361105
Availability: InStock

Highlights & Details

Lindy 3M USB 2.0 type A to B cable, Anthra Line

Professional USB 2.0 type A connector on B plug cable for high-performance commercial AV and IT applications
Supports data rates of up to 480 Mbit/s
Robust PVC housing with gold-plated contacts and nickel-plated plug
2-way shielded cable with corrosion-resistant, tin-plated copper conductor
USB 2.0, 480 Mbit/s

Technical specifications

Product type: USB cable

Cable specs: USB 2.0

Version: Cable

Connection type: USB-A to USB-B

Connections: USB-A plug
USB-B plug

Factory colour: Black

Cable length: 3.00 m

: 26/28

Connection type: USB

Type A: USB 2.0 connector A

Type B: USB 2.0 connector B

No. of A connectors: 1 x

No. of B connections: 1 x

Cable use: PC

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2361105 LINDY USB cable USB 2.0 USB-A plug, USB-B plug 3.00 m Black 36674

Warranty Terms

Warranty Terms 2361105 LINDY USB cable USB 2.0 USB-A plug, USB-B plug 3.00 m Black 36674

Description

Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 2.0 type A connector on B plug from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.

The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and nickel-plated plug-in sleeves.

Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.

This text is machine translated.

Features

Connector A: USB 2.0 plug type A
Connector B: USB 2.0 connector type B
Housing material: PVC
Coating of connector: Nickel
Pin Design: copper
Coating of the Pins: Gold.
Standard: USB 2.0
Colour: Black
Type: round
Sheath diameter: 4.4mm (0.17 in)
Sheath material: PVC
Conductor material: tin-plated copper
Conductor dimensions: 26/28 AWG
Shielding: aluminum magnesium braid
Supported Tape width: 480 Mbit/s
Nominal Attenuation: 7.5m: 0.5-400 MHz< 8.11 db
Minimum bend radius: 16 mm (0.63 in)
Operating temperature: 0°C - 60°C (32°F - 140°F)
Storage temperature: 0 °C - 60°C (32°F - 140°F)

Description

Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 2.0 type A connector on B plug from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.

The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and nickel-plated plug-in sleeves.

Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.

This text is machine translated.
