Name: LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-B plug 1.00 m Black 36741
Brand: LINDY
SKU: 1848246
Availability: InStock

Highlights & Details

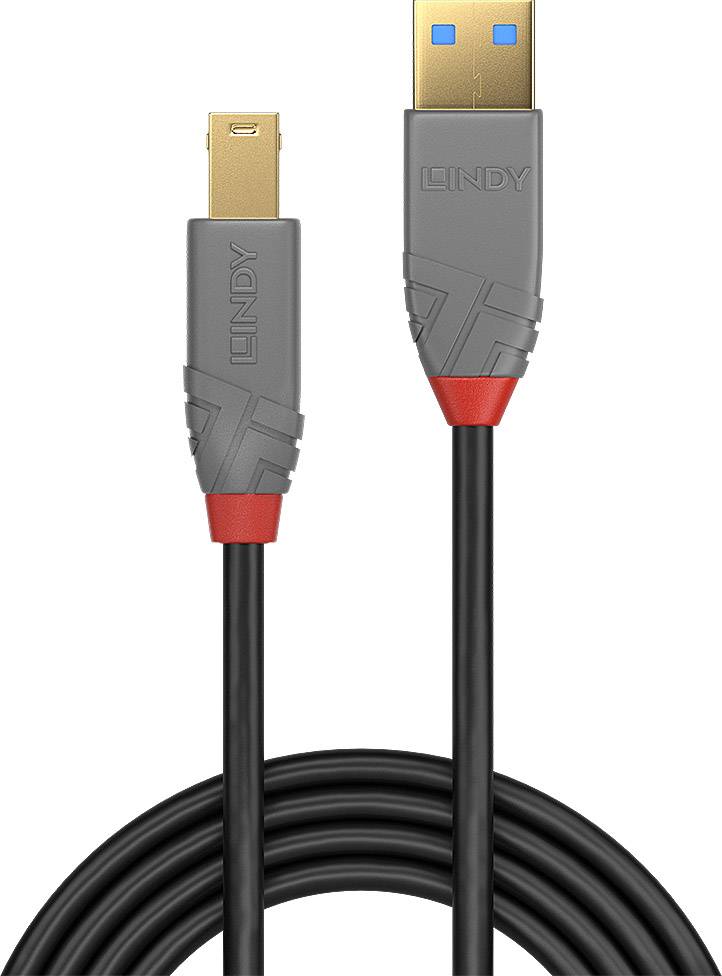

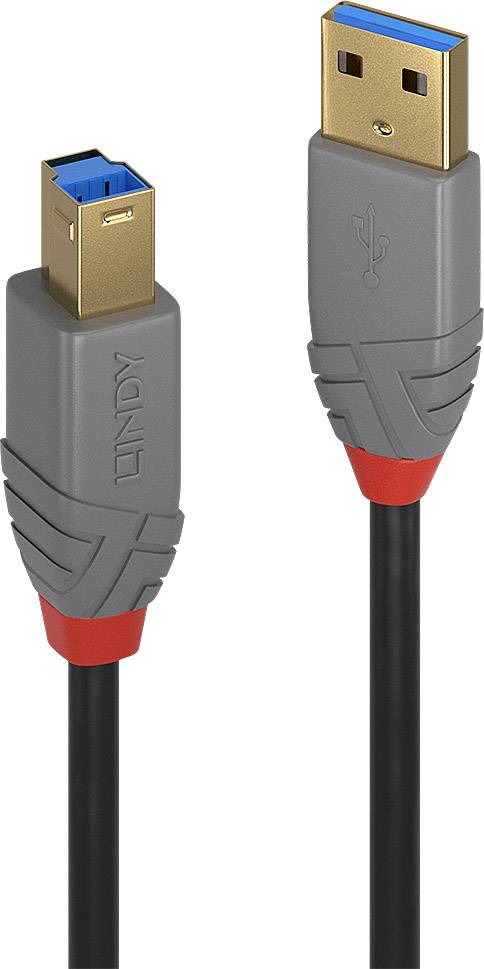

Lindy 1m USB 3.0 type A to B cable, Anthra Line

Professional USB 3.0 type A connector on B plug cable for high-performance commercial AV and IT applications
Supports data rates of up to 5 Gbit/s
Robust PVC housing with gold-plated contacts and plug-in sleeves
2-way shielded cable with corrosion-resistant, tin-plated copper conductor
Super-speed, USB 3.0, 5 Gbit/s

Technical specifications

Product type: USB cable

Cable specs: USB 3.2 1st Gen

Version: Cable

Connection type: USB-A to USB-B

Connections: USB-A plug
USB-B plug

Factory colour: Black

Cable length: 1.00 m

Connection type: USB

Type A: USB 3.2 1st Gen connector A (USB 3.0)

Type B: USB 3.2 1st Gen connector B (USB 3.0)

No. of A connectors: 1 x

No. of B connections: 1 x

Cable use: USB 3.2 1st Gen (USB 3.0)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1848246 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-B plug 1.00 m Black 36741

User & Safety Instructions

User & Safety Instructions 1848246 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-B plug 1.00 m Black 36741

Warranty Terms

Warranty Terms 1848246 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-B plug 1.00 m Black 36741

Description

Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 3.0 type A connector on B plug cable from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.

The Anthra Line USB 3.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.

Datenubertragungsgeschwindgkeiten of up to 5 Gbit/s enables a quick and smooth transfer large data volume.

This text is machine translated.

Features

Connector A: USB 3.0 plug type A
Connector B: USB 3.0 connector type B
Housing material: PVC
Coating of connector: Gold.
Pin Design: copper
Coating of the Pins: Gold.
Standard: USB 3.0
Colour: Black
Type: round
Sheath diameter: 5.5mm (0.22 in)
Sheath material: PVC
Conductor material: tin-plated copper
Conductor dimensions: 24/28/30 AWG
Shielding: aluminum braid 85%
Supported Tape width: 5 Gbit/s
Nominal Attenuation: 0.5MHz-7.5 GHz< 25 DB
Minimum bend radius: 48 mm (1.01 in)
Operating temperature: 0°C - 60°C (32°F - 140°F)
Storage temperature: 0 °C - 60°C (32°F - 140°F)

Description

Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 3.0 type A connector on B plug cable from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.

The Anthra Line USB 3.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.

Datenubertragungsgeschwindgkeiten of up to 5 Gbit/s enables a quick and smooth transfer large data volume.

This text is machine translated.
