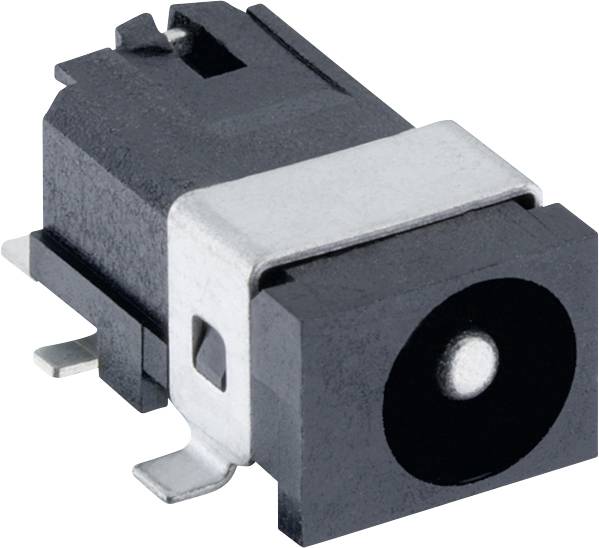

Lumberg 1613 24 VP3 Low power connector Connector, mount 1.6 mm 1 pc(s)
Part number:
Item no:
Product type
Low power connector
Connector type
Connector, mount
Nominal current - rounded value
2 A
Pin Ø
1.6 mm
Nominal voltage
6.3 V DC
Datasheet (PDF)
Number
Total (€ 2.79 / piece)
€ 2.79
incl. VAT
14-day return policy included
Highlights & Details
POWER SUPPLY-Connecter
- 1.6 mm
Technical specifications
- Insertion force 5–20 N
- Pulling force 5–20 N
- Continuous resistance ≤ 30 mΩ
- Mating cycles ≥ 5000
- Contact holder PA
- Rated surge voltage 500 V/60 s.
- Contact: CuZn, silver-plated/tin-plated
- Product type
Low power connector
- Nominal current
2 A
- Connector type
Connector, mount
- Nominal current - rounded value
2 A
- Pin Ø
1.6 mm
- Nominal voltage
6.3 V DC
- Content
1 pc(s)
- Manufacturer part #
116752
- Type
1613 24 VP3
- Pins
2
- Temperature range
-20 °C - +70 °C
- Hole Ø
4.4 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805158 Lumberg 1613 24 VP3 Low power connector Connector, mount 1.6 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805158 Lumberg 1613 24 VP3 Low power connector Connector, mount 1.6 mm 1 pc(s)
Description
Network equipment - Installation clutch
For 4.0 mm x 1.7 mm plug, according to JEIAJ RC-5320A type 2 JSAJ21, angled design, with opener, for PCBs, Surface-Mount Technology (SMT)
This text is machine translated.
For 4.0 mm x 1.7 mm plug, according to JEIAJ RC-5320A type 2 JSAJ21, angled design, with opener, for PCBs, Surface-Mount Technology (SMT)
This text is machine translated.
