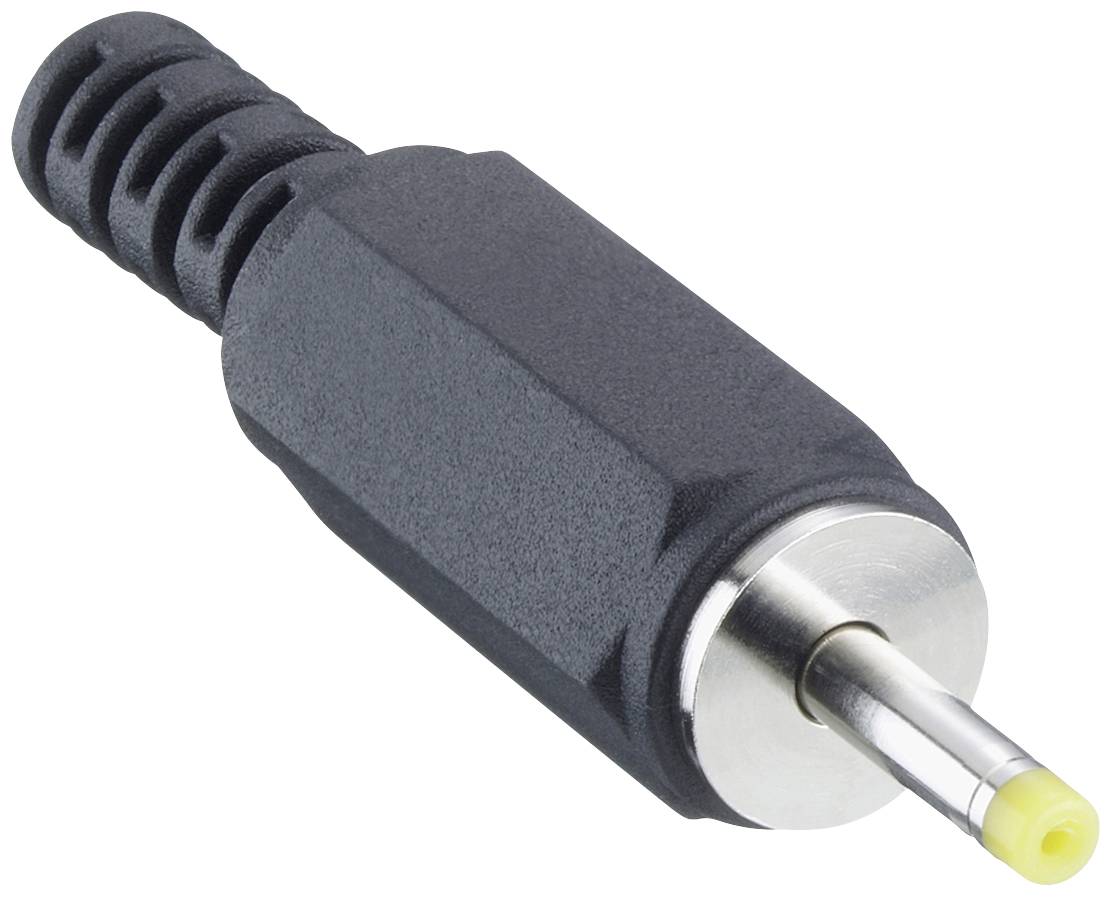

Image similar
Lumberg 1636 08 Low power connector 1 pc(s)
Product type
Low power connector
Nominal current - rounded value
2 A
Connection
Solder pad
Nominal voltage
24 V
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2.29 / piece)
€ 2.29
incl. VAT
14-day return policy included
Highlights & Details
Low volt plug connector 1636 08
Our service for you
Technical specifications
- Pins: 2
- Temperature range --20°C/+70°C
- Contact holder PBT
- Mating cycles 5000
- Insertion force 4.9–24.5 N
- Pulling force 2.9–19.6 N
- Constant resistance 30 mΩ
- Rated current 2 A
- Rated voltage: 24 V
- Rated surge voltage 500 V/60 s.
- Contact: CuZn/CuSn, nickel plated
- Housing TPR
- Outer diameter: 2.35 mm
- Interior diameter 0.7 mm
- cable diameter 4 mm
- Product type
Low power connector
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connection
Solder pad
- Nominal voltage
24 V
- Content
1 pc(s)
- Manufacturer part #
1636 08
- Type
1636 08
- Pins
2
- RoHS-compliant
Yes
- Cable Ø (max.)
4 mm
- Contact material
CuZn/CuSn, Ni-plated
- Case material
Thermoplastic
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3208118 Lumberg 1636 08 Low power connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208118 Lumberg 1636 08 Low power connector 1 pc(s)
Description
Power supply plug according to JEITA RC-5320A JSAP1, straight design, with solder pads and anti-kink protection
This text is machine translated.
This text is machine translated.
