Lutronic 1030 Sensor/actuator connector (pre-fab) M8 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)

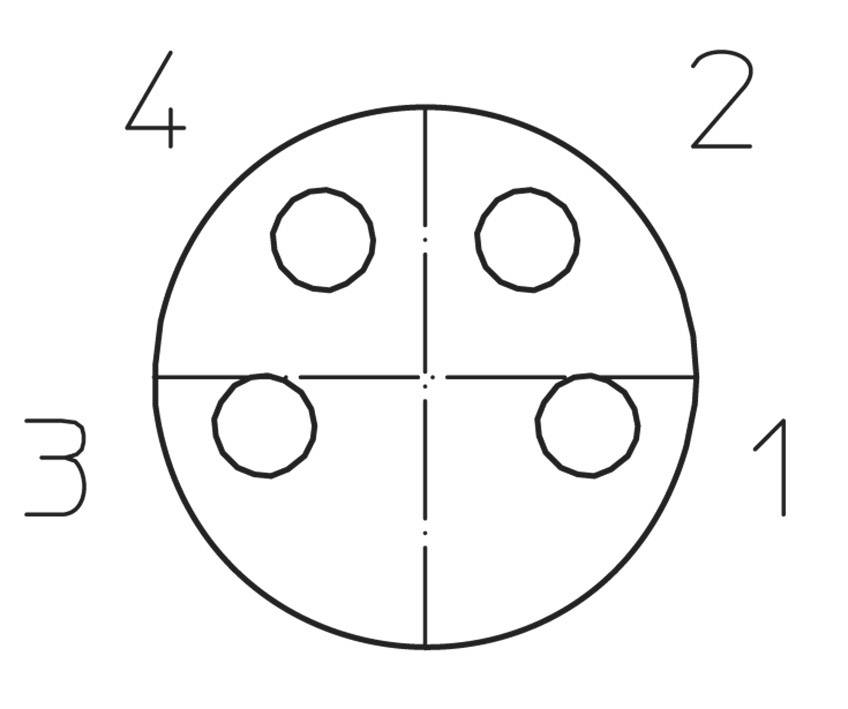

Pie chart with four equal-sized sections, numbered from 1 to 4 clockwise. Each section contains a smaller circle.

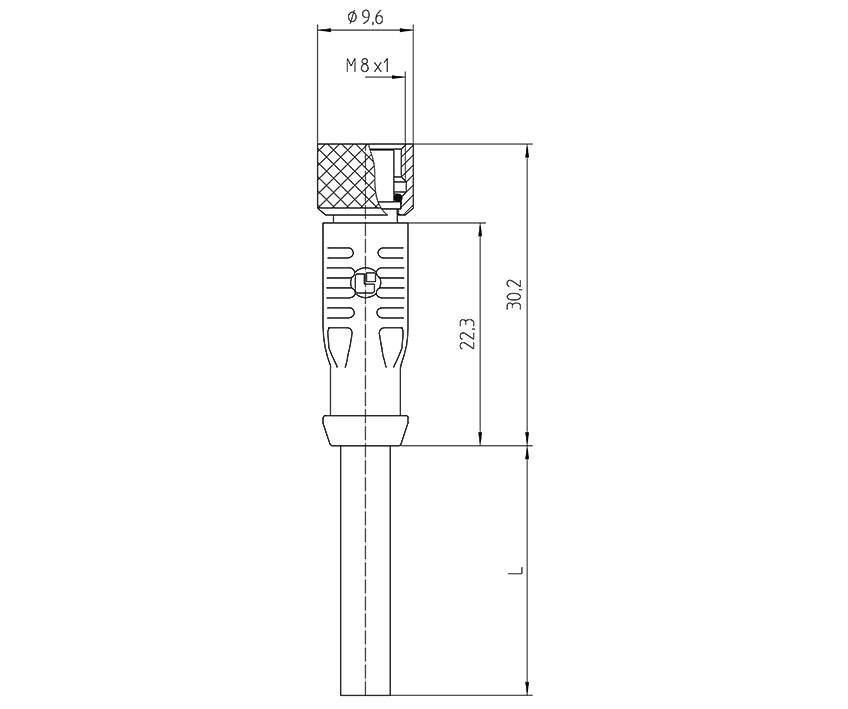

Technical drawing of a connector with precise dimensional specifications. Main dimensions: 9.6 mm diameter, 22.3 mm and 30.2 mm length.
A circle is divided into four equal sections, numbered from 1 to 4 clockwise. Each section contains a small circle.
1/3
Stroke drawing/circuit diagram
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, straight
Connector standard
Sensor connector
Connection side A
M8 socket, straight
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 9.99 / piece)
€ 9.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Type

0800 04 301 2m

Product type

Sensor/actuator connector (pre-fab)

Connector type

Connector, straight

Connector standard

Sensor connector

Connection side A

M8 socket, straight

Connection side B

Cable, open end

No. of pins

4

Cable length

2.00 m

Jacket material

PUR

Nominal voltage

60 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

9.6 mm

Factory colour

Black

Thread type connection side

M8

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

TPU

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1030

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910579 Lutronic 1030 Sensor/actuator connector (pre-fab) M8 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
