Lutronic 1049 Sensor/actuator connector (pre-fab) M8 Connector, right angle 2.00 m No. of pins (RJ): 4 1 pc(s)

A circle is divided into four sections, numbered from 1 to 4. Each section contains a smaller, evenly distributed circle.

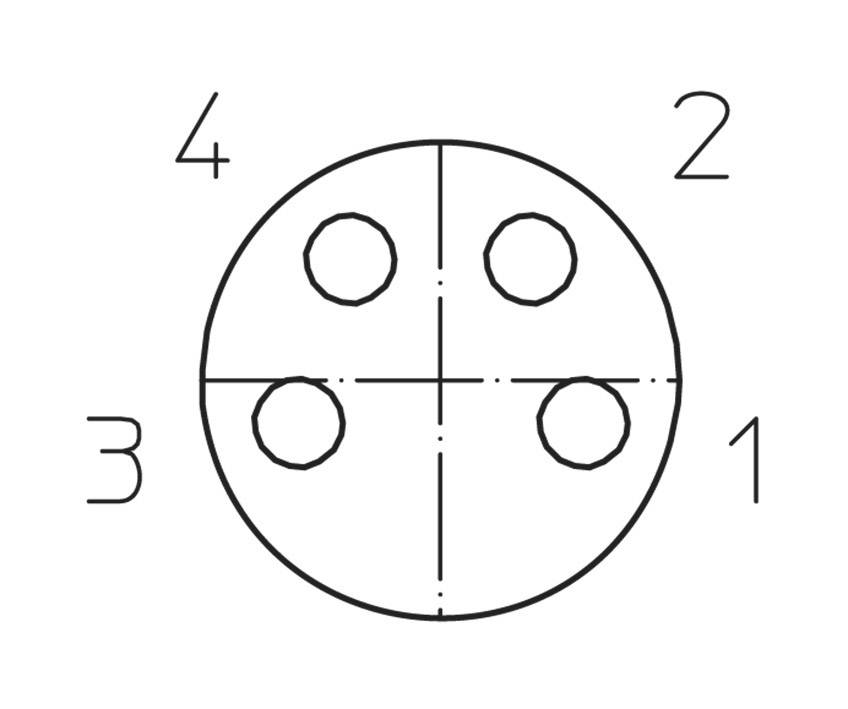

Diagram of a circle with four sectors, numbered from 1 to 4. Each sector contains a small circle.

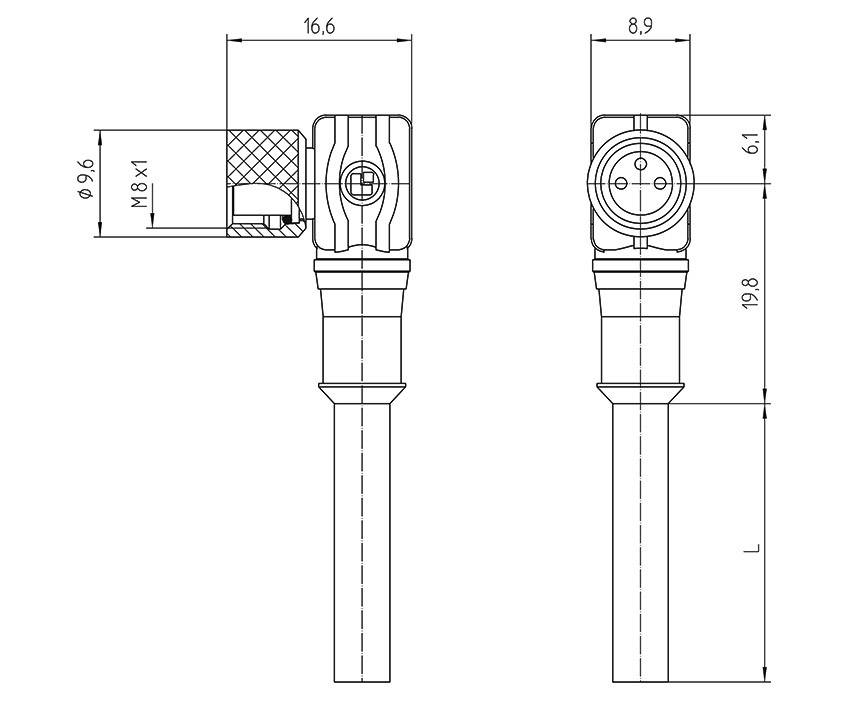

Technical drawing of an angled plug with dimensions in millimetres. Front and side views are shown.
1/3
Stroke drawing/circuit diagram
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, right angle
Connector standard
Sensor connector
Connection side A
M8 socket, right angle
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
9 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.99 / piece)
€ 6.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 9 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Type

0805 04 002 2m

Product type

Sensor/actuator connector (pre-fab)

Connector type

Connector, right angle

Connector standard

Sensor connector

Connection side A

M8 socket, right angle

Connection side B

Cable, open end

No. of pins

4

Cable length

2.00 m

Jacket material

PVC

Nominal voltage

60 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

9.6 mm

Factory colour

Black

Thread type connection side

M8

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

PVC

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1049

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910580 Lutronic 1049 Sensor/actuator connector (pre-fab) M8 Connector, right angle 2.00 m No. of pins (RJ): 4 1 pc(s)
