Lutronic 1054 Sensor/actuator connector (pre-fab) M8 Plug, straight 2.00 m No. of pins (RJ): 4 1 pc(s)

Technical drawing of a connector with the dimensions: Diameter 10 mm, overall length 40.7 mm. Marked for M8 thread.

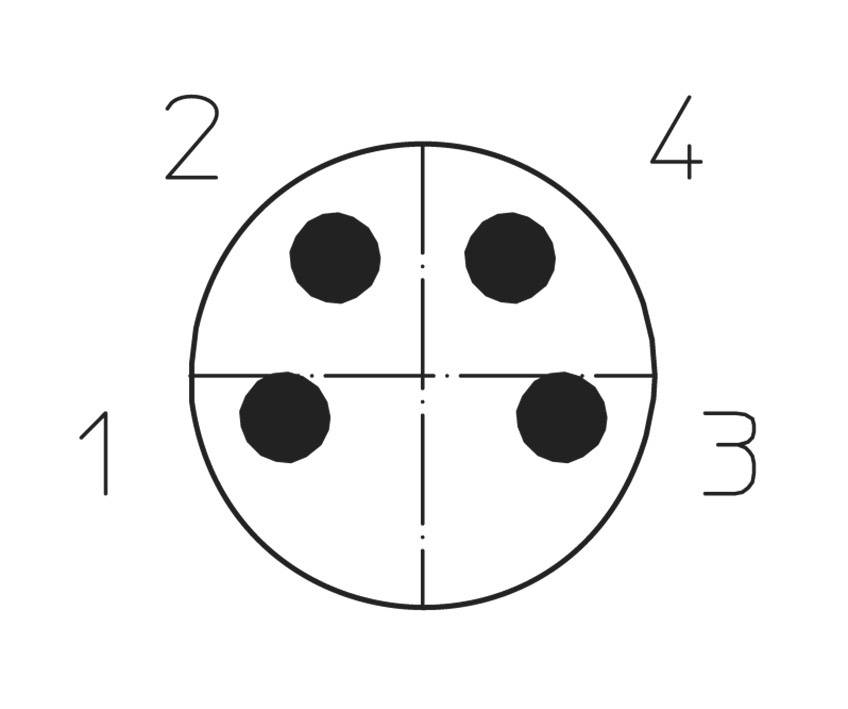

Diagram of a circle, divided into four equal segments, each with a black dot, numbered 1 to 4.

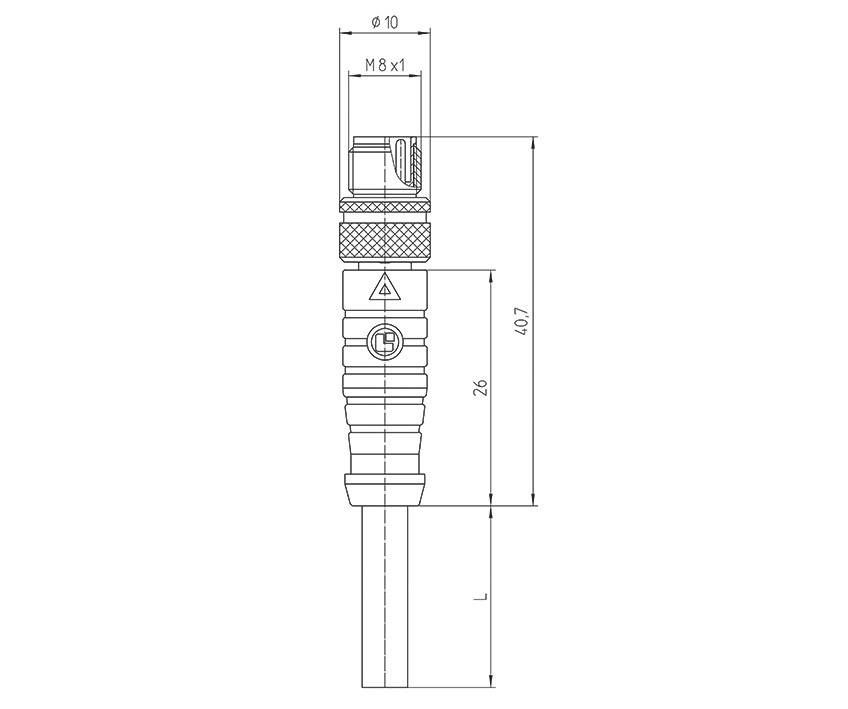

Technical drawing of a connector with M8 thread. Shows dimensions: total length 40.7 mm, plug length 26 mm, diameter 10 mm.
1/3
Stroke drawing/circuit diagram
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.49 / piece)
€ 8.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

0810 04 002 2m

Product type

Sensor/actuator connector (pre-fab)

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

Cable, open end

No. of pins

4

Cable length

2.00 m

Jacket material

PVC

Nominal voltage

60 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

10 mm

Factory colour

Black

Thread type connection side

M8

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

PVC

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1054

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910555 Lutronic 1054 Sensor/actuator connector (pre-fab) M8 Plug, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
